ออดิโออินเตอร์เฟส Zoom UAC8 USB 3.0 Audio Interface
ออดิโออินเตอร์เฟส Zoom UAC2 18-in, 20-out USB 3.0 audio interface, Extremely low latency audio, MIDI I/O lets you use MIDI control surfaces and sequence external hardware, UAC-8 MixEfx application allows you to add reverb or delay effects to inputs and outputs
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿29,000.00 ฿23,200.00
Description
Zoom UAC8 USB 3.0 Audio Interface
ออดิโออินเตอร์เฟส Zoom UAC2 18-in, 20-out USB 3.0 audio interface, Extremely low latency audio, MIDI I/O lets you use MIDI control surfaces and sequence external hardware, UAC-8 MixEfx application allows you to add reverb or delay effects to inputs and outputs

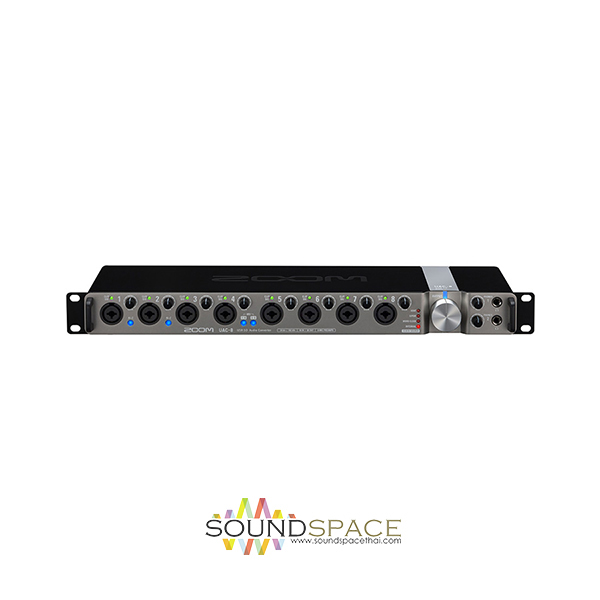

The UAC-8 from Zoom is an 18×20 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features eight XLR/TRS combo inputs with microphone preamps and ten balanced 1/4″ outputs. Phantom power is available for use with condenser microphones. The UAC-8 also offers a full complement of digital I/O, including ADAT, S/PDIF, and word clock. Additionally, inputs 1 and 2 offer a Hi-Z instrument input for guitars and bass. The two headphone outputs have dedicated volume controls and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The UAC-8 ships with a power supply, USB 3.0 cable, and a Steinberg Cubase LE software license card.
Features:
- 18-in, 20-out USB 3.0 audio interface
- Extremely low latency audio
- MIDI I/O lets you use MIDI control surfaces and sequence external hardware
- UAC-8 MixEfx application allows you to add reverb or delay effects to inputs and outputs
- Phantom power to run your favorite condenser mics
- Eight XLR/TRS combo input jacks for mic and line sources, enough for your whole band
- LED meters to monitor your input and output levels
- All-metal design is ready for reliable use in the field
Specifications
| Channels of I/O | 18 Inputs / 20 Outputs at 48 kHz 14 Inputs / 16 Outputs at 96 kHz 12 Inputs / 14 Outputs at 192 kHz |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Host Connection | USB Type-B (USB 3.0) |
| Analog I/O | 8 x Combo XLR / 1/4″ TRS Input 2 x 1/4″ (6.3 mm) TRS Hi-Z Input 8 x 1/4″ (6.3 mm) TRS Balanced Line Output 2 x 1/4″ (6.3 mm) TRS Balanced Monitor Output 2 x 1/4″ (6.3 mm) TRS Headphone Output |
| Phantom Power | +48 V |
| Digital I/O | None |
| MIDI I/O | 1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out |
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-1 dB (at 96 kHz) 20 Hz to 60 kHz +0/-1 dB (at 192 kHz) |
| Gain Range | Inputs: 0 to 60 dB |
| Max Input Level | Line Inputs: +21 dBu (at 0 dBFS) Mic Inputs: +13 dBu (at 0 dBFS) |
| Max Output Level | Headphone Outputs: +10 dBu at 0 dBFS Line Outputs: +14 dBu at 0 dBFS |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Dynamic Range | A/D Converters: 118 dBA D/A Converters: 120 dBA |
| Impedance | Headphone Outputs: 33 Ohms Hi-Z Inputs: 1 MOhm Mic/Line Inputs: 5 kOhm Outputs: 150 Ohms Word Clock: 75 Ohms |
| SNR | 125 dB |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| Bit Depth | 24-Bit |
| AC/DC Power Adapter | 12 VDC at 2 A (Included) |
| Dimensions | 6.2 x 19 x 1.8″ / 15.8 x 48.3 x 4.6 cm |
| Weight | 4.9 lb / 2.2 kg |
