ออดิโออินเตอร์เฟส Zoom UAC2 USB 3.0 Audio Interface
ออดิโออินเตอร์เฟส Zoom UAC2 2 x 2 USB 3.0 Audio Interface 2 XLR/TRS Combo Mic/Line/Instrument Inputs, MIDI I/O, Headphone Output, 2 Line Outputs, and Effects, Phantom power to run your favorite condenser mics, Max Sample Rate/Resolution 192 kHz / 24-Bit
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿12,000.00 ฿9,600.00
Description

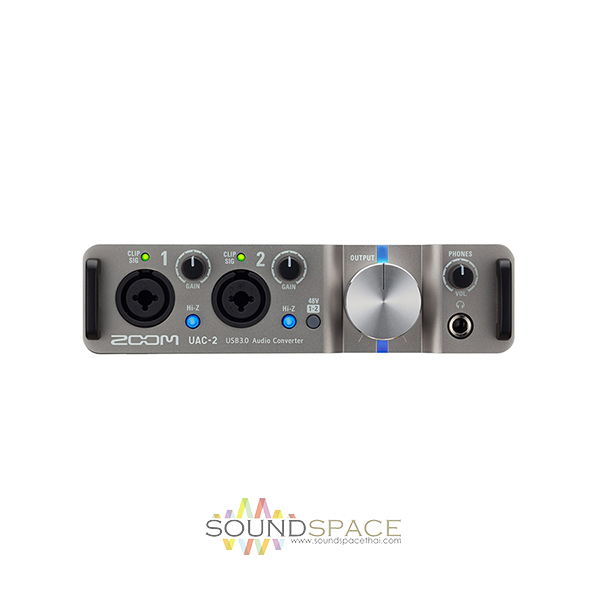

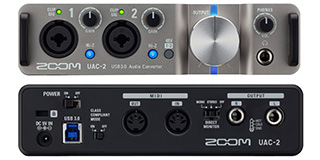

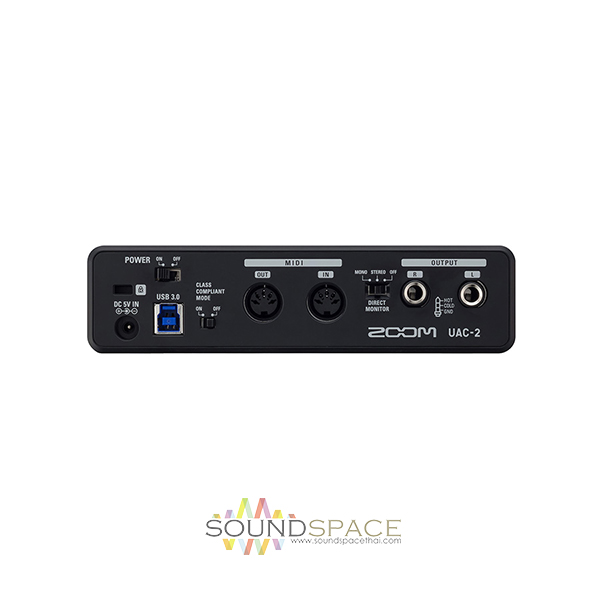

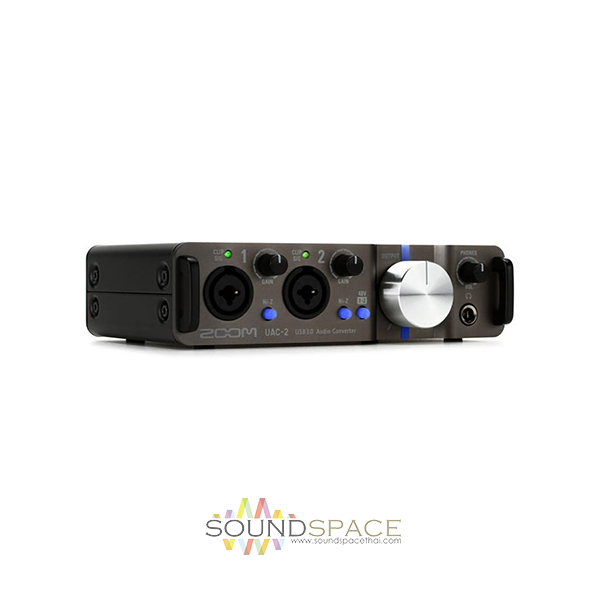

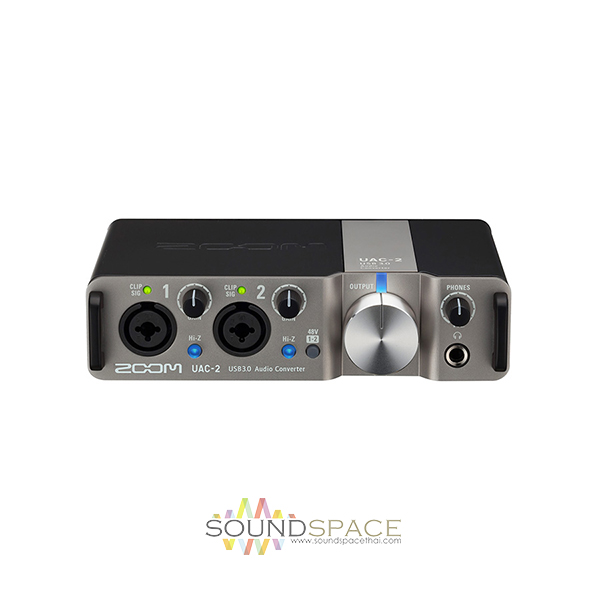

Zoom UAC2 Two-Channel USB 3.0 SuperSpeed Audio Interface for Mac and PC
ออดิโออินเตอร์เฟส Zoom UAC2 2 x 2 USB 3.0 Audio Interface 2 XLR/TRS Combo Mic/Line/Instrument Inputs, MIDI I/O, Headphone Output, 2 Line Outputs, and Effects, Phantom power to run your favorite condenser mics, Max Sample Rate/Resolution 192 kHz / 24-Bit
The UAC-2 from Zoom is a 2×2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features two XLR/TRS combo inputs with microphone preamps and two balanced 1/4″ outputs. Phantom power is available for use with condenser microphones. Additionally, input 1 and 2 offer a Hi-Z instrument input for guitars and bass. The headphone output has a dedicated volume control and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The interface is bus powered, but may be powered by the optional AD-14 power adapter. The UAC-2 ships with a USB 3.0 cable and a Steinberg Cubase LE software license card.
Features:
- 2-in, 2-out USB 3.0 audio interface
- Easy-to-use interface
- Extremely low latency audio
- MIDI I/O lets you use MIDI control surfaces and sequence external hardware
- UAC-2 MixEfx application allows you to add reverb or delay effects to inputs and outputs
- Phantom power to run your favorite condenser mics
- Dual XLR/TRS combo input jacks for mic and line sources
- LED meters to monitor your input and output levels
- Compact and lightweight design is easy to transport
- Bus powered directly from your computer
Specifications
| Channels of I/O | 2 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Host Connection | USB Type-B (USB 3.0) |
| Analog I/O | 2 x Combo XLR / 1/4″ TRS Balanced Mic/Line Input 2 x 1/4″ (6.3 mm) TRS Hi-Z Input 2 x 1/4″ (6.3 mm) TRS Balanced Monitor Output 1 x 1/4″ (6.3 mm) TRS Headphone Output |
| Phantom Power | +48 V |
| Digital I/O | None |
| MIDI I/O | 1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out |
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-1 dB (at 96 kHz) 20 Hz to 60 kHz +0/-1 dB (at 192 kHz) |
| Gain Range | Inputs: 0 to 60 dB |
| Max Input Level | Inputs: +12 dBu (at 0 dBFS) |
| Max Output Level | Headphone Outputs: +8 dBu at 0 dBFS Line Outputs: +14 dBu at 0 dBFS |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Dynamic Range | A/D Converters: 118 dBA D/A Converters: 120 dBA |
| Impedance | Headphone Outputs: 30 Ohms Hi-Z Inputs: 1 MOhm Mic/Line Inputs: 5 kOhm Outputs: 100 Ohms |
| SNR | 125 dB |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| Bit Depth | 24-Bit |
| Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
| Power Consumption | 5 W |
| Dimensions | 4.5 x 6.9 x 1.8″ / 11.4 x 17.6 x 4.6 cm |
| Weight | 1.6 lb / 0.8 kg |
