ออดิโออินเตอร์เฟส ZOOM U22 USB Mobile Handy Audio Interface
ออดิโออินเตอร์เฟส Zoom U-22, 2 Input / 2 Output, Single Microphone Preamp, Phantom Power, Connect to Laptop, iPhone, iPad, Headphone Output, Zero-Latency Monitoring, Up to 24-Bit / 96 kHz, USB Bus Powered, Optional Battery or AC Adapter Powering, Pro Tools | First with 21 AAX Plug-Ins
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿4,200.00 ฿3,360.00
Description
Zoom U-22 USB Mobile Recording and Performance Interface
ออดิโออินเตอร์เฟส Zoom U-22, 2 Input / 2 Output, Single Microphone Preamp, Phantom Power, Connect to Laptop, iPhone, iPad, Headphone Output, Zero-Latency Monitoring, Up to 24-Bit / 96 kHz, USB Bus Powered, Optional Battery or AC Adapter Powering, Pro Tools | First with 21 AAX Plug-Ins

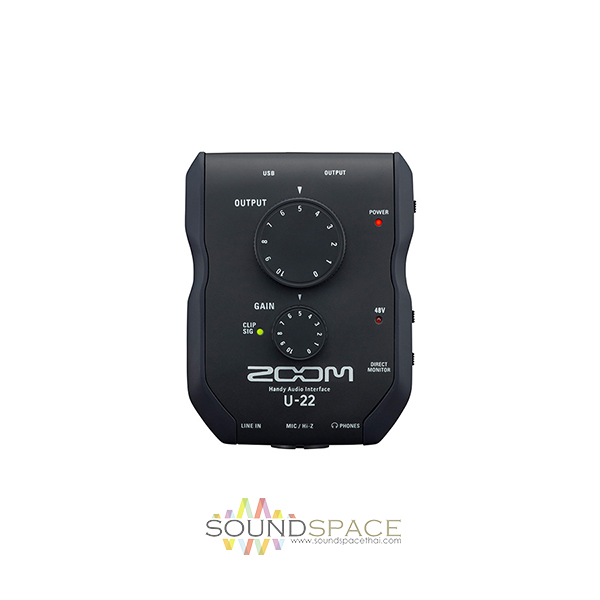

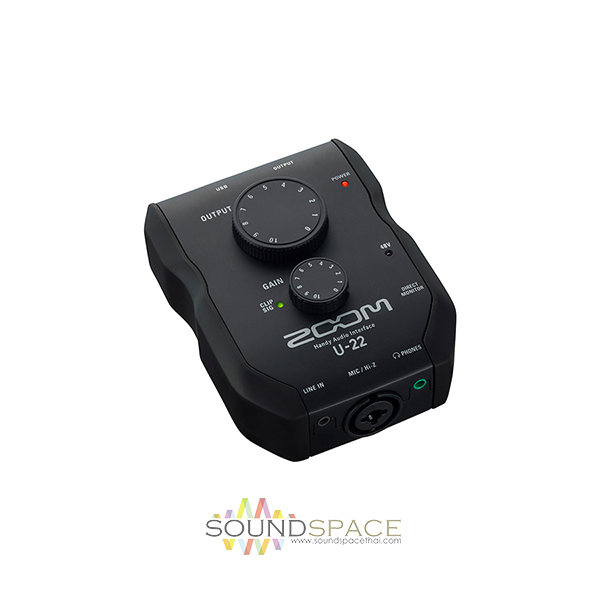

The U-22 from Zoom is a mobile USB 2.0 recording and performance interface, featuring two analog inputs and two analog outputs, in an ultra-portable housing that makes it easy to connect to a laptop or iPhone/iPad for on-the-go audio creation. A low-noise microphone preamp allows for recording vocals, instruments and more, with resolutions up to 24-bit / 96 kHz.
The XLR/TS combo input can record a microphone or line-level source, and provides 48V phantom power and Hi-Z support for connecting a guitar or bass. A mini stereo input is also available for recording an iPad, mixer, or other portable audio device. Only one recording input can be used at a time. When using the line input, the XLR/TS combo input is disabled.

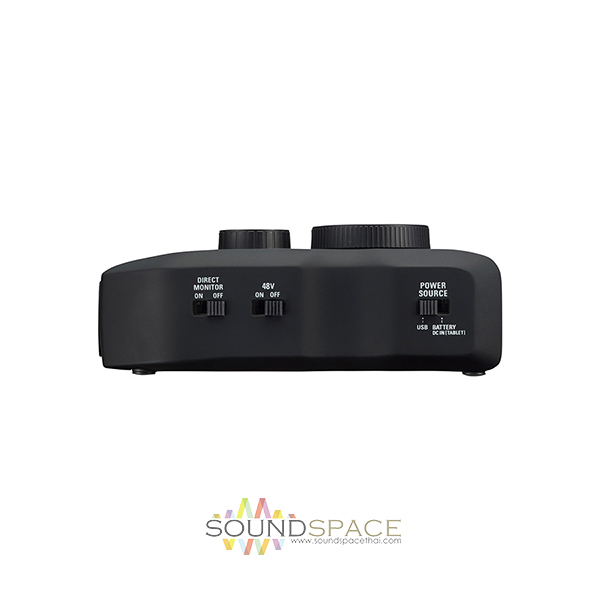

For zero-latency recording and mixing, a direct monitoring switch allows listening to the input signal before it passes through the computer. Separate RCA output jacks and an independent headphone output provide multiple options for monitoring.
Purchasers of the U-22 can register for a free download of a special version of Pro Tools | First, which contains a valuable collection of twenty-one AAX audio software plug-ins.
Features:
- 2-channel USB recording interface for Mac, Windows, and iPad (via Camera Connection Kit, sold separately)
- 2 XLR/TRS combo inputs feature the low-noise microphone preamps from the H6 (with phantom power)
- DI input lets you plug in your guitar or bass and record direct
- Record and play back high-quality audio at up to 24-bit/96kHz resolution
- 1/8″ stereo I/O for portable audio devices

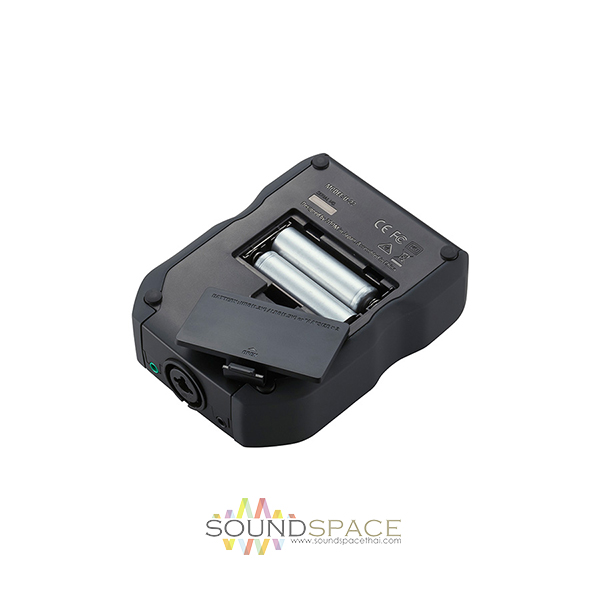

- Record for up to 4 hours on just 2 alkaline or NiMH rechargeable AA batteries
- Includes download code for Ableton Live 9 Lite
Specifications
| Channels of I/O | 2 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Host Connection | USB Type-B (USB 2.0) |

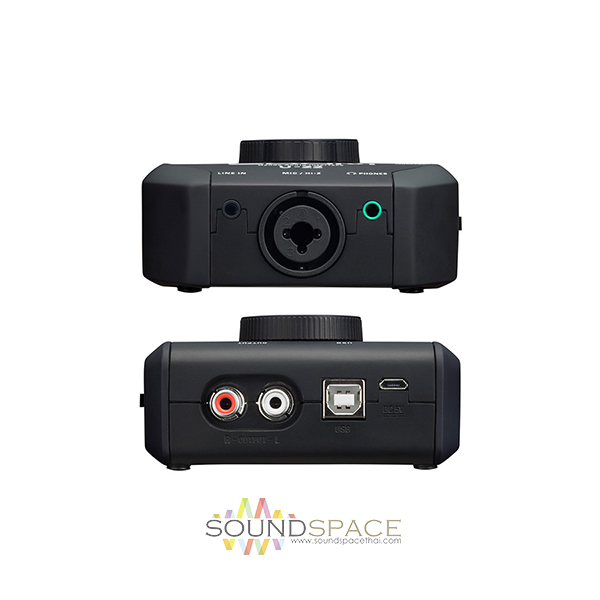

| Analog I/O | 1 x Combo XLR / 1/4″ Mic Input 1 x 1/8″ (3.5 mm) TRS Line Input 1 x Stereo RCA Output 1 x 1/8″ (3.5 mm) TRS Headphone Output |
| Phantom Power | +48 V |
| Digital I/O | None |
| MIDI I/O | None |
| Frequency Response | Interface: 20 Hz to 20 kHz ±1.5 dB (at 44.1 kHz) 20 Hz to 40 kHz ±2 dB (at 96 kHz) |
| Gain Range | 0 to 43 dB |
| Max Input Level | Mic Inputs: -0.8 dBu Hi-Z Inputs: +8.7 dBu Line Inputs: +1 dBu |
| Max Output Level | Outputs: -0.8 dBu at 0 dBFS |
| Headphone Output Power | 10 mW per Channel into 32 Ohms |
| Impedance | Headphone Outputs: 10 Ohms Mic Inputs: 2.6 kOhms Hi-Z Inputs: 484 kOhms Line Inputs: 22 kOhms Line Outputs: 1 kOhms |
| EIN | Inputs: -120 dBA |
| Sample Rates | 44.1, 48, 88.2, and 96 kHz |
| Bit Depth | 24-Bit |
| OS Compatibility | iOS 7.1 or Later macOS 10.9.5 or Later macOS 10.10 macOS 10.11 Windows 7 or Later Windows 8.1 Windows 10 iOS |
| Processor Requirement | Intel Core i3 |
| Required Hardware | Available USB 2.0 Port or USB 3.0 Port |
| Power Requirements | Battery, USB Bus-Power |
| Power Consumption | 5 W (Maximum) |
| Battery Type | 2 x AA |
| Expected Battery Life | 5 Hours |
| Dimensions | 3.6 x 4.7 x 1.8″ / 92 x 119 x 45 mm |
| Weight | 5.3 oz / 151.0 g |
