เครื่องบันทึกเสียง Zoom R20 Portable Multitrack Recorder

Name: เครื่องบันทึกเสียง Zoom R20 Portable Multitrack Recorder
Price: 16480.00 THB
Availability: InStock

เครื่องอัดเสียง Zoom R20 แบบดิจิตอล Multitrack Standalone Recorder or 8×4 USB Interface, 4.3″ Color Touchscreen Interface, 8 XLR Mic Preamps, 1 with Hi-Z, Record up to 16 Tracks (8 at Once), Onboard editing and built-in effects

ไม่รวมภาษีมูลค่าเพิ่ม…

~~฿20,600.00~~ ฿16,480.00

สอบถามและสั่งซื้อสินค้า

Category: เครื่องบันทึกเสียงดิจิตอล (Digital Recorder) Tag: ZOOM

Description

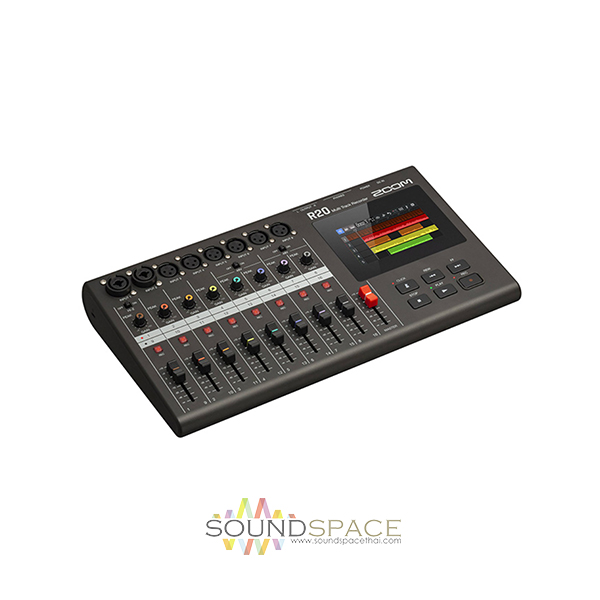

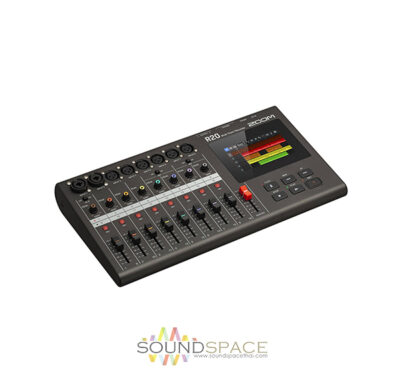

Zoom R20 Portable Multitrack Recorder

With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music. The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.

Features:

4.3” Full-color LCD touchscreen display
Easy-to-use DAW-inspired interface
Record up to 16 tracks (8 simultaneously)
Eight XLR mic preamps, including two mic/line/instrument combo jacks
Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
Onboard editing and built-in effects
Pre-loaded drum loops
Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
New locking-type AC Adapter (ZAD-1220)
Up to 24-bit /44.1kHz audio in BWF-compliant WAV
Compatible with Guitar Lab software for Mac/Windows PC

Specifications

Form Factor	Desktop
Number of Tracks	WAV: 8
Maximum Simultaneous Tracks	8 x Recording / 16 x Playback (at 44.1 kHz)
Display	4.3″ Color LCD Touchscreen
Maximum Sampling Rate	44.1 kHz / 24-Bit
Number of Microphone Preamps	8 Preamps
Built-In Microphone	None
Input Level Adjustment	8 x Knob
Number of Headphone Mixes	1 x Master
Sample Pads	None

Signal Processing

Pad	None
Gain/Trim Range	+6 to +50 dB
High-Pass Filter	None
EQ	Input Channels: 3-Band EQ
EQ Parameters	High: ±12 dB at 10 kHz Mid: ±12 dB at 2.5 kHz Low: ±12 dB at 100 Hz
Dynamic Processing	Input Channels: Compressor, Limiter, Gate
Built-In Effects	Distortion Auto-Wah Chorus Chorus+Reverb ADT Delay Reverb

Connectivity

Analog Audio I/O	1 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input 6 x XLR 3-Pin Balanced Mic/Line Input 2 x 1/4″ TRS Balanced Line Output 1 x 1/4″ TRS Unbalanced Headphone Output
Phantom Power	48 V, Selectable On/Off (on 4 Channels)
Digital Audio I/O	None
Host Connection Protocol	USB 2.0
USB (Non-Host)	1 x USB Type-A (Remote)
Sync I/O	None
Network I/O	None
MIDI I/O	None

Performance

Frequency Response	Mic, Line Inputs: 20 Hz to 20 kHz -1 dB
Maximum Input Level	Mic/Line Inputs: +4 dBu for 0 dBFS
Maximum Output Level	Line Outputs: +14 dBu
Headphone Output Power	20 mW per Channel into 32 Ohms
Impedance	XLR Mic Inputs: 3.9 Kilohms 1/4″ Line Inputs: 5.3 Kilohms Hi-Z Inputs: 1 Megohm Line Outputs: 200 Ohms Headphone Outputs: 33 Ohms
EIN	Mic Inputs: ≤ -121 dBu A-Weighted (150-Ohm Source, +40 dB Gain)

Digital Audio

Audio File Formats	BWF
Sample Rates	44.1 kHz (BWF)
Bit Depths	16 / 24-Bit
Sync Sources	Internal

Audio Storage & Playback

Supported Media	SDHC Card, SDXC Card
Memory Card Slot	1 x SDXC
Supported Media Capacity	SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 1 TB Maximum

Compatibility

OS Compatibility	macOS Windows *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Supported Drivers/API & Plug-Ins	macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer
Required Hardware	Available USB Port

Power

Power Requirements	AC/DC Power Adapter (Included)
AC Input Power	Not Specified by Manufacturer
AC/DC Power Adapter	12 VDC at 2 A, Center-Positive (Included)
Power Consumption	11 W (Maximum)
