เครื่องบันทึกเสียง Zoom R12 Multi-Track Digital Recorder

เครื่องบันทึกเสียง Zoom R12 แบบดิจิตอล Multifunctional Production Surface, 8-Track Recording: 24-Bit / 44.1 kHz, 2.4″ Color LCD Touchscreen, FX Channel, Compressor, Pan & 3-Band EQ, Drum loops (150 preloaded), Records directly to SDXC cards

ไม่รวมภาษีมูลค่าเพิ่ม…

฿13,400.00 ฿10,720.00

สอบถามและสั่งซื้อสินค้า

Description

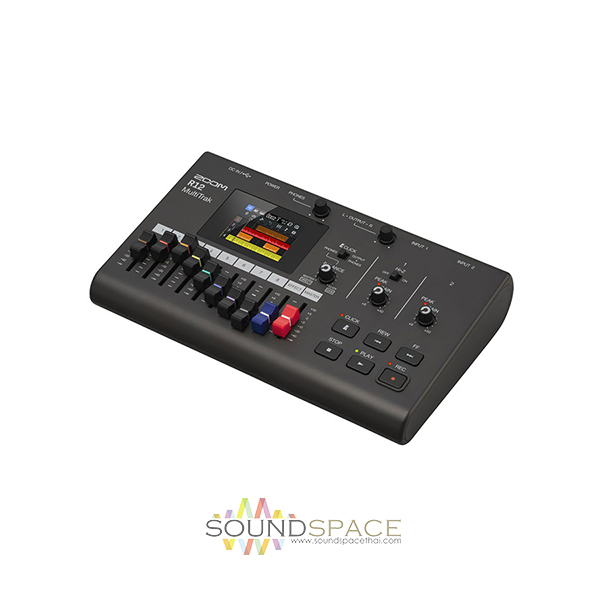

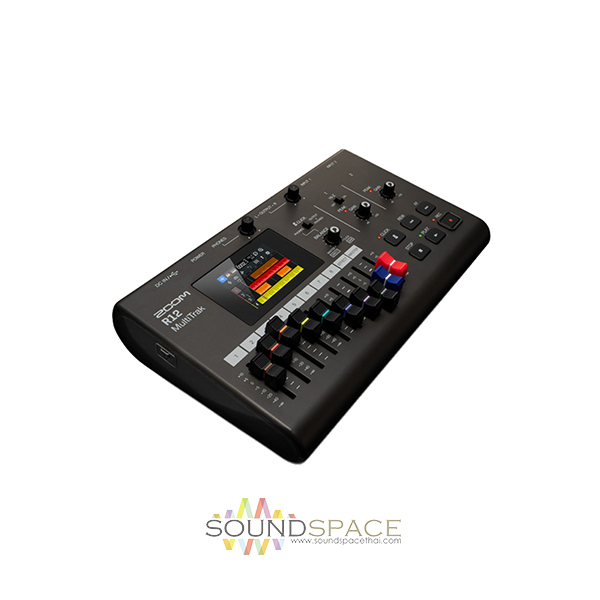

Zoom R12 MultiTrak Portable Recorder and Control Surface

เครื่องบันทึกเสียง Zoom R12 แบบดิจิตอล Multifunctional Production Surface, 8-Track Recording: 24-Bit / 44.1 kHz, 2.4″ Color LCD Touchscreen, FX Channel, Compressor, Pan & 3-Band EQ, Drum loops (150 preloaded), Records directly to SDXC cards

The R12 MultiTrak from Zoom captures the power and immediacy of classic 8-track recorders with the welcome addition of modern updates like touchscreen track editing! The R12 MultiTrak is great for capturing ideas, scraps, and even full songs without the complicated setup of DAWs, computers, and other equipment.

It easily connects to microphones, instruments, or line level devices like keyboards and mixers via two TRS/XLR combo jacks, and it can record up to eight tracks per project. Fleshing out song ideas is easy  just use your own instruments or try out the R12’s powerful pre-loaded drum machine, onboard effects, and patch options.

The R12 even features a built-in synth that can be controlled via touchscreen or an external keyboard! If you love the feel of hardware recording but yearn for optimized workflow and touchscreen control, the Zoom R12 MultiTrak is the clear solution to add to your cart.

Features:

  • Multi-track digital recorder with up to 8 tracks of recording.
  • 2.4” Full Color LCD touchscreen display with easy touch and swipe editing
  • User friendly graphic interface with on-board editing capabilities
  • Battery Powered up to 5 hours (4 AA’s)
  • 2 XLR / TRS Combo inputs – with phantom power and HI-Z on input 1
  • Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects, and much more)
  • Built-in compressor for inputs 1 and 2
  • Pan and 3-band EQ for each track
  • Sequence play – for using backing tracks in a live setting
  • Drum loops (150 preloaded)
  • Records directly to SDXC cards
  • Built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function

Specifications

General
Form Factor Desktop
Number of Tracks WAV:
8 (2 Inputs + Stereo Mix)
Maximum Simultaneous Tracks 2 x Recording / 8 x Playback (at 44.1 kHz)
Display 1 x 2.4″ Color LCD Touchscreen (Backlit)
Maximum Sampling Rate 44.1 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Built-In Microphone None
Input Level Adjustment 2 x Knob
Sample Pads None
Signal Processing
Gain/Trim Range +6 dB to +50 dB
EQ Input Channels:
3-Band Shelving (Mono Channels)
EQ Parameters High: ±12 dB at 10 kHz
Mid: ±12 dB at 2.5 kHz
Low: ±12 dB at 100 Hz
Dynamic Processing Input Channels:
Compressor, Limiter, Gate
Solo/Mute Solo, Mute per Input Channel
Built-In Effects 10 x Effect (Type Unspecified)
Connectivity

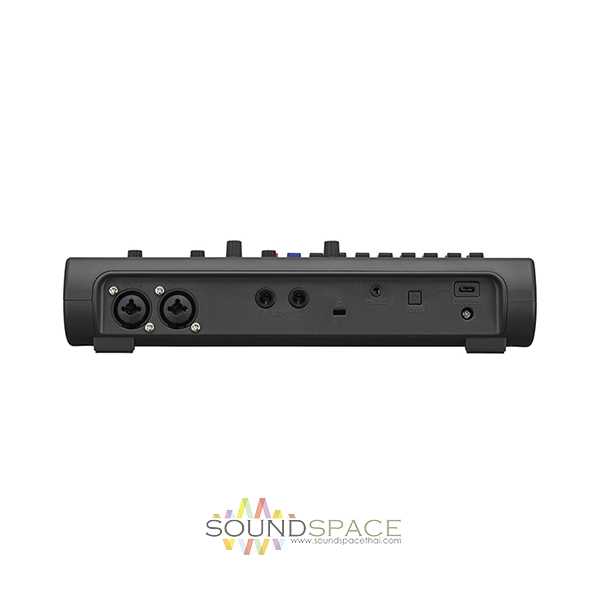

Analog Audio I/O 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4″ TRS Balanced Line Output
1 x 1/8″ / 3.5 mm TRS Headphone Output
Phantom Power 48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O None
Host Connection Protocol USB 2.0
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Performance
Frequency Response 20 Hz to 20 kHz +0.5/-1 dB
Maximum Output Level +1 dBu
Headphone Output Power 1/8″ / 3.5 mm: 45 mW per Channel into 32 Ohms
Impedance Combo XLR-1/4″ Mic/Line Inputs:
3.9 Kilohms
1/4″ Hi-Z Inputs:
1 Megohm
Digital Audio
Audio File Formats Recording:
WAV
Sample Rates 44.1 kHz (Recording to SD Card)
Bit Depths 16 / 24-Bit
Audio Storage & Playback
Supported Media microSDXC Card
Memory Card Slot 1 x microSDXC
Supported Media Capacity 1 TB Maximum
Compatibility
OS Compatibility macOS
Windows
iOS
Android
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Power
Power Requirements Battery, USB Bus Power
DC Input Power 5 VDC at 1A (USB Bus Power)
AC/DC Power Adapter 5 VDC at 1 A

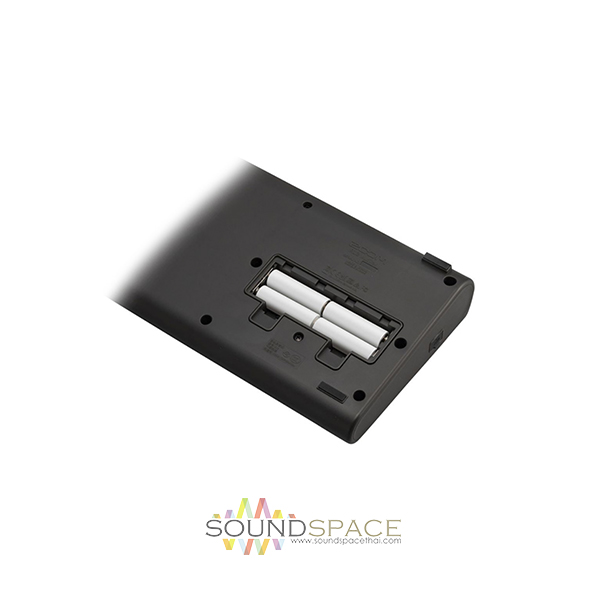

Battery Type 4 x AA
Approximate Battery Life 5 Hours (AA Alkaline)
5 Hours (AA NiMH)
11 Hours (AA Lithium)
Physical
Dimensions 10.1 x 6.2 x 2.4″ / 256 x 158 x 61 mm
Weight 29.2 oz / 827.0 g (with Batteries)
