เครื่องบันทึกเสียง Zoom LiveTrak L8 Multitrack Recorder
มิกเซอร์พร้อมเครื่องบันทึกเสียง Zoom LiveTrak L-8, Portable Podcasting/Music Studio, 8-ch mixer (6 combo, plus 2 TS), 12-track simultaneous recording, 10-track playback, 3-band EQ and a low-cut function Multitrack Recording via SD Card and USB
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿19,600.00 ฿15,680.00
Description

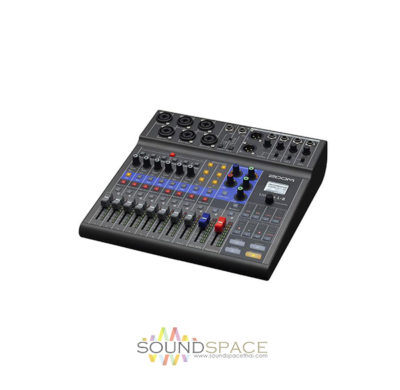

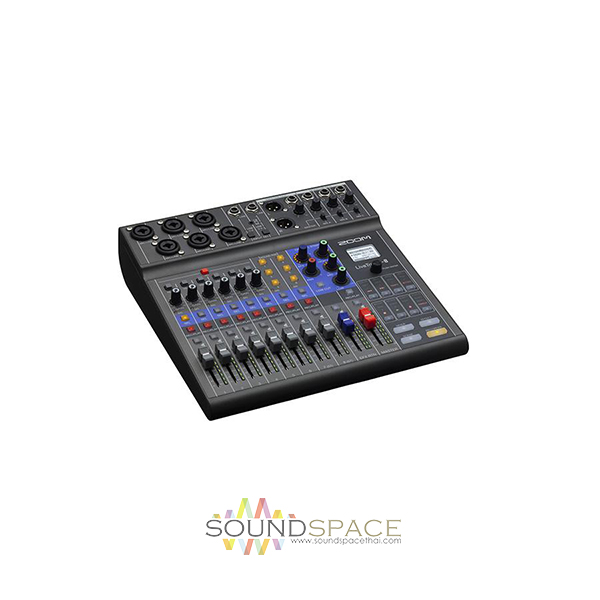

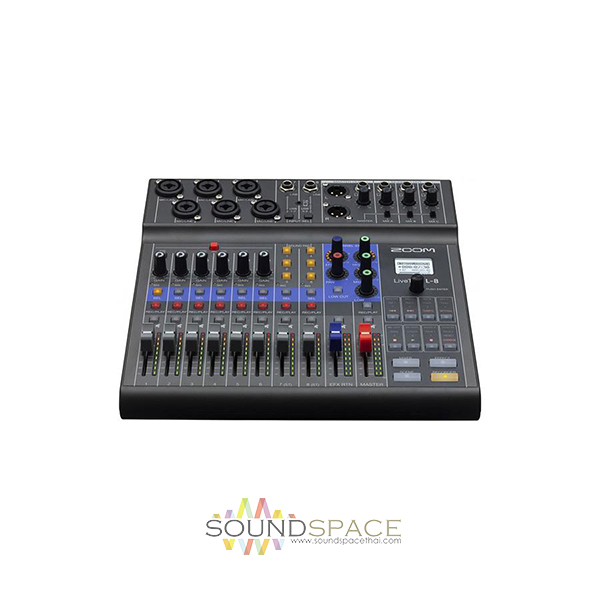

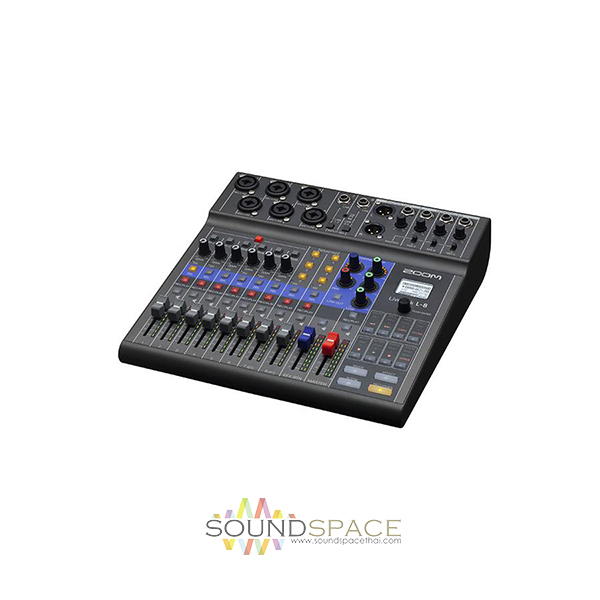

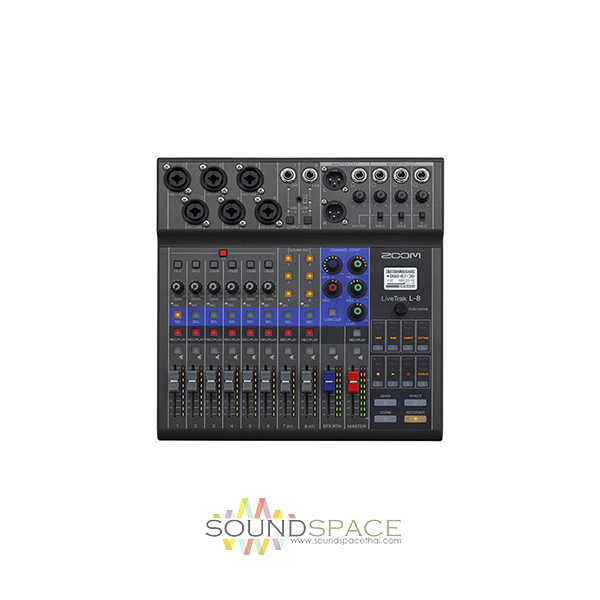

Zoom LiveTrak L-8 Portable 8-Ch Digital Mixer and Multitrack Recorder
มิกเซอร์พร้อมเครื่องบันทึกเสียง Zoom LiveTrak L-8, Portable Podcasting/Music Studio, 8-ch mixer (6 combo, plus 2 TS), 12-track simultaneous recording, 10-track playback, 3-band EQ and a low-cut function Multitrack Recording via SD Card and USB
The Zoom LiveTrak L-8 digital mixer and recorder puts the flexibility of Zoom’s popular LiveTrak L-Series range in a compact and portable format that’s optimized for podcasting and music production on the go. The LiveTrak L-8 provides tactile controls and intuitive functionality, so you can start a podcasting or music recording session in minutes.
With six mic preamps, four independent headphone outputs, a phone tap for call-in interviews, and six sound pads, the LiveTrak L-8 can easily handle roundtable podcasts or tracking multiple musicians. Since it can be operated on AA batteries or a USB power supply, it can join you no matter where you go to record.
Whether you record to an SD card, stream via USB to a computer or iOS mobile device, or do both at the same time, the LiveTrak L-8 gives you up to 12 channels of simultaneous multitrack recording. Just add microphones (dynamic or condenser), hook up headphones, and get ready to produce quality content in no time.
Features:
- 8-channel mixer (6 combo, plus 2 TS)
- 12-track simultaneous recording, 10-track playback
- Mix-Minus function preventing audio feedback from dial-in guests
- TRRS connection and included TRRS cable for phone connectivity
- 6 assignable Sound Pads, with 13 preset sounds
- 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
- 3-band EQ and a low-cut function
- 7 scene memories for storing mixes
- 12-in / 4-out USB audio interface
- Class-compliant mode (for iOS compatibility)

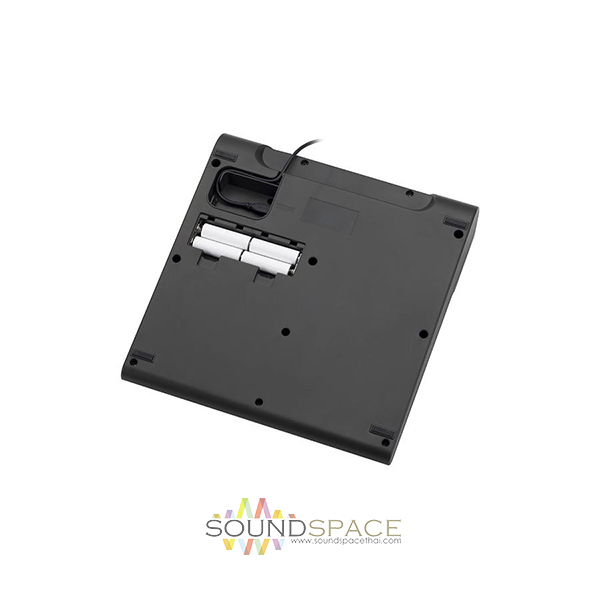

- Battery operated with four AA batteries or a USB power supply
- Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously
Specifications
| Inputs | 2 x XLR-1/4″ TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs 4 x XLR-1/4″ TRS Combo Balanced Mic/Line Inputs 2 x 1/4″ TS Unbalanced Line Inputs 1 x 1/8″ / 3.5 mm TRRS Unbalanced Smartphone I/O |
| Outputs | 2 x 3-Pin XLR Male Balanced Line Outputs 4 x 1/4″ TRS Female Unbalanced Headphone Outputs |
| Input Gain | Mic/Line Inputs with Hi-Z Off: +10 to +54 dB Mic/Line Inputs with Hi-Z On: -3 to +41 dB |
| Input Impedance | XLR: 3 Kilohms 1/4″ TRS Line: 3 Kilohms 1/4″ TS Line: 10 Kilohms 1/4″ Hi-Z: 1 Megohm 3.5 mm TRRS: 10 Kilohms |
| Maximum Input Level | Mic/Line Inputs (-26 dB Pad Off): -2 dBu at 0 dBFS Mic/Line Inputs (-26 dB Pad On): +24 dBu at 0 dBFS 1/4″ TS Line Inputs: +3 dBu 3.5 mm TRRS: +3 dBu |
| Phantom Power | +48 VDC |
| Output Impedance | XLR: 100 Ohms 1/4″ TRS: 10 Ohms |
| Maximum Output Level | XLR: +14.5 dBu 1/4″ TRS: 10 mW per Channel (60-Ohm Load) |
| Buses | Master: 1 Monitor: 3 Send EFX: 1 |
| Channel Control | Low-Cut Filter: 75 Hz at 12 dB/Octave High EQ (Shelving): ±15 dB at 10 kHz Mid EQ (Peaking): ±15 dB at 2.5 kHz Low EQ (Shelving): ±15 dB at 100 Hz |
| Level Meters | 12 x 9-Segment LEDs |
| Effects | 8 Types |
| Recorder | Maximum Simultaneous Recording Tracks: 12 Maximum Simultaneous Playback Tracks: 10 Format: WAV Bit Depth: 16-Bit or 24-Bit Sample Rate: 44.1, 48, or 96 kHz |
| Supported Media Card Types | SDHC: 4 to 32 GB (Class 10 or Higher) SDXC: 64 to 512 GB (Class 10 or Higher) |
| Audio Interface | Recording: 12 Channels Playback: 4 Channels Bit Depth: 24-Bit Sample Rate: 44.1 or 48 kHz Interface: USB 2.0 |
| System Requirements | macOS 10.12 or Later Intel Core i3 or Faster CPU USB 3.0 / 2.0 (Operation Is Not Guaranteed When Used with USB Hubs or Expansion Cards)Windows 7 SP1 or Later (32-/64-Bit) Intel Core i3 or Faster CPU (Operation Is Not Guaranteed with CPUs from Atom, Celeron, or Pentium Series or CPUs Made by AMD) USB 3.0 / 2.0 (Only USB Host Controllers with Intel Chipsets are Supported; Operation Is Not Guaranteed When Used with USB Hubs or Expansion Cards)iOS 10 or Later Apple Lightning-to-USB Camera Adapter Required |
| Card Reader | Class: Mass Storage USB 2.0 High Speed |
| Frequency Response | 20 Hz to 20 kHz -1 dB at 44.1 kHz 20 Hz to 40 kHz -3 dB at 96 kHz (Gain at 3 O’Clock) |
| Equivalent Input Noise | ≤121 dBu EIN (IHF-A) at +54 dB, 150-Ohm Input |
| Display | 96 x 64 Backlit LCD |
| Power Requirements | Battery: 4 x AA Batteries (Alkaline, NiMH, or Lithium) AC: Zoom AD-17 AC Adapter DC: 5 V, 1 A USB Bus Power |
| Battery Life | Alkaline: Up to 2 Hours NiMH (1900 mAh): Up to 3.5 Hours Lithium: Up to 6.5 HoursTesting Conditions: 4-Channel Recording at 16-Bit / 44.1 kHz to SD Card with Phantom Power Off, LCD Backlight at 15 Seconds, Battery Save On, and 62-Ohm Headphone Impedance |
| Power Consumption | 5 W |
| Dimensions (W x D x H) | 10.6 x 11.1 x 2.9″ / 26.8 x 28.2 x 7.4 cm |
| Weight | 3.4 lb / 1.6 kg |
| Package Weight | 4.975 lb |
| Box Dimensions (LxWxH) | 13.9 x 13.4 x 3.8″ |
