เครื่องบันทึกเสียงดิจิตอล Zoom H1 XLR Portable Recorder

Name: เครื่องบันทึกเสียงดิจิตอล Zoom H1 XLR Portable Recorder
Price: 5680.00 THB
Availability: InStock

เครื่องอัดเสียงดิจิตอล Zoom H1 XLR แบบพกพา, 32-bit/96kHz Handheld Recorder with 2 XLR/TRS Combo Inputs, 3.5mm Stereo Input, OLED Waveform Display, 1TB SDXC Storage Capacity, 3.5mm Headphone Output, and Onboard Speaker

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

~~฿7,100.00~~ ฿5,680.00

สอบถามและสั่งซื้อสินค้า

Category: เครื่องบันทึกเสียงดิจิตอล (Digital Recorder) Tag: ZOOM

Description

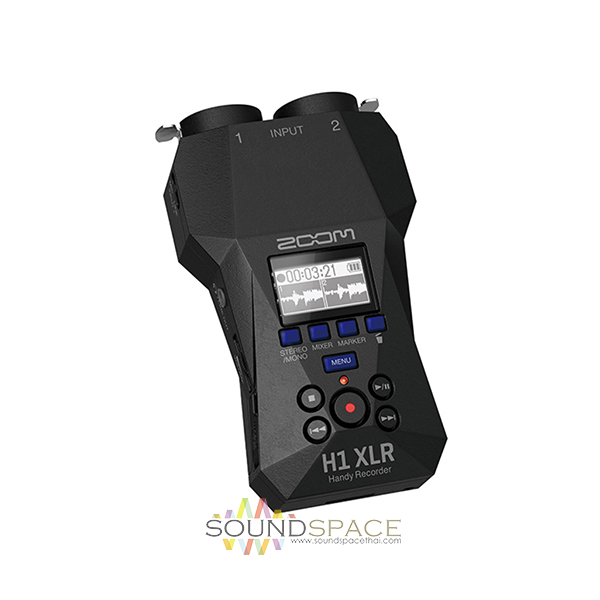

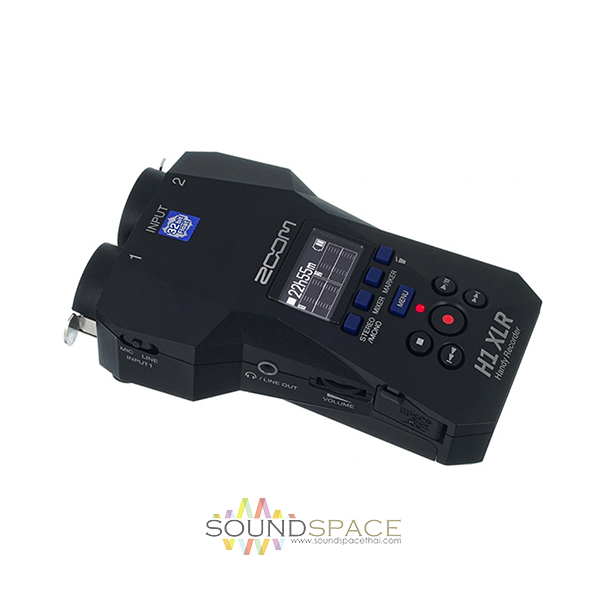

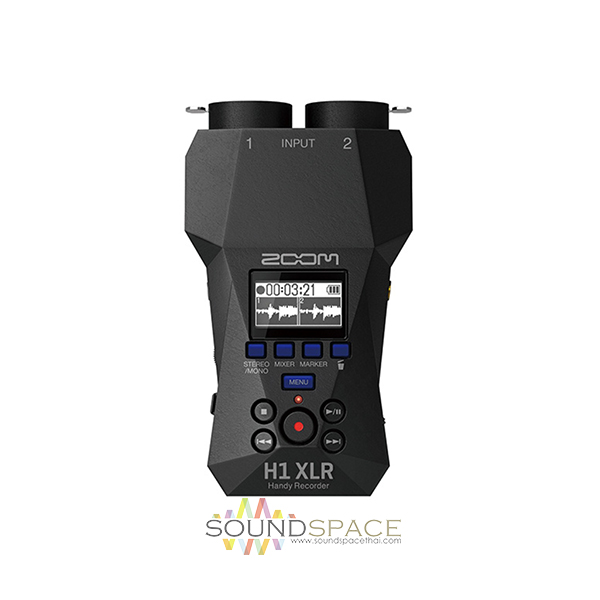

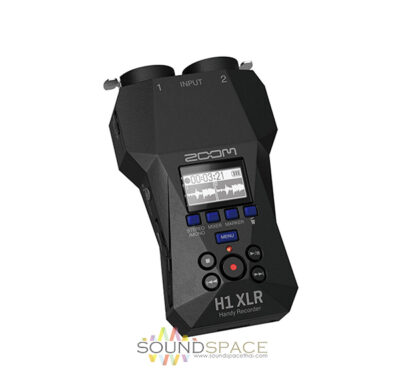

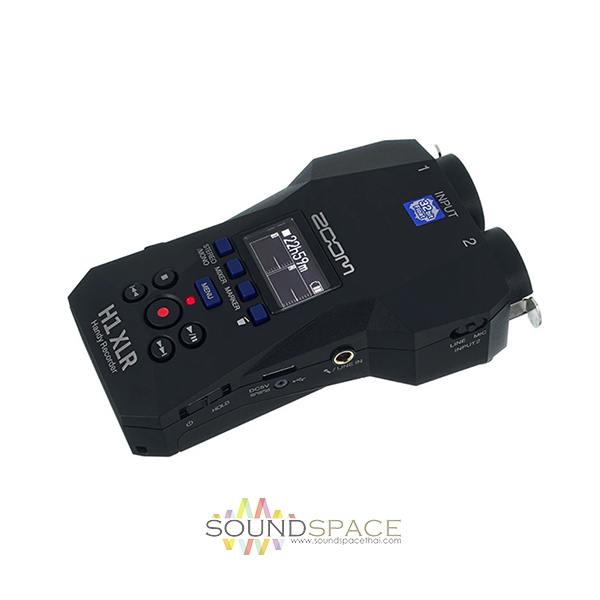

Zoom H1 XLR Portable Recorder

H1 XLR from Zoom is a portable audio recorder that excels at recording audio for video. Sporting two XLR-1/4″ TRS combo mic/line inputs, a 3.5mm stereo jack for aux and lav input, and 32-bit float recording for huge dynamic range, H1 XLR supports a wide range of applications.

The low-noise mic preamps sport phantom power for professional condenser mics, and the 3.5mm input provides plug-in power for lavaliers, letting you easily record podcasts, direct feeds from mixers, audio for video shoots, and much more.

The USB-C connection offers easy connectivity with computers and smart devices for live streaming, 2×2 audio interface duties, or optional bus power. The H1 XLR supports battery power via two AA batteries and power supply input (both sold separately). The integrated mixer and high-contrast OLED display make operation smooth and intuitive.

Features:

XLR-equipped handheld recorder — perfect for video, direct feed recording, podcasts, songwriting, and much more
Dual XLR/TRS combo inputs accommodate a bounty of instruments, microphones, and more
3.5mm stereo input for on-camera mics, phones, lavaliers, and other external sources
Onboard XLR preamps with -122dB EIN and up to 95kHz sample rates
+4dBu line-level signal recording
Integrated mixer for optimal signal management
Phantom power support for use with condenser microphones and plug-in power lavaliers
Adjustable stereo and mono recording settings
Built-in line-level/mic switch
32-bit float recording with built-in dual AD recorders services impressive dynamic range
3.5mm headphone output and onboard speaker for quick reference
High capacity 1TB SDXC storage support
Powered via two AA batteries or USB-C
PC, Mac, iOS, and Android connectivity for exclusive audio interface applications
Manageable language options boast high user accessibility

Specifications

Portable Recorder

Form Factor	Field Recorder
Primary Use Applications	Audio-for-Video, Podcasting
Number of Tracks	2 (3 Inputs + Stereo Mix)
Number of Input Channels	3 (2 x Mono, 1 x Stereo)
Maximum Sampling Rate	96 kHz / 32-Bit Float
Microphone	No
Number of Microphone Inputs	2
Built-In Speaker	Yes, 250 mW
Display	0.96″ / 2.44 cm Monochrome OLED
Memory Card Support	microSDXC (4 GB 1 TB)
Special Features	No

Recording

Audio File Formats	Recording: BWF, iXML, WAV
Sample Rates	44.1 / 48 / 96 kHz (Record)
Bit Depth	32-Bit (Floating Point)
Recording Time	48 MHz/32-Bit: 10 Hrs (Stereo)

Connectivity

Analog I/O	2x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Line/Mic Input (Lockable) 1x 1/8″ / 3.5 mm TRS Female Aux/Mic Input 1x 1/8″ / 3.5 mm TRS Female Headphone Output
Digital I/O	No
Phantom Power	+48 V
Phantom Power Current	≤ 10 mA per Channel
Plug-In Power	Yes, 2.5 V
System Connection	1x USB-C (2.0)
Audio Interface Capability	Stereo Only
Wireless	No
Mobile App Compatible	No

Performance

Max Input Level	Mic Inputs: +4 dBu Line Inputs: +24 dBu
Headphone Output Power	20 mW per Channel into 32 Ohms
Impedance	Mic Inputs: ≥3.8 Kilohms Line Inputs: ≥39 Kilohms 1/8″ / 3.5 mm Inputs: ≥2 Kilohms
Equivalent Input Noise (EIN)	≤-122 dBu
