มิกเซอร์ YAMAHA ZG01 Game Streaming Audio Mixer

Name: มิกเซอร์ YAMAHA ZG01 Game Streaming Audio Mixer
Price: 11000.00 THB
Availability: InStock

มิกเซอร์ YAMAHA ZG01 สำหรับสตรีมมิ่งเกมส์, High resolution (24-bit, 48 kHz) USB audio recording and playback, Effect button x 6 (3 for voice chat effects, 3 for game sound effects), HDMI connection, Windows/Mac support by USB-C connection

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿11,000.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: YAMAHA

Description

YAMAHA ZG01 Game Streaming Audio Mixer

The ZG01 is Yamaha’s first audio mixer designed specifically for game voice chat and game streaming.

This new mixer allows you to tailor the game audio, your voice, and the voice of the person you are chatting with to your own playback environment, while simultaneously providing the ideal audio signal to both your chat partner and the audience you are streaming to.

The ZG01 also features simple audio operation with carefully selected physical controls, a variety of DSP effects, such as a chat voice changer and authentic surround sound processing through stereo headphones, as well as 2-in/1-out HDMI ports that also work as an HDMI switcher and conversion adapter. The ZG01 offers a higher level of immersive game sound and a more comfortable gaming environment.

Features:

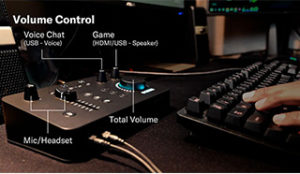

Intuitive volume control designed for gamer and game streamer
High resolution (24-bit, 48 kHz) USB audio recording and playback
Flexible volume control with dedicated drivers that are recognized by Windows/Mac as virtual multiple devices
ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect… and more)
Effect button x 6 (3 for voice chat effects, 3 for game sound effects)

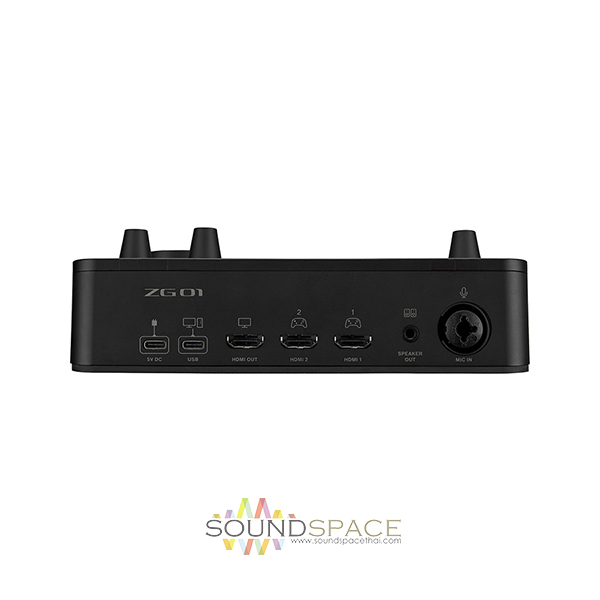

HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
MIC input for condenser mics with +48 phantom power and mute button
Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
4-pole mini input/output (TRRS) for smartphones
ZG Controller (Windows/Mac) for precise parameter control
Windows/Mac support by USB-C connection
iOS and Android supported by 4-pole mini input/output (TRRS)
USB-C Power input (5 V DC, 1.5 A)

Specifications

Input Channels	Microphone : Combo (Mic, +48 V Phantom Power), 3.5 Mm (1/8″) Mini (Headset Mic, Plug-In Power) (Mic And Headset Mic Cannot Be Used Simultaneously)
	Smartphone : 4-Pole Mini Input/Output (TRRS)
	HDMI : Switchable Input HDMI 1 Or HDMI 2 By Button (No Video Capture Function)
	USB : 2 Virtual Devices (Voice, Streaming)
Output Channels	Phones : 3.5 Mm (1/8″) Stereo Mini (Headphones Or Headset Phones)
	Smartphone : 4-Pole Mini Input/Output (TRRS)
	Monitor Out : Stereo Mini (Speaker Out)
	HDMI: Audio Out : 2ch 24-Bit/48khz Fixed, Video
	Signal : Pass-Through
	USB : 2 Virtual Devices (Voice, Speaker)
Functions	MUTE Button X 1, HDMI Input Select Button X 1, Monitor Output Select Button X 1, Effect Preset Button X 6 (Voice X 3, Game X3)
On-Board DSP Processors	ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice Change/Game Sound Effects (Detail Is Operated On ZG Controller)
USB Audio	Sampling Frequency : Max. 48 Khz, Bit Depth: 24-Bit, Type-C
USB DC Power Input	Type – C, 5 V DC, 1.5 A
Power Requirements	5 V DC, 1.5 A
Power Consumption	Max. 7.5 W
Dimensions	Width : 195 Mm (7.7″)
	Height : 47.5 Mm (1.9″)
	Depth : 110 Mm (4.3″)
Net Weight	0.8 Kg (1.8 Lbs)
Included Accessories	USB 2.0 Cable (USB-C To USB-C) 1.5 M X 1, USB 2.0 Cable (USB-A To USB-C) 1.5 M X 1, Start Guide, Safety Guide
Operating Temperature	0 To +40°C
Product Code	ZG01
