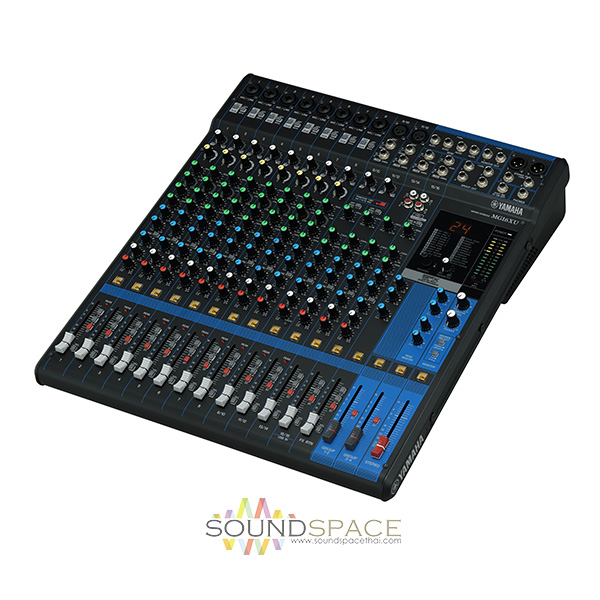

มิกเซอร์ YAMAHA MG16Xu 16-Input Mixer
เครื่องผสมสัญญาณเสียง YAMAHA MG16Xu 16-ชาแนล input 10 Mic / 16 Line Inputs (8 mono + 4 stereo), 2 GROUP Buses+ Stereo Bus/4 AUX/USB/Cubase Al/Effects
ราคาไม่รวมภาษีมูลค่าเพิ่ม
฿28,000.00 ฿25,200.00
Description
YAMAHA MG16Xu 16-Input Mixer
เครื่องผสมสัญญาณเสียง YAMAHA MG16Xu 16-ชาแนล input 10 Mic / 16 Line Inputs (8 mono + 4 stereo), 2 GROUP Buses+ Stereo Bus/4 AUX/USB/Cubase Al/Effects
The MG16XU from Yamaha is a compact mixer capable of sixteen simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4″ inputs), and two stereo line inputs with 1/4″ and RCA jacks. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.
Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.
The MG16XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4″ headphone output with level control for personal monitoring, as well as additional TRS 1/4″ stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Each of the MG16XU’s channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix.
Features:
- 16-Channel Mixing Console, 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus, 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit, 1-Knob compressors
- High-grade effects: SPX with 24 programs, 24-bit/192kHz 2in/2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase Al DAW software download version
- PAD switch on mono inputs, +48V phantom power, XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included, Metal chassis
Specifications
| Built-in Effects | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Phantom Power | +48 V switchable, channels 1 – 12 |
| Digital I/O | USB: USB Audio Class 2.0 compliant
Sampling Frequency: max 192 kHz Bit Depth: 24-bit |
| Input Channels | 8x mono [mic/line]
2x mono/stereo [mic/line] 2x stereo [line] |
| Output Channels | 2x stereo out
1x monitor out 1x headphone out 4x aux out 4x group out |
| Bus | Stereo: 1
AUX: 4 GROUP: 4 |
| Pad | 26 dB (mono) |
| HPF | 80 Hz, 12 dB/oct (mono/stereo: MIC only) |
| Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec |
| Equalizer | EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz – 5 kHz peaking, stereo 2.5 kHz peaking EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving |
| LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping |
| Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min |
| Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: min) |
| Crosstalk | -78 dB |
| Power Requirement | AC 100 – 240 V, 50 / 60 Hz |
| Power Consumption | 30 W |
| Dimensions | 17.5 x 5.1 x 19.7″ (444 x 130 x 500 mm) |
| Net Weight | 15.0 lb (6.8 kg) |
