มิกเซอร์ YAMAHA MG10 10-Input Analog Mixer
เครื่องผสมสัญญาณเสียง YAMAHA MG10 6-ชาแนล input 4 Mic / 6 Line Inputs (2 mono + 2 stereo), XLR balanced outputs, HPF & 3-Band EQ on Mic/Line Inputs, One Knob Compressor on Channels 1 & 2
ราคาไม่รวมภาษีมูลค่าเพิ่ม
฿9,900.00 ฿7,920.00
Description

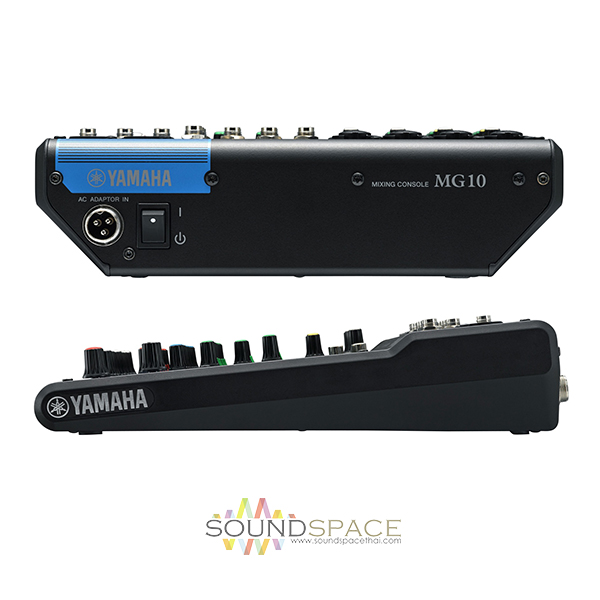

YAMAHA MG10 10-Channel Mixing Console
เครื่องผสมสัญญาณเสียง YAMAHA MG10 10-ชาแนล input 4 Mic / 6 Line Inputs (2 mono + 2 stereo), XLR balanced outputs, HPF & 3-Band EQ on Mic/Line Inputs, One Knob Compressor on Channels 1 & 2
The MG10 from Yamaha is a compact ten-input mixer for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4″ line inputs with stereo level controls.
Each of the four mic/line inputs is equipped with a 3-band EQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG10 mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4″ headphone output with level control for personal monitoring, as well as additional TRS 1/4″ stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
Specifications
| Phantom Power | +48 V switchable, channels 1 – 4 |
| Input Channels | 4x mono [mic/line] 3x stereo [line] |
| Output Channels | 2x stereo out 1x monitor out 1x headphone out 1x aux out |
| Bus | Stereo: 1 AUX[FX]: 1 |
| Pad | 26 dB (mono channels) |
| HPF | 80 Hz, 12 dB/oct (mono channels) |
| Compressor | Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec |
| Equalizer | EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Metering | 2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Total Harmonic Distortion | 0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min |
| Frequency Response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: min |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) |
| Crosstalk | -83 dB |
| Power Requirement | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power Consumption | 22.9 W |
| Dimensions | 9.6 x 2.8 x 11.6″ (244 x 71 x 294 mm) |
| Net Weight | 4.19 lb (1.9 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.25 lb |
| Box Dimensions (LxWxH) | 15.8 x 14.2 x 5.3″ |
