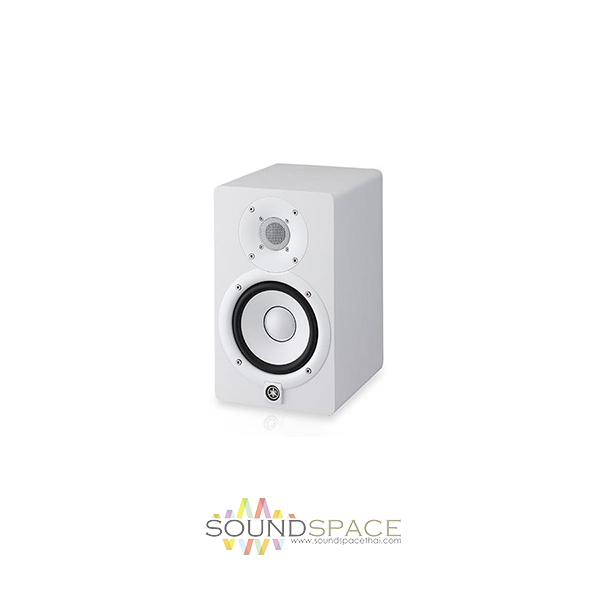

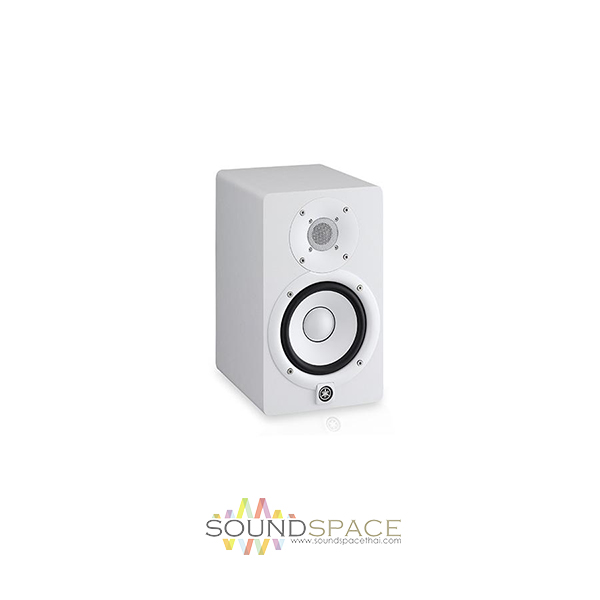

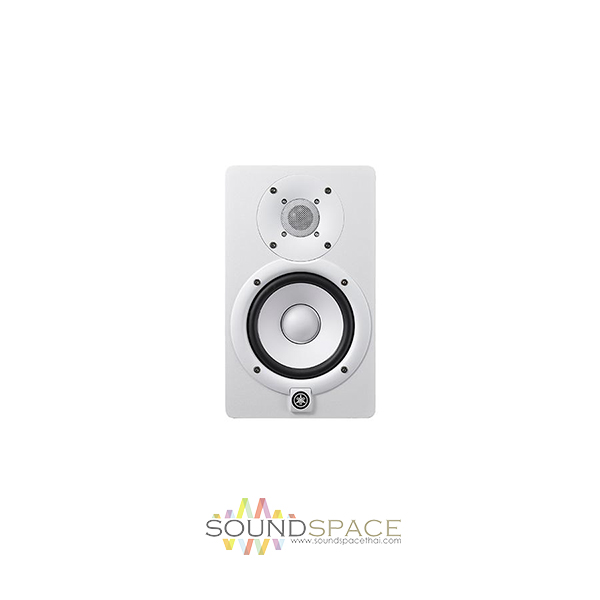

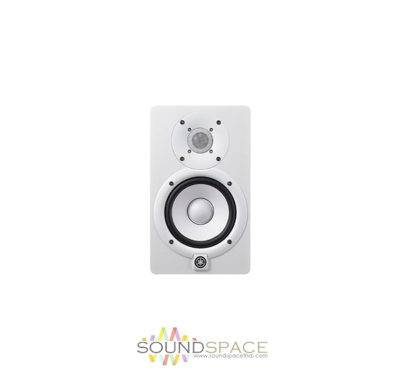

ลำโพงสตูดิโอ YAMAHA HS5iW Active Monitor 5″

Low Resonance Enclosure Design

HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology

Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha’s engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

Controls and Connectivity

HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

Features:

• High-performance drivers and mounting system
• 5″ cone woofer, 1″ dome tweeter
• Large magnets in an advanced magnetic circuit design
• Built-in bi-amplification (45 watts LF, 25 watts HF)
• Dedicated power amps are perfectly matched to the woofer and tweeter
• Enclosure is designed to kill unwanted resonances that can influence sound
• Room Control and High Trim response controls give you optimum response in any room
