เพาเวอร์มิกเซอร์ YAMAHA EMX5016CF Power Mixer

Description

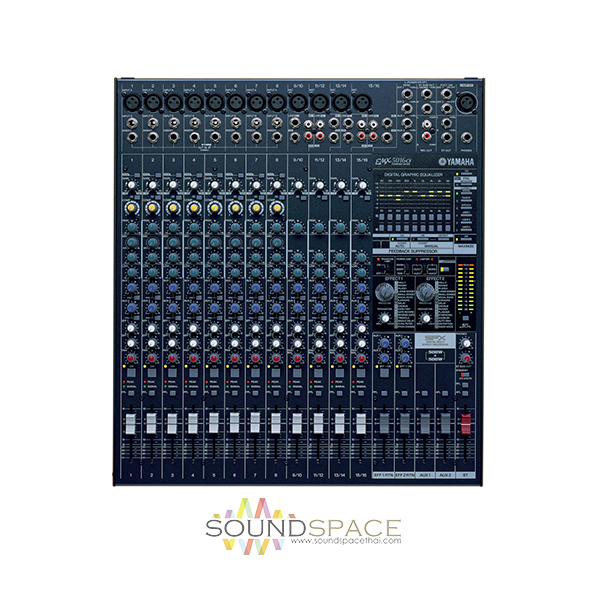

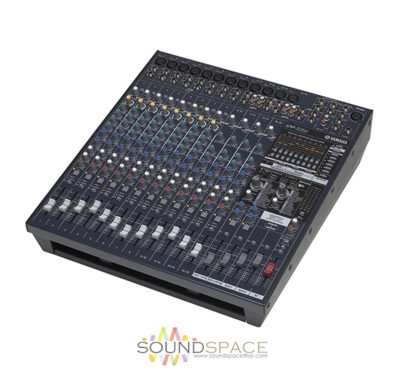

Yamaha EMX5016CF  Audio Mixer with 500W Stereo Amplifier

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ YAMAHA EMX5016CF 16-input, 3-band EQ, Digital Graphic EQ, Frequency Response Correction, Feedback Suppression, Onboard Dual Effects Processors, and Maximizer

The Yamaha EMX5016CF is a powered audio mixer with a powerful built in amplifier that is capable of supplying up to 1000 watts in stereo. The EMX5016CF features a total of 16 input channels, with 12 microphone inputs and 8 1/4″ phone line inputs. Stereo inputs are featured with 1/4″ phone and RCA paired line inputs.

A built-in effects engine provides over 16 user selectable effects. The powerful amplifier and full feature set give the EMX5016CF the sound quality and flexibility to perform in small clubs, bars, restaurants, houses-of-worship, halls, etc.

The Yamaha EMX5016CF is a powered audio mixer with a powerful built in amplifier that is capable of supplying up to 1000 watts in stereo. The EMX5016CF features a total of 16 input channels, with 12 microphone inputs and 8 1/4″ phone line inputs. Stereo inputs are featured with 1/4″ phone and RCA paired line inputs. A built-in effects engine provides over 16 user selectable effects.

The powerful amplifier and full feature set give the EMX5016CF the sound quality and flexibility to perform in small clubs, bars, restaurants, houses-of-worship, halls, etc.

500W + 500W AmplifierThe EMX5016CF features a powerful internal amplifier capable of 1000 watts of stereo power at four ohms.

Dual Effects Processor Engine Dual internal effects processor engine features over 16 preset effects.

Frequency Response Correction SystemYamaha’s FRC detection automatically matches the frequency and tonal response of any room.

Automatic Feedback SuppressionThe Automatic Feedback Suppression system compensates for frequencies that are causing feedback.

Features:

• Output power : 500W + 500W @4Ω[all versions]: 320 W + 320 W @8Ω[220-240v version]: 350 W + 350 W @8Ω[100v version]: 370 W + 370 W
• @8Ω[100v version]
• Input channels: 16 Line Inputs (8 mono, 4 stereo, 2 returns), 12 Mic Inputs with 48V phantom power, HPH per channel
• Output channels: 1 Speaker [A, B], 1 ST, 1 REC, 4 AUX sends (incl. 2 effect sends), 1 Phone, 1 Subwoofer, 8 Mono CH Insert
• Professional “1-knob compressors” on mono channels.
• 9-band Digital Graphic Equalizer with Presets & Memory.
• FRC (Frequency Response Correction) System to automatically set the graphic equalizaer for optimized response.
• Onboard Feedback Suppressor to instantly eliminate annoying feedback.
• Multi-band “Maximizer” for a more punchy upfront overall sound.
• Dual digital effects processors: 2 x 16 “SPX” effects
• Yamaha Speaker Processing: Speaker Processor and Preset for Yamaha passive speakers for optimizing performance
