ลำโพงซับเบส YAMAHA DXS18XLF-D Powered Subwoofer 18″ (Dante)
ลำโพงซับเบสแบบมีแอมป์ขยายในตัว Yamaha DXS18XLF-D (Dante-Equipped) เป็นตู้ลำโพงซับที่มีขนาดดอกลำโพง 18 นิ้ว bass-reflex มีกำลังขับ 1600 วัตต์ Class-D Amplifier, Dante: 2 x etherCON (2-In/2-Out), D-XSUB LF Processing, Cardioid Mode for Two or More Subs
฿72,000.00 ฿61,200.00
Description
YAMAHA DXS18XLF-D Powered Subwoofer 1600W 18″ (Dante-Equipped)
ลำโพงซับเบสแบบมีแอมป์ขยายในตัว Yamaha DXS18XLF-D (Dante-Equipped) เป็นตู้ลำโพงซับที่มีขนาดดอกลำโพง 18 นิ้ว bass-reflex มีกำลังขับ 1600 วัตต์ Class-D Amplifier, Dante: 2 x etherCON (2-In/2-Out), D-XSUB LF Processing, Cardioid Mode for Two or More Subs, ตอบสนองความถี่ 33 to 150 Hz (-10 dB), 2 x Combo XLR-1/4″ Inputs + XLR Thru/Out
The Yamaha DXS18XLF-D is a Dante-equipped, powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 18″ woofer to provide a frequency range of 30 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.
The on-board D-XSUB LF 96 kHz DSP processor provides total bass management. The Normal mode is ideal for a balanced low-frequency response, while Boost mode provides a tighter and more focused bass with some extra punch. Xtended LF mode drops the low-end frequencies down even further for large bottom end. If using two or more subwoofers, the selection of Cardioid mode can effectively reduce stage volume, while increasing low-end output directed at the audience.

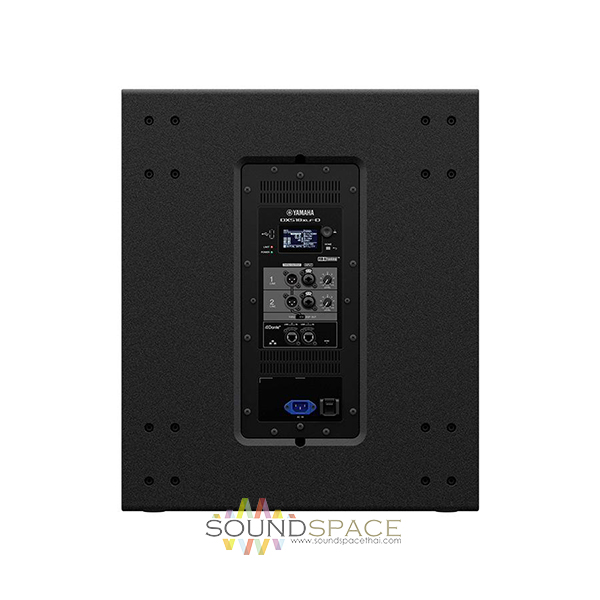

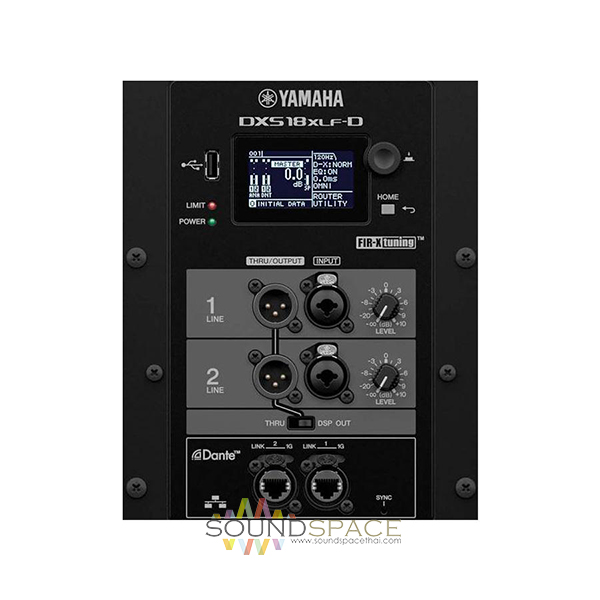

The rear panel offers two combo XLR-1/4″ inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The DXS18XLF-D is equipped with an additional panel with two etherCON connectors (2-in/2-out) for interfacing with other Dante compatible equipment such as other speakers and Yamaha’s CL/QL/TF digital mixing consoles. The Yamaha DXS18XLF-D ships with a standard IEC power cord.
Features:

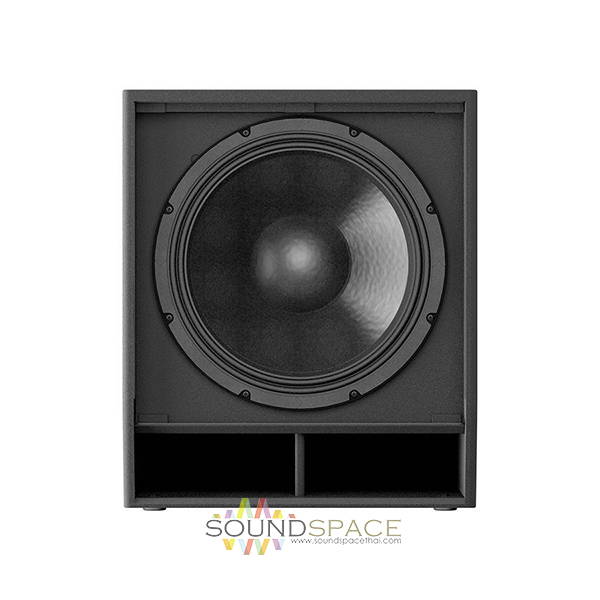

- Powered 18” subwoofer with 4” Voice Coil
- Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP for true high-resolution sound with super low latency
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Specifications
| System Type | Powered subwoofer, bass-reflex |
| Frequency Range | 30 to 150 Hz (-10 dB) |
| Components | 18.0″ / 457.2 mm cone, 4.0″ / 101.6 mm voice coil, ferrite magnet |
| Sample Rate | 96 kHz and FIR filter |
| SPL | Maximum Output Level (on axis, 3.3′ / 1 m): 136 dB |
| Power Rating | Dynamic: 1600 W Continuous: 1230 W |
| Connectors | Analog In: 2 x combo XLR-1/4″ / 6.35 mm Line Level: Maximum +24 dBu Input Impedance: 20 kOhmsAnalog Out: 2 x XLR Ch1: Thru (fix) Ch2: Thru or DSP out Digital I/O Dante: 2 x etherCON Cat 5e (daisy chain), 2 in / 2 out Fs: 44.1, 48, 88.2, 96 kHz Remote control 1000BASE-T |
| USB | USB 2.0: Host 5 V 500 mA, for USB memory DATA storage/load |
| AC Input | AC Input Connector: 1 x IEC AC inlet (V-Lock) |
| Amplifier Type | Class-D |
| Cooling | Fan cooling, variable speeds |
| Power Consumption | Idle: 40 W 1/8 Power: 180 W |
| Handles | 2 x aluminum die-cast |
| Enclosure Material | Plywood, durable Polyurea coating, black |
| Pole Socket | Φ 1.4″ / 35.0 mm (depth 3.1″ / 80.0 mm), M20 threaded (depth 1.0″ / 25.0 mm) |
| Dimensions (W × H × D) | 21.7 x 25.9 x 28.3″ / 551.2 x 657.9 x 718.8 mm |
| Weight | 107.8 lb / 48.9 kg |
| Packaging Info | |
|---|---|
| Package Weight | 132.0 lb |
| Box Dimensions (LxWxH) | 33.0 x 31.0 x 26.25″ |
Downloads
ดาวน์โหลด Manual YAMAHA DXS18XLF-D
