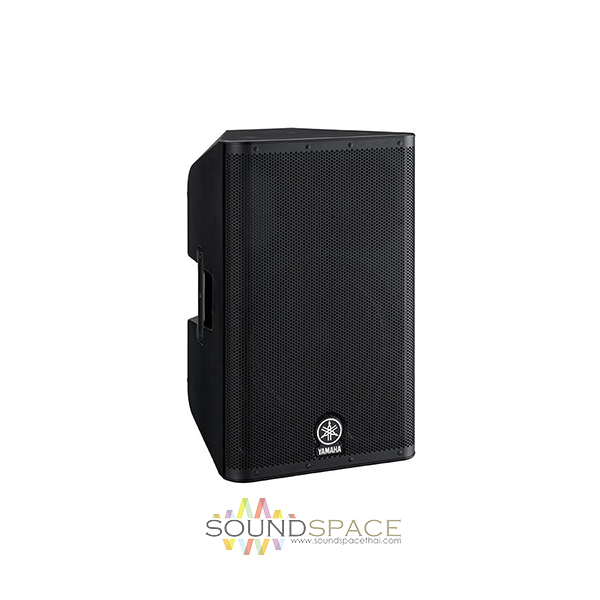

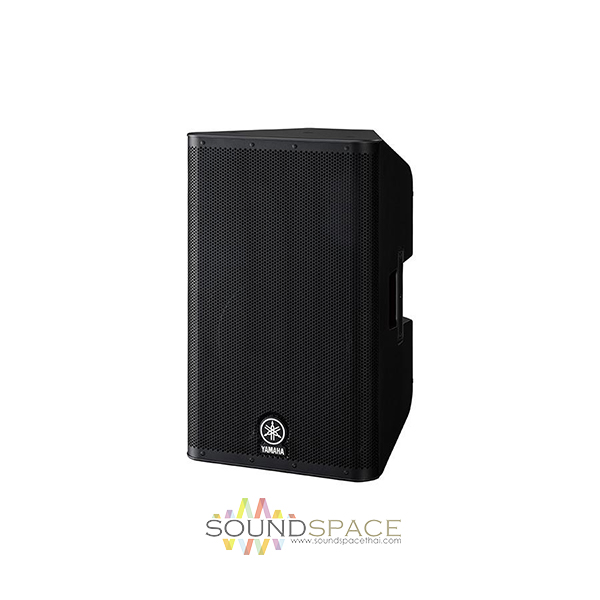

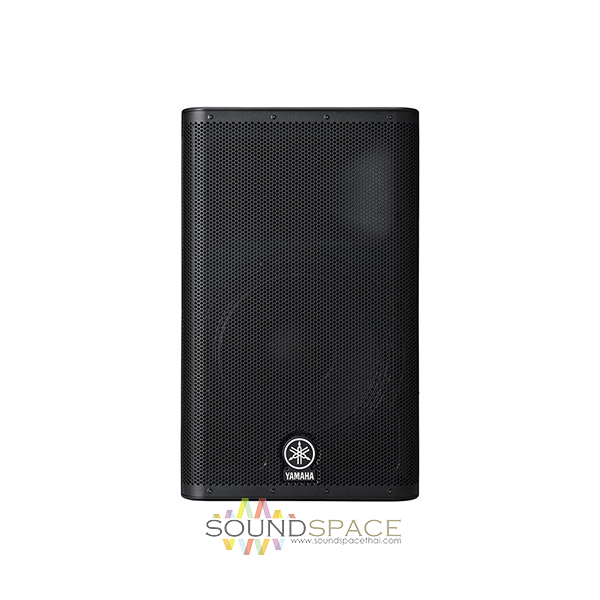

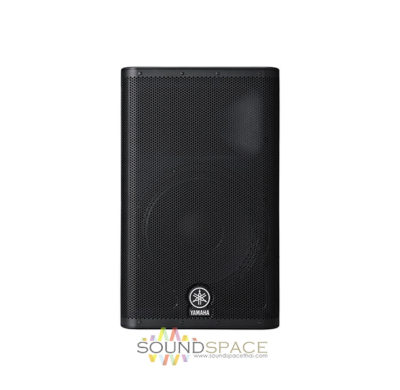

ลำโพง YAMAHA DXR12 Powered Speaker 12″
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DXR12 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 12 นิ้ว LF driver, เสียงแหลม 1.4 นิ้ว Diaphragm 1 นิ้ว throat compression driver, Magnet:Ferrite, มีกำลังขับ 1100 วัตต์ Class-D Amplifiers, ตอบสนองความถี่ 56Hz to 20kHz
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿39,000.00 ฿31,200.00
Description
Yamaha DXR12 1100W 12″ Powered Speaker
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DXR12 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 12 นิ้ว LF driver, เสียงแหลม 1.4 นิ้ว Diaphragm 1 นิ้ว throat compression driver, Magnet:Ferrite, มีกำลังขับ 1100 วัตต์ Class-D Amplifiers, ตอบสนองความถี่ 56Hz to 20kHz
Yamaha DXR12 is a compact active PA speaker system, and is part of the DXR loudspeaker series. Designed in collaboration with NEXO, world leaders in sound reinforcement, the DXR series draws on decades of speaker experience.
The Yamaha DXR12 builds on the success of the acclaimed DSR Series by combining the latest acoustic technologies with advanced digital sound processing to deliver unpresidented performance in a compact and lightweight system.
The DXR12 features an 12-inch low-frequency driver, and 1.4-inch high-frequency driver powered by a Class-D amplifier delivering 1100W of dynamic power. Overseen by NEXO, the class-leading DXR12 encompasses intelligent 48-bit precision DSP with sophisticated “D-Contour” multi-band dynamic processing, FIR-X digital crossover filtering and DSP controlled protection throughout the signal chain.
The Yamaha DXR12 also features a convenient integrated 3-channel mixer and advanced smart linking function with stereo/mono option. Front and rear pole-mounting is available as well rigging points for flying or using the optional U-brackets (sold separately). All DXR systems can be fully expanded by adding DXS subwoofers (see related items on the right).
Features:
- 12-inch low-frequency driver and 1.4″ high-frequency driver
- Class-D Amplifiers deliver 1100W of dynamic power
- 132dB maximum SPL, 52Hz to 20kHz frequency range
- Sophisticated “D-CONTOUR” multi-band dynamic processor
- FIR-X Digital Crossover Filtering, 48-bit precision
- DSP controlled protection throughout the signal chain, Intelligent on-board 3-channel mixer
- Smart linking function with stereo/mono option
- Front and rear pole-mounting
- Flyable via provided M10 rigging points or using optional U-brackets
- System expandable through adding DXS subwoofers: DXS12 or DXS15
- Weight: 19.3kg
- Designed in collaboration with NEXO
Specifications
| General specifications | DXR12 | |
|---|---|---|
| Speaker type | 12″ 2-way, Bi-amp powered speaker, Bass-reflex type | |
| Frequency range | -10dB | 52Hz – 20kHz |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:12″ cone, Voice Coil:2.5″, Magnet:Ferrite |
| HF | Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite | |
| Crossover | FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 132dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Power requirements | 100V – 240V, 50Hz/60 Hz | |
| Power consumption | 110W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 362mm (14 2/8″) |
| H | 601mm (23 5/8″) | |
| D | 350mm (13 6/8″) | |
| Net weight | 19.3kg (42.5lbs) | |
| Accessories | UB-DXR12(U-barcket) | |
| Others | Material: ABS (Matte Finish, Black) | |
