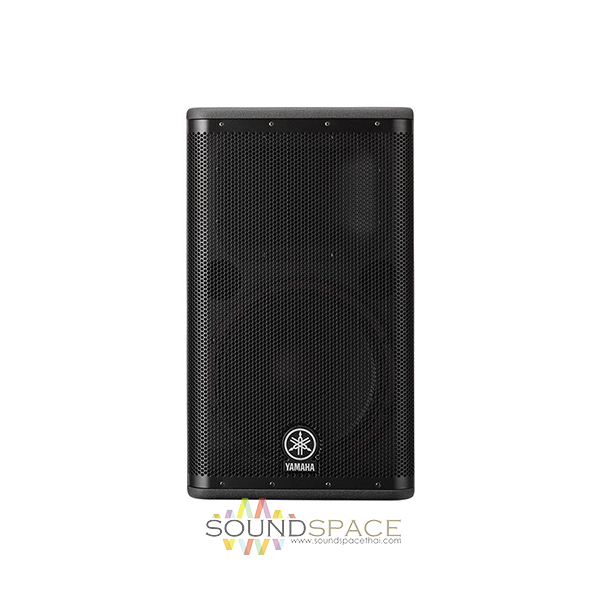

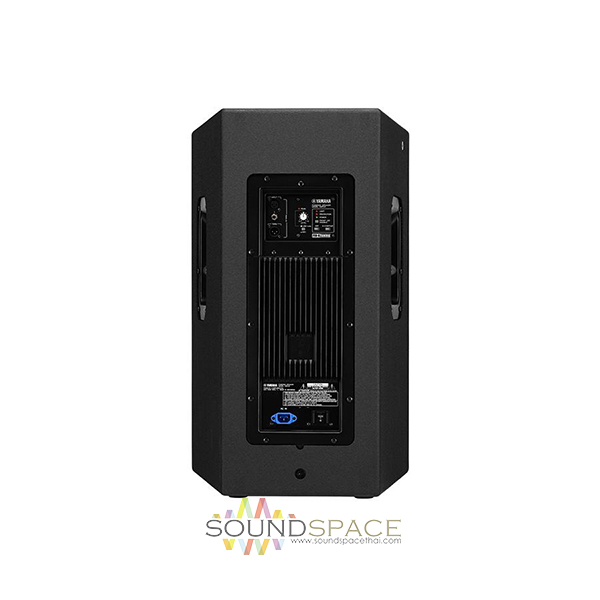

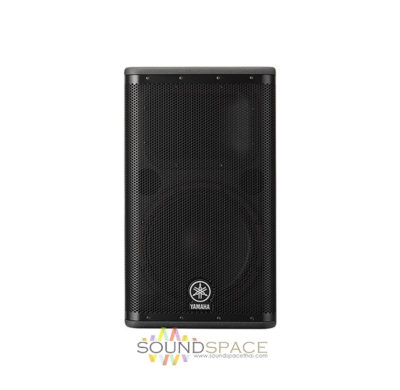

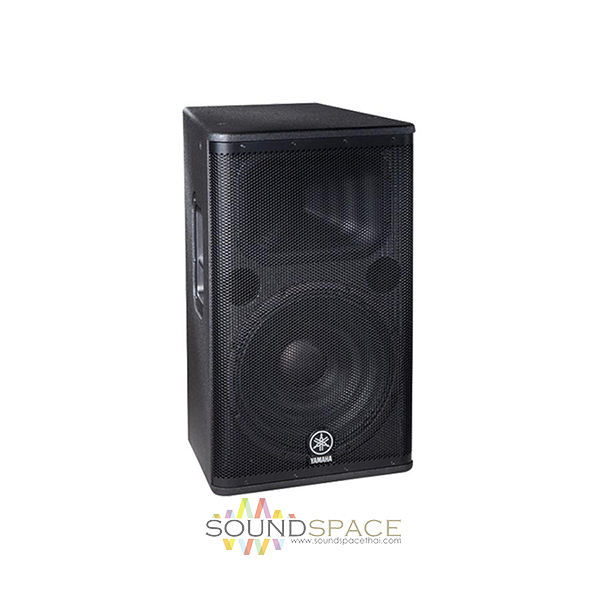

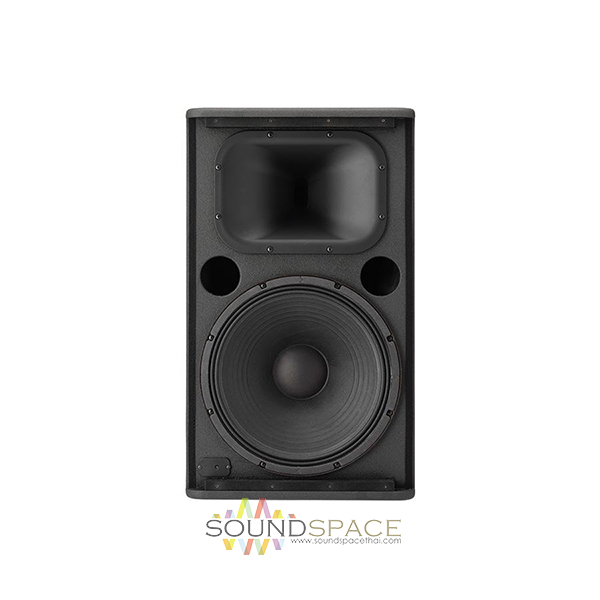

ลำโพง YAMAHA DSR115 Powered Speaker 15″
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DSR115 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 15 นิ้ว LF driver, เสียงแหลม 2 นิ้ว Titanium compression HF driver, มีกำลังขับ 1300 วัตต์ (LF 850W, HF 450W) Class-D, ตอบสนองความถี่ (-3dB) 55Hz ~ 18kHz
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿59,000.00 ฿47,200.00
Description
YAMAHA DSR115 Active Loudspeaker 1300W 15″
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DSR115 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 15 นิ้ว LF driver, เสียงแหลม 2 นิ้ว Titanium compression HF driver, มีกำลังขับ 1300 วัตต์ (LF 850W, HF 450W) Class-D, ตอบสนองความถี่ (-3dB) 55Hz ~ 18kHz
The DSR115 is a compact, high-power 15″ 2-way active loudspeaker system capable of achieving 136dB maximum peak SPL output. Equipped with high performance 48-bit DSP and top quality 1300W (LF 850W, HF 450W) Class-D amplifiers, it delivers sound with resolution at the highest level in its class and superb SPL performance. The DSR115 is perfect for live sound and installation applications that demand bass with extra punch and depth together with accurate high frequency response.
Features:
- Ultra-precise 48-bit digital sound processing
- D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
- All-new 1300W Class-D amplifiers with PFC switching mode power supply
- Maximum SPL 136dB peak
- Extensive protection of the transducers, amplifiers and power supply from high performance DSP
- Premium-grade, custom-designed transducers
- Exclusive 90° × 60° CD Waveguide Horn
- Compact and lightweight (28.0kg / 62lbs)
- Stand and pole mountable, with 35mm pole sockets
- Integrated M10 rigging points for suspended applications
Specifications
| General specifications | DSR115 | |
|---|---|---|
| Speaker type | 15″ 2-way, Bi-amp powered Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 45Hz ~ 20kHz | |
| Frequency response (-3dB) | 55Hz ~ 18kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 15″ cone |
| HF | 2″ Titanium diaphragm compression driver | |
| Crossover | FIR-X tuning (linear phase FIR filter) | |
| Output power | Dynamic: 1500W (LF: 1020W, HF: 480W), Continuous: 1300W (LF: 850W HF: 450W) | |
| Maximum output level (1m; on axis) | 136dB SPL | |
| I/O connectors | INPUT:XLR-3-31 x1 (Balanced) TRS Phone Jack x1 (Balanced), OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT | |
| Processors | D-CONTOUR (Dynamic CONTOUR) | |
| Power consumption | 100W | |
| Flying and mounting hardware | 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc) | |
| Pole socket | 35mm (Bottom Board) | |
| Dimensions | W | 442mm (17 4/8″) |
| H | 755mm (29 6/8″) | |
| D | 423mm (16 4/8″) | |
| Net weight | 28.0kg (62lbs) | |
