ลำโพง YAMAHA DSR112 Powered Speaker 12″
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DSR112 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 12 นิ้ว LF driver, เสียงแหลม 2 นิ้ว Titanium compression HF driver, มีกำลังขับ 1300 วัตต์ (850W LF, 450W HF) Class-D, ตอบสนองความถี่ (-3dB) 60Hz ~ 18kHz
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿52,000.00 ฿41,600.00
Description
YAMAHA DSR112 Active Loudspeaker 1300W 12″
ลำโพงแบบมีกำลังขยายในตัว YAMAHA DSR112 เป็นตู้ลำโพง 2 ทาง ขนาดดอกลำโพง 12 นิ้ว LF driver, เสียงแหลม 2 นิ้ว Titanium compression HF driver, มีกำลังขับ 1300 วัตต์ (850W LF, 450W HF) Class-D, ตอบสนองความถี่ (-3dB) 60Hz ~ 18kHz
The DSR112 is the most compact and versatile multi-purpose 2-way active loudspeaker system in the series. Capable of an astonishing maximum peak SPL of 134dB, the DSR112 is a perfect match to a wide range of portable PA and installation applications. Ideal for use as a front of house main PA, as well as for stage monitoring applications, it also includes integrated M10 rigging points for suspended applications.
Features:
- Ultra-precise 48-bit digital sound processing
- D-CONTOUR (Dynamic-CONTOUR) multi-band dynamic processing
- All-new 1300W Class-D amplifiers with PFC switching mode power supply
- Maximum SPL 134dB peak
- Extensive protection of the transducers, amplifiers and power supply from high performance DSP
- Premium-grade, custom-designed transducers
- Exclusive 90° × 60° CD Waveguide Horn
- Compact and lightweight (21.2kg / 47lbs), Performs as main PA or floor monitor

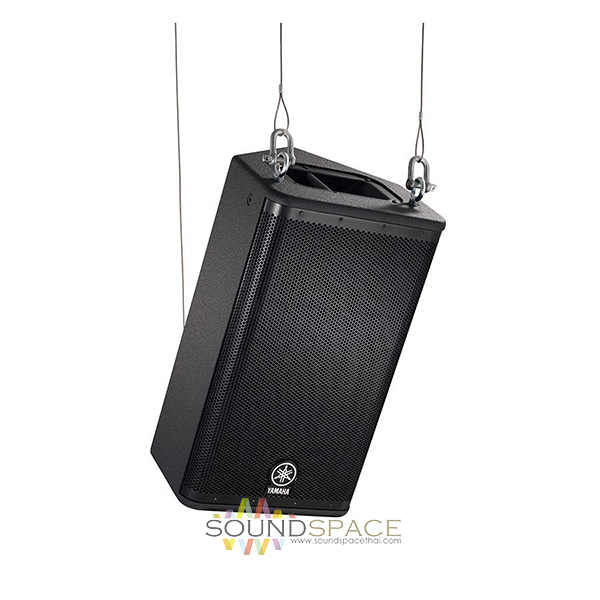

- Stand and pole mountable, with 35mm pole sockets, Integrated M10 rigging points for suspended applications
Specifications
| General specifications | DSR112 | |
|---|---|---|
| Speaker type | 12″ 2-way, Bi-amp Powered Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 55Hz ~ 20kHz | |
| Frequency response (-3dB) | 60Hz ~ 18kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 12″ cone |
| HF | 2″ Titanium diaphragm compression driver | |
| Crossover | FIR-X tuning (linear phase FIR filter) 1.7kHz | |
| Output power | Dynamic: 1500W (LF: 1020W, HF: 480W), Continuous: 1300W (LF: 850W HF: 450W) | |
| Maximum output level (1m; on axis) | 134dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 (Balanced), TRS Phone Jack x1 (Balanced) OUTPUT:XLR-3-32 x1 (Balanced), Parallel connection with INPUT | |
| Processors | D-CONTOUR (Dynamic CONTOUR) | |
| Power consumption | 100W | |
| Flying and mounting hardware | 3 x M10 (TOP L/R 1pc each, Bottom rear 1pc) | |
| Pole socket | 35mm (Bottom Board) | |
| Dimensions | W | 370mm (14 5/8″) |
| H | 638mm (25 2/8″) | |
| D | 368mm (14 4/8″) | |
| Net weight | 21.2kg (47lbs) | |
