ลำโพง YAMAHA CZR12 2-Way Passive Loudspeaker 12″

Description

Yamaha CZR12 2-Way Passive Loudspeaker 12″ 800W

ลำโพงแบบไม่มีกำลังขยายในตัว Passive Loudspeaker Yamaha CZR12 เป็นลำโพงแบบ 2-way, bass-reflex ขนาดดอกลำโพง 12 นิ้ว เสียงแหลม 2 นิ้ว ทนกำลังขับ 800 วัตต์ (Program) Passive or Bi-Amp Configurable, Rotatable Horn (0° or -7°), For Live Stage, Theatre, DJ Setups

The Yamaha CZR12 is a 2-way passive loudspeaker designed for main/FOH and floor monitor applications. From live bands at outdoor festivals to DJ’s in clubs, the speaker is well suited for a range of live performance and installed sound environments.

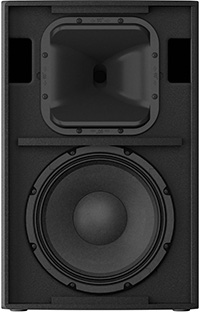

The CZR12 requires 800W of power to drive the 12″ woofer and 2″ compression driver, which combine to provide a frequency range of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 129 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt the acoustic dimensions of a venue. The constant directivity (CD) horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.

To maximize performance, the CZR12 can be configured for bi-amplification, which allows two independent amplifier channels to power the woofer and compression driver separately. Yamaha recommends the use of a DSP speaker processor or a power amplifier with integrated DSP, such as Yamaha’s PX Series amplifiers, in order to set crossovers, limiting, and equalization to ensure the best performance.

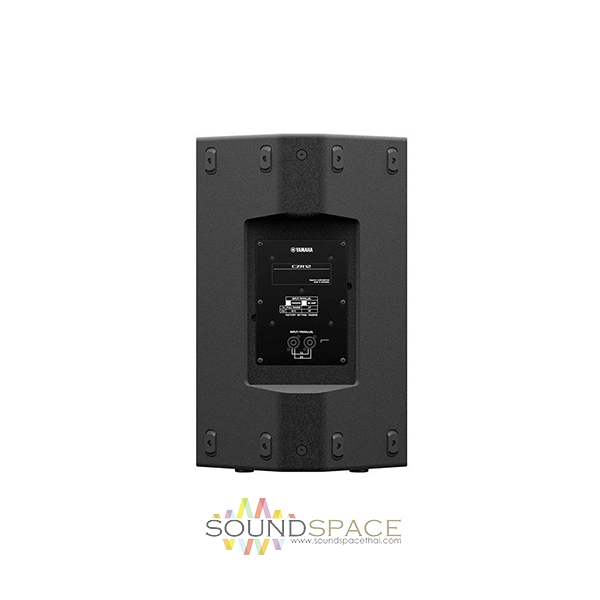

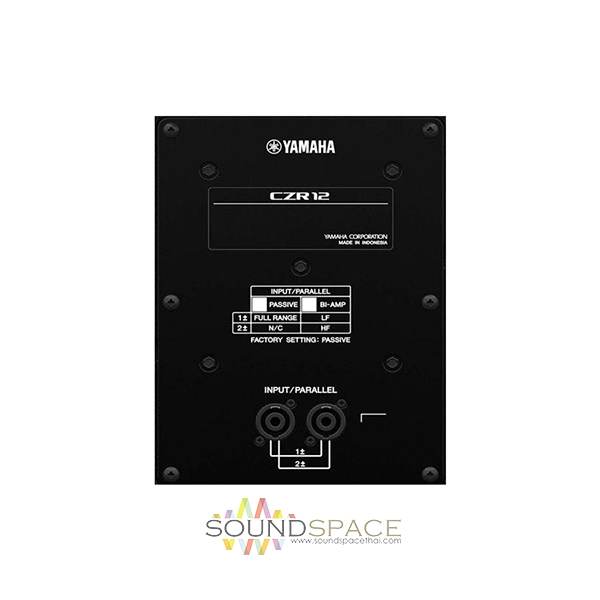

The rear panel offers two Neutrik SpeakON NL4MP connectors, which are configured in parallel and allow for additional speakers to be daisy-chained. There are twelve M10 rigging points for permanent installations, as well as two pole cups (0 & -7°) for deploying in a mobile setting.

Features:

• 2-way loudspeaker with a 2” HF and a 12″ LF
• Features Yamaha’s own Wide Dispersion CD Waveguide Horn
• High power 800W(PGM) power handling and Bi-amp capable
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
