ชุดสตรีมมิ่ง YAMAHA AG03MK2 LSPK Live Streaming Pack
ชุดอุปกรณ์ไลฟ์สตรีม YAMAHA AG03MK2 LSPK Livestreaming Package ในชุดประกอบด้วย AG03MK2 Mixer and USB Audio Interface 1 เครื่อง, ไมโครโฟน YCM01 Cardioid Condenser Microphone 1 ตัว และหูฟัง YH-MT1 1 อัน พร้อมสายไมค์และสาย USB, มี2สี สีขาวและสีดำ
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿13,000.00
Description
YAMAHA AG03MK2 LSPK Live Streaming Pack
ชุดอุปกรณ์ไลฟ์สตรีม YAMAHA AG03MK2 LSPK Livestreaming Package ในชุดประกอบด้วย AG03MK2 Mixer and USB Audio Interface 1 เครื่อง, ไมโครโฟน YCM01 Cardioid Condenser Microphone 1 ตัว และหูฟัง YH-MT1 1 อัน พร้อมสายไมค์และสาย USB, มี2สี สีขาวและสีดำ

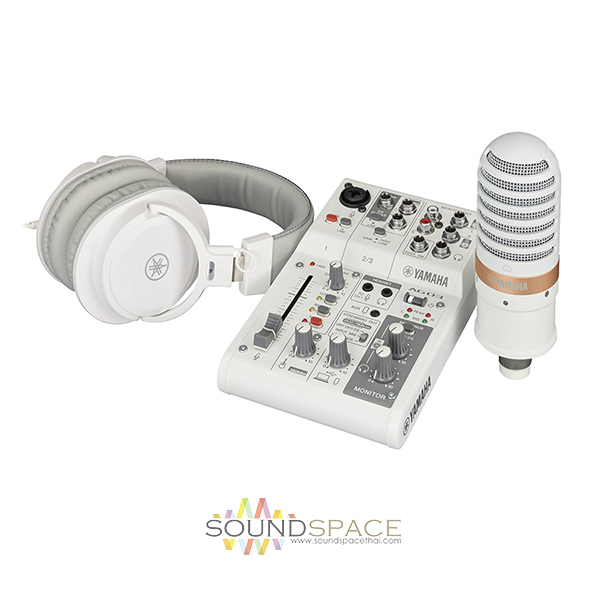

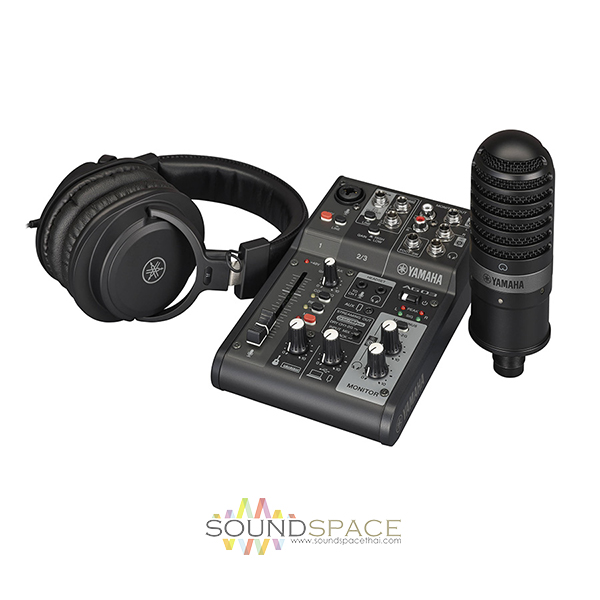

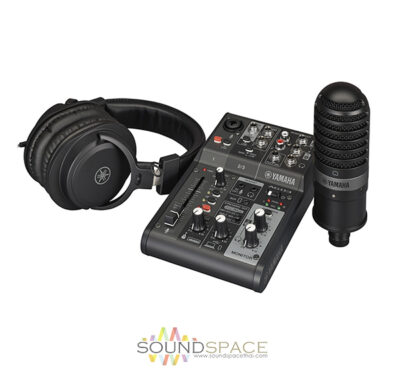

The AG03MK2 LSPK (Live Streaming Package) is a full streaming setup that includes, and centers around an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market.
The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.
Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.
Features:
- AG03 Mk2 3-channel mixer and USB audio interface provides an intuitive, powerful, and diverse engine for your streaming setup
- Onboard DSP controls in the AG03 Mk2 allow for flexible, precise control of your stream with low latency, including compression, EQ, filtering, and reverb
- Precision interfacing tools let you stay in control of what gets heard and how, including the built-in loopback mode that allows you to supplement your inputs with audio from your Mac/PC
- Class compliance mode for iPad affords fine-tuned control of DSP effects via Yamaha’s AG DSP Controller app
- +48V phantom power option is ideal for use of the YCM01 or any other condenser mic
- YCM01 condenser microphone adopts a cardioid pattern for focused sensitivity, ideal for studio recording, instrumental performance, livestreaming, and more

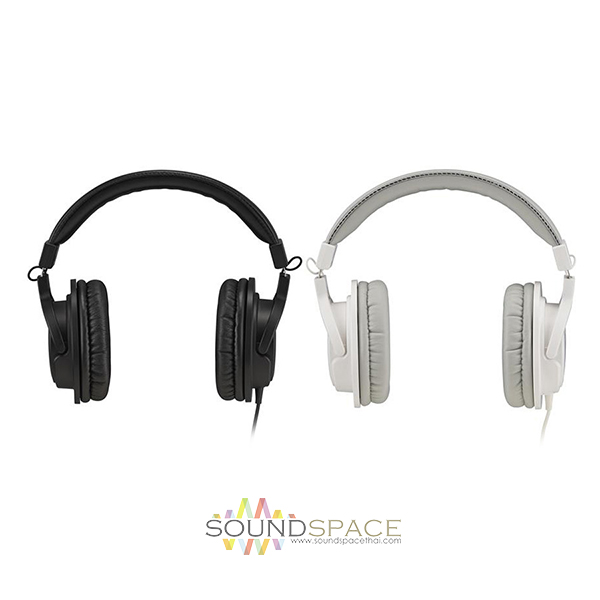

- YHMT1 studio-quality headphones promise high-fidelity audio to help you monitor your mix in real time
- Included USB 2.0 and XLR microphone cables means you’re ready to connect and stream right away
Specifications
Mixer AG03MK2
| Number of Analog Input Channels | 3 (1 Mono / 1 Stereo) |
| Number of Mic Preamps | 1 |
| Analog Output Channels | 1 x Stereo Control Room/Monitor Output 1 x Stereo Tape/Record Output 1 x Stereo Headphone Output |
| Max I/O Capacity | 3 x Input / 2 x Output |
| Mix Routing | 1 x Insert per Mono Input Channel, Stereo Input Channel |
| Faders | 1 x 2.4″ / 60 mm Channel Fader |
| Meters | Main Meter: 2 x 2-Segment LED |
| Input Pad | -26 dB (Line Inputs, Hi-Z Inputs) |
| Dynamic Processing | Input Channels: Compressor |
| EQ | Input Channels: 4-Band Parametric |
| Built-In Effects | 1 x Stereo Reverb |
| Sample Rates | Up to 192 kHz |
| Bit Depth | Up to 24-Bit |
| Frequency Response | 20 Hz to 48 kHz (at 192 kHz) |
| Crosstalk | -80 dB |
| EIN | -128 dBu |
| Noise Floor | -103 dBu |
| THD+N | Analog Input to Analog Output: 0.01% at Min Gain (+4 dBu) |
| Analog Inputs | 1 x Combo XLR-1/4″ 3-Pin Balanced Mic/Line Input 1 x 1/4″ TS Unbalanced Line/Hi-Z Input 1 x 1/4″ TS Unbalanced Line Input 1 x 1/8″ / 3.5 mm TRS Balanced Mic/Aux Input 1 x 1/8″ / 3.5 mm TRRS Balanced Stereo Line Input |
| Analog Outputs | 2 x RCA Coaxial Unbalanced Mono Monitor/Record Output (1 Stereo Pair) 2 x 1/4″ TS Unbalanced Mono Monitor/Record Output (1 Stereo Pair) 1 x 1/4″ TRS Balanced Stereo Headphone Output 1 x 1/8″ / 3.5 mm TRRS Unbalanced Stereo Output 1 x 1/8″ / 3.5 mm TRS Unbalanced Stereo Output |
| Phantom Power | +48 V, Selectable On/Off |
| Digital I/O | None |
| MIDI I/O | None |
| USB | 1 x USB Type-C (USB 2.0, 2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection) |
| Bluetooth | None |
| OS Compatibility | macOS Windows iOS |
| Mobile Device Compatibility | iPad iPhone |
| Internet Connection | Required for Software/Driver Download, Media Streaming |
| Required Hardware | USB Port |
| DC Input Power | 5 VDC at 900mA (USB Bus Power) |
| Power Consumption | 4.5 W (Maximum) |
| Rack Mountable | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 5 x 2.5 x 7.9″ / 12.6 x 6.3 x 20.1 cm |
| Weight | 1.8 lb / 0.8 kg |

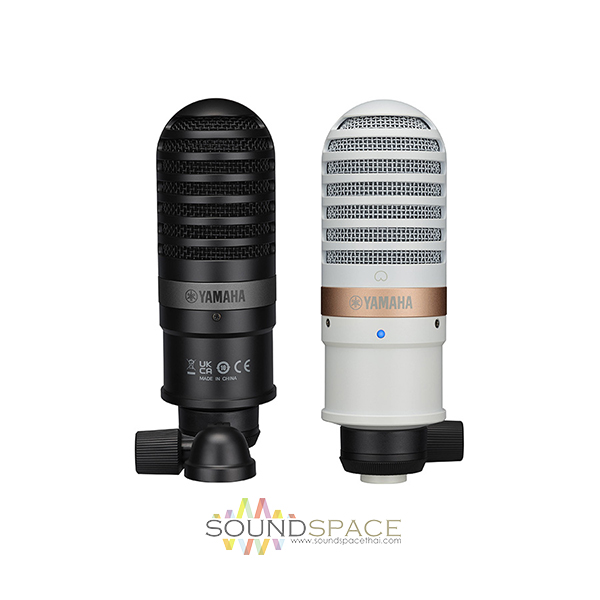

Microphone YCM01
| Primary Applications | Studio Recording |
| Form Factor | Stand/Boom Mount |
| Intended Sound Sources | Vocals, Speech/Voice Over, Instrument |
| Sound Field | Mono |
| Capsule | 1 x Electret Condenser |
| Polar Pattern | Cardioid |
| Orientation | Side Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Gain Adjustment | None |
| Indicators | 1 x Blue Single LED (Power) |
| Frequency Range | 30 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL |
| Impedance | 200 Ohms ± 30% at 1 kHz |
| Load Impedance | ≥ 1000 Ohms |
| Sensitivity | -37 dB |
| Equivalent Noise Level | 23 dB A-Weighted |
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector | None |
| Operating Voltage | 48 V |
| Operating Current Consumption | 2 mA |
| Color | White |
| Mounting | Boom, Floor Mic Stand (with Included Hardware) |
| Mounting Thread Size | Not Specified by Manufacturer |
| Included Case | None |
| Included Filters | None |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | ø: 2.2 x H: 6.5″ / ø: 55 x H: 166 mm |
| Weight | 0.9 lb / 0.4 kg |
