มิกเซอร์ YAMAHA AG03MK2 Live Streaming Mixer

Name: มิกเซอร์ YAMAHA AG03MK2 Live Streaming Mixer
Price: 6500.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงสำหรับงานสตรีมมิ่ง Yamaha AG03MK2 เป็นมิกเซอร์แบบ 3 ชาแนลพร้อมออดิโออินเตอร์เฟส, 1-Mic/Line Combo Inputs, Two 1/4″ Line Inputs, Two RCA Inputs, 3.5mm TRRS In/Out for Smartphone, 24-bit/192kHz Resolution and Built-in DSP, มี2สี สีดำและสีขาว

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿6,500.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: YAMAHA

Description

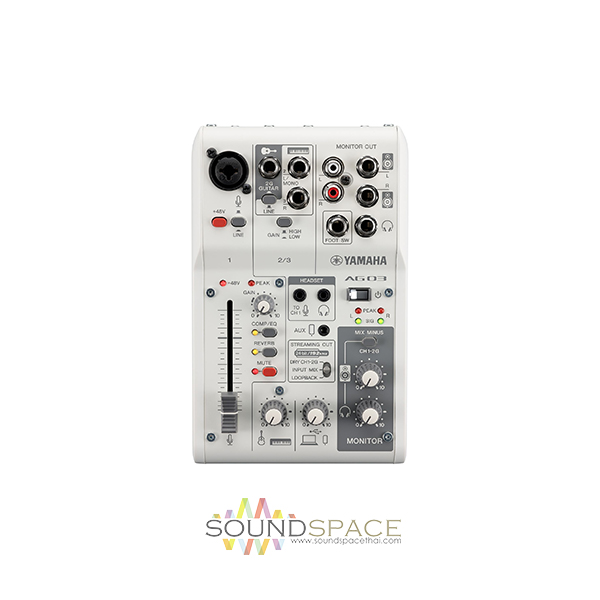

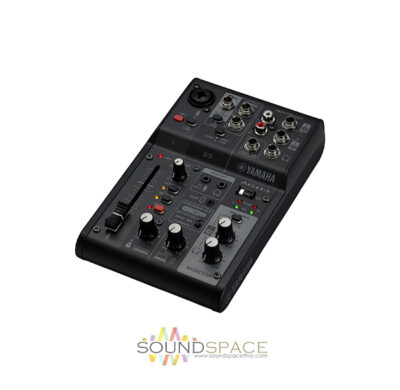

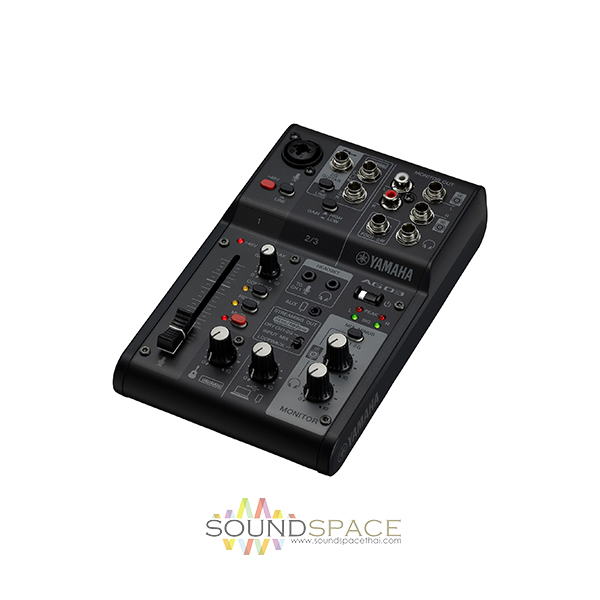

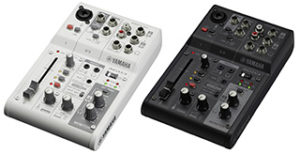

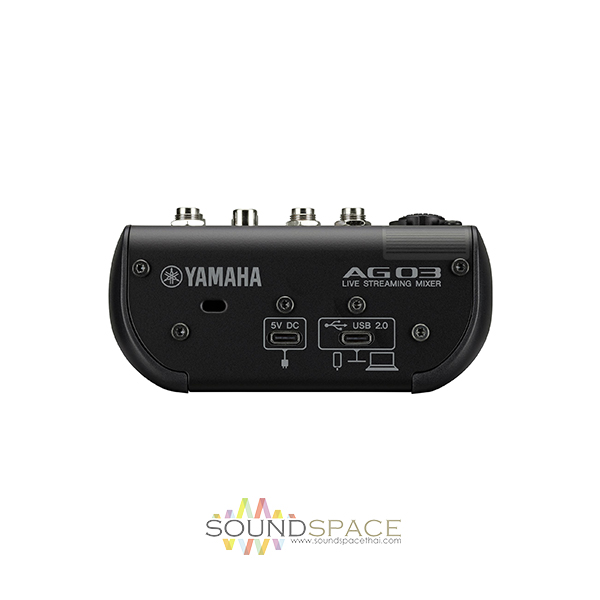

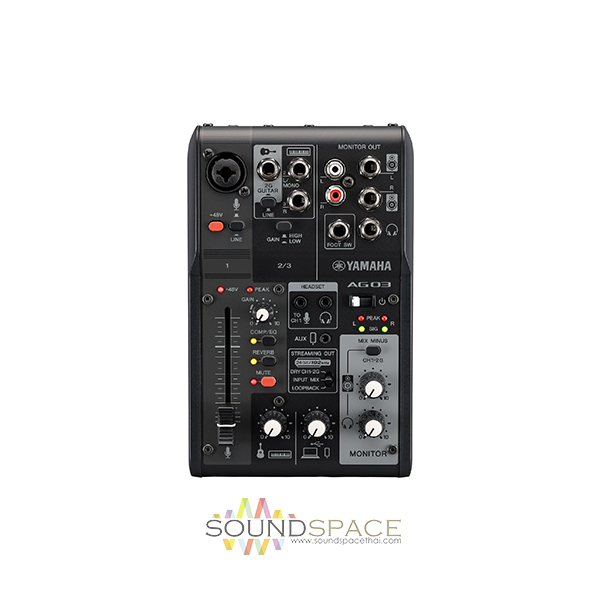

Yamaha AG03MK2 3-Ch Live Streaming Mixer and USB Audio Interface

With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality.

The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications.

Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.

Features:

USB connectivity means easy use for a variety of streaming needs
3-channel mixer enables opportunity for numerous microphone and instrument inputs
24-bit/192kHz audio resolution guarantees high-quality output
Built-in DSP provides onboard FX and control, including compression, EQ, filtering, and reverb
Precision interfacing tools let you stay in control of what gets heard and how, including the built-in loopback mode that allows you to supplement your inputs with audio from your Mac/PC
Class compliance mode for iPad connection permits for even more control options, including the Cubasis LE production app, and the AG DSP Controller app
iOS connectivity incorporates use of apps such as Zoom, Skype, Teams, and FaceTime into your live stream, all from your device
+48V phantom power option is ideal for use of a condenser microphone, if needed
1/8-inch/3.5mm 4-pole mini I/O jack supplies more opportunities for audio inclusion, including sound effects, cues, and background music from another device — with a dedicated mix control

Specifications

Mixer

Number of Analog Input Channels	3 (1 Mono / 1 Stereo)
Number of Mic Preamps	1
Analog Output Channels	1 x Stereo Control Room/Monitor Output 1 x Stereo Tape/Record Output 1 x Stereo Headphone Output
Max I/O Capacity	3 x Input / 2 x Output
Mix Routing	1 x Insert per Mono Input Channel, Stereo Input Channel
Faders	1 x 2.4″ / 60 mm Channel Fader
Meters	Main Meter: 2 x 2-Segment LED

Signal Processing

Input Pad	-26 dB (Line Inputs, Hi-Z Inputs)
Dynamic Processing	Input Channels: Compressor
EQ	Input Channels: 4-Band Parametric
Built-In Effects	1 x Stereo Reverb

Digital Audio

Sample Rates	Up to 192 kHz
Bit Depth	Up to 24-Bit

Performance

Frequency Response	20 Hz to 48 kHz (at 192 kHz)
Crosstalk	-80 dB
EIN	-128 dBu
Noise Floor	-103 dBu
THD+N	Analog Input to Analog Output: 0.01% at Min Gain (+4 dBu)

Connectivity

Analog Inputs	1 x Combo XLR-1/4″ 3-Pin Balanced Mic/Line Input 1 x 1/4″ TS Unbalanced Line/Hi-Z Input 1 x 1/4″ TS Unbalanced Line Input 1 x 1/8″ / 3.5 mm TRS Balanced Mic/Aux Input 1 x 1/8″ / 3.5 mm TRRS Balanced Stereo Line Input
Analog Outputs	2 x RCA Coaxial Unbalanced Mono Monitor/Record Output (1 Stereo Pair) 2 x 1/4″ TS Unbalanced Mono Monitor/Record Output (1 Stereo Pair) 1 x 1/4″ TRS Balanced Stereo Headphone Output 1 x 1/8″ / 3.5 mm TRRS Unbalanced Stereo Output 1 x 1/8″ / 3.5 mm TRS Unbalanced Stereo Output
Phantom Power	+48 V, Selectable On/Off
Digital I/O	None
MIDI I/O	None
USB	1 x USB Type-C (USB 2.0, 2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection)
Bluetooth	None

Compatibility

OS Compatibility	macOS Windows iOS
Mobile Device Compatibility	iPad iPhone
Internet Connection	Required for Software/Driver Download, Media Streaming
Required Hardware	USB Port
