ชุดไวเลสไมโครโฟน Xvive U3C Wireless Microphone System 2.4GHz
ชุดอุปกรณ์ที่ใช้เปลี่ยนไมค์สายให้เป็นไมค์ไวเลส แบบคอนเด็นเซอร์ Xvive Audio U3C , Utilizes the 2.4 GHz band for license-free worldwide use, Plug-on transmitter supplies 12V or 48V phantom power, Up to 90 feet of wireless range
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿6,900.00
Description
Xvive Audio U3C Plug-On Wireless System for Condenser Microphones (2.4 GHz)
ชุดอุปกรณ์ที่ใช้เปลี่ยนไมค์สายให้เป็นไมค์ไวเลส แบบคอนเด็นเซอร์ Xvive Audio U3C , Utilizes the 2.4 GHz band for license-free worldwide use, Plug-on transmitter supplies 12V or 48V phantom power, Up to 90 feet of wireless range

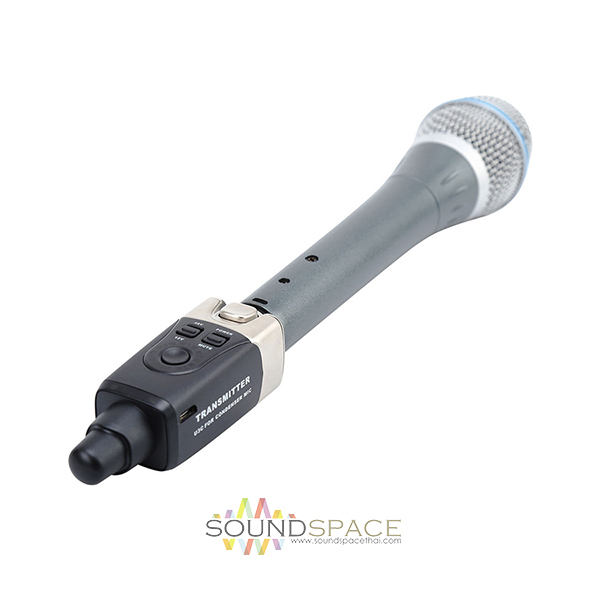

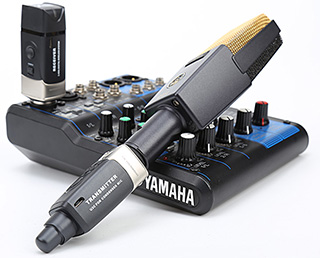

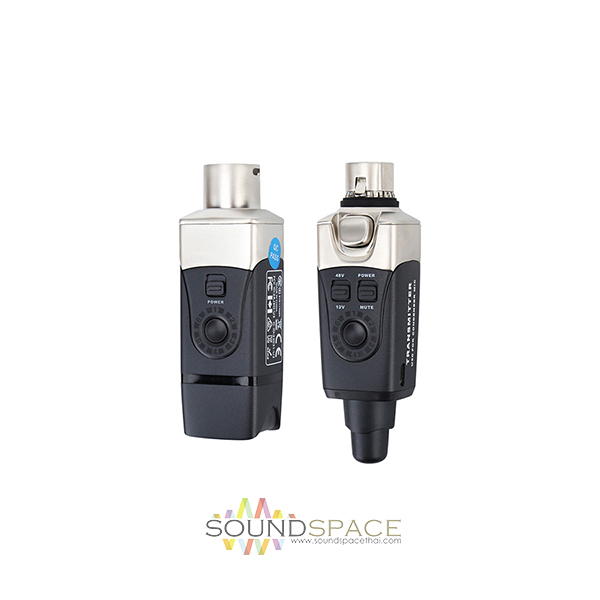

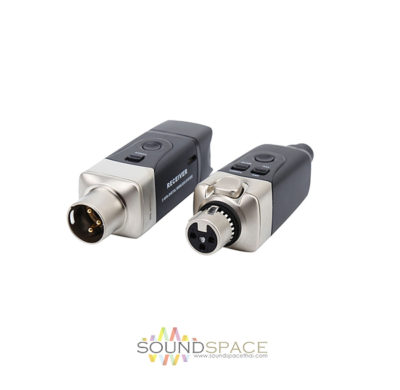

Easily turn any condenser microphone into a wireless mic with the Xvive Audio U3C Set 2.4 GHz wireless plug-on system. Ideal for capturing vocals and speech in live stage applications, dialogue on set, or even demos in the studio, the U3C Set features a lightweight transmitter that connects directly to your XLR-equipped condenser mic, a compact receiver that plugs into the XLR input of an audio mixer or interface, and easy operation with no menus or cables.
The transmitter supplies 12V or 48V phantom power to accommodate your favorite condenser microphone, and sends uncompressed 24-bit / 48 kHz audio to the receiver up to 90′ away. The internal rechargeable batteries power the U3C Set for enough time to handle an entire concert, worship service, or long-form presentation.
Features:
- Utilizes the 2.4 GHz band for license-free worldwide use
- Uncompressed 24-bit / 48 kHz audio resolution with high dynamic range and a broad 20 Hz to 20 kHz frequency response
- Low system latency under 5 ms
- Simple setup with no cables required
- Plug-on transmitter supplies 12V or 48V phantom power for condenser microphones
- Receiver plugs directly into the XLR input of a mixing console, an audio interface, or an active PA system
- Easy menu-free channel selection on transmitter and receiver
- Six available channels allow up to six systems to be used at one time (additional systems available separately)
- Balanced 3-pin XLR input and output connectors
- Transmitter power/mute switch for easy signal control at the mic
- Internal rechargeable batteries provide three to seven hours of operating time for the transmitter and up to five hours of use for the receiver
- Includes USB cable for convenient recharging
- For use with balanced condenser microphones only—phantom power may permanently damage unbalanced or dynamic microphones
Specifications
| Wireless Transmission | Digital 2.4 GHz |
| Number of RF Channels | 6 |
| Included Transmitters | 1 x Plug-On |
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 to 2483.5 MHz |
| RF Bandwidth | 483.5 MHz |
| Max Operating Range | 90′ / 27.4 m |
| Max Systems per Setup | 6 |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | <5 ms |
| Dynamic Range | 110 dB |
| Encryption | None |
| Form Factor | Plug-In |
| Mounting Options | Plug-In |
| Antenna | 2 x 1/4 Wave Sleeve Dipole, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic Output |
| Frequency Response | 20 Hz to 20 kHz-3 (Dependent on Mic) |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x Micro-USB (Charging) |
| Impedance | XLR Output: 470 Ohms (Balanced) |
| Approximate RF Sensitivity | -88 dBm |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Internal Battery Capacity | 860 mAh |
| Battery Charging Time | 2 Hours |
| Approx. Battery Life | 5 Hours |
| AC/DC Power Adapter | VDC Not Included |
| Display & Indicators | 1 x LED (Channel) 1 x LED (Sync) 1 x LED (Battery Status, Power) |
| Housing | Metal, Plastic |
| Operating Temperature | 0 to 134°F / -18 to 57°C |
| Dimensions | 1.2 x 3.9 x 1.1″ / 31.0 x 98.0 x 29.0 mm |
| Weight | 3.2 oz / 92.0 g |
| Form Factor | Plug-On |
| RF Output Power | Up to 10 mW (EIRP) |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) |
| Phantom Power | +12 V +48 V |
| Pad | None |
| Muting | Off/On Switch |
| Audio Input Level | 2.8 Vpp (Max) |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz-3 (Dependent on Mic) |
| Sync Method | Manual |
| Antenna | 1 x 1/4 Wave Sleeve Dipole, Fixed |
| Approximate RF Sensitivity | -88 dBm |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Internal Battery Capacity | 1000 mAh |
| Battery Charging Time | 2 Hours |
| Approx. Battery Life | 7 Hours |
| USB/Lightning Connectivity | 1 x Micro-USB (Charging) |
| Display & Indicators | 1 x LED (Channel) 1 x LED (Battery Status, Power) |
| Housing | Metal, Plastic |
| Operating Temperature | 0 to 134°F / -18 to 57°C |
| Dimensions | 1.2 x 3.9 x 1.1″ / 31.0 x 98.0 x 29.0 mm |
| Weight | 3.8 oz / 108.0 g |
