ลำโพงไลน์อาเรย์ Turbosound LIVERPOOL TLX84 Line Array
ลำโพงกลางแจ้งไลน์อาเรย์ แบบไม่มีกำลังขยาย แบบ 2 ทาง ขนาดดอกลำโพง 8″ 450 Watts Continuous, 1,800 Watts Peak ตอบสนองความถี่ 70 Hz – 17 kHz ±3 dB, 65 Hz – 20 kHz ±10 dB
ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม
฿53,500.00 ฿42,800.00
Description
ลำโพงแขวนไลน์อาเรย์ Turbosound LIVERPOOL TLX84 8″
ลำโพงกลางแจ้งไลน์อาเรย์ แบบไม่มีกำลังขยาย แบบ 2 ทาง ขนาดดอกลำโพง 8″ 450 Watts Continuous, 1,800 Watts Peak ตอบสนองความถี่ 70 Hz – 17 kHz ±3 dB, 65 Hz – 20 kHz ±10 dB
The TURBOSOUND LIVERPOOL series is a high performance modular loudspeaker system designed for use in a variety of small to medium scale portable and fixed install applications ranging from theatres and live music venues and corporate events, and in conjunction with TURBOSOUND LIVERPOOL series subwoofers is ideally suited to front of house, outfill and delay speaker usage.

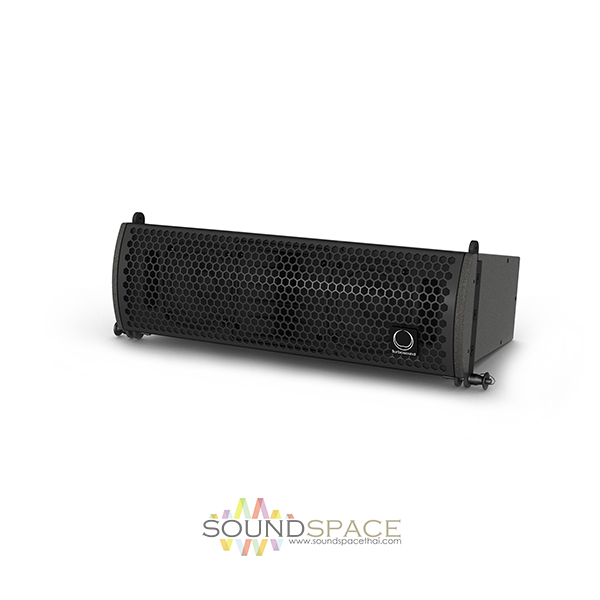

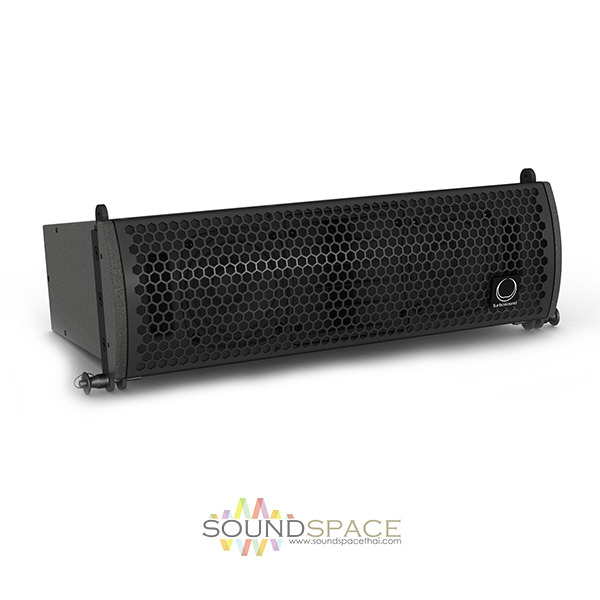

The TLX84 is a compact trapezoidal two way bi-amped 1,800 Watt line array element consisting of two 8″ low frequency drivers with weather resistant cones, and two titanium dome 1″ compression drivers with copper clad aluminium coils loaded by a 100° horizontal by 10° vertical dispersion waveguide providing wide and even audience coverage.

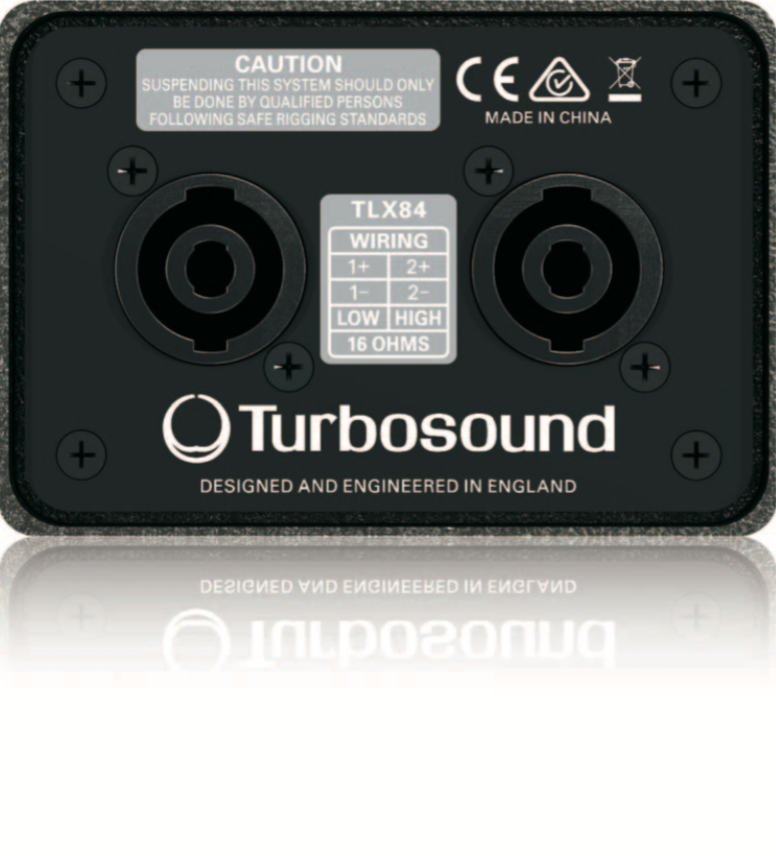

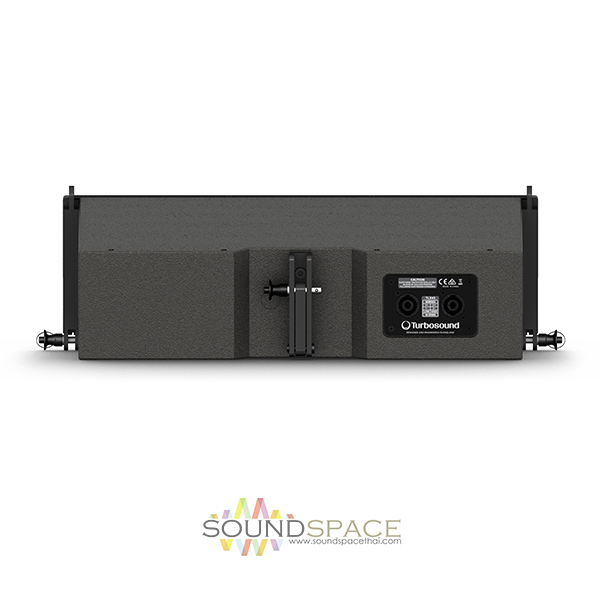

The 15 mm (5/8″) birch plywood cabinet is equipped with integrated flying hardware allowing quick and easy assembly of arrays of up to 12 elements per TLX84–FLB flybar. A rugged powder coated perforated steel mesh grille is fitted and the cabinet is finished in hard wearing semi matt black paint. A recessed panel at the rear of the cabinet carries two parallel-linked NeutrikspeakON* NL4 connectors for input and link through connections.
Specifications
ลำโพงไลน์อาเรย์ Turbosound LIVERPOOL TLX84
- Dimensions (H x W x D) 740 x 245 x 486 mm (29.1 x 9.6 x 19.1″)
- Net Weight 26.7 kg (58.86 lbs)
- Components 2 x 8” (203 mm) LF Drivers, 2 x 1.35” (35 mm) HF Compression Drivers
- Frequency Response 70 Hz – 17 kHz ±3 dB, 65 Hz – 20 kHz ±10 dB
- Dispersion 100° H x 10° V @ -6 dB Points
- Sensitivity (1 W @ 1 M) HF: 100 dB (single cabinet), LF: 96 dB (single cabinet w/ x2 LF drivers, FS)
- Power Handling 450 Watts Continuous, 1,800 Watts Peak
- Calculated Max SPL HF: 118 dB Continuous, 124 dB Peak, LF: 122.5 dB Continuous, 128.5 dB Peak
- Nominal Impedance LF: 16 Ohms, HF: 16 Ohms
- Construction 15 mm Birch Plywood, Finished in Semi Matt Black Paint
- Grille Powder Coated Perforated Steel
- Connectors 2 x NeutrikspeakON* NL4, wired Pin 1+: LF Positive, Pin 1- : LF Negative, Pin 2+: HF Positive, pin 2- : HF Negative
- Protection
- Rigging Adjustable in 1° Increments
- Spares & Accessories TLX84-FLB Ground Stack and Fly Bar
- TLX84-RC4 Road Case for 4 x TLX84
