ออดิโออินเตอร์เฟส TASCAM US322 USB Audio Interface
TASCAM US322 2 Input/2 Output, 2 Mic Preamps with 48V Phantom Power, Balanced Line Inputs, Built-In Compressor, EQ and Reverb, Low Latency Monitoring via DSP Mixer
ราคาไม่รวมภาษีมูลค่าเพิ่ม
฿7,200.00 ฿7,100.00
Description

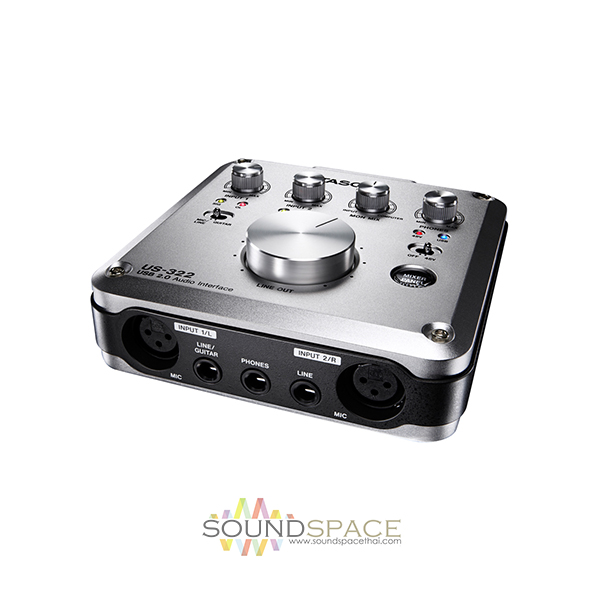

TASCAM US322 USB Audio Interface
ออดิโออินเตอร์เฟส TASCAM US322 2 Input/2 Output, 2 Mic Preamps with 48V Phantom Power, Balanced Line Inputs, Built-In Compressor, EQ and Reverb, Low Latency Monitoring via DSP Mixer
The US-322 from Tascam is two input/two output USB 2.0 digital audio interface that features two low noise microphone preamps with phantom power, a built-in digital mixer and effects, and low latency monitoring. Steinberg’s Cubase LE 6 software bundle is included to facilitate out of the box use on a user’s Mac or Windows based computer.
Inputs include XLR and 1/4″ TRS connectors with the ability to switch Line 1 input to a Hi-Z input for direct connection of electric guitars or other electronic instruments. The converters allow for up to 24-bit/96kHz recording and the internal processing is 24-bit throughout, although internal effect use is limited to 44.1 or 48kHz sound sources.
The DSP mixer functions in two modes. The multi-track mode is ideal for music creation delivering independent monitor mixing with send-levels, as can be found on an inline-console. In addition, the mode delivers mono monitoring. The stereo-mix mode is geared towards easy and convenient podcast recording or broadcasting.
On-board DSP effects include a compressor, 3-band EQ, and reverb. Input effects can be used during recording, while the reverb can be applied to any monitoring signal at the same time. Low-latency monitoring is available from the on-board digital mixer, and volume can be monitored and adjusted easily with the oversized dedicated top panel knob.
A conveniently placed “Mixer Panel” button located on top of the unit provides a one-click recall function for the DSP-mixer. The unit is housed in a compact, aluminum desktop housing and is USB bus powered, especially useful for mobile use.
Features:
- Two input/two output USB audio interface in a convenient aluminum desktop housing
- Two HDDA (High Definition Discrete Architecture) microphone preamps with +48V phantom power and XLR inputs
- Two 1/4″ TRS line inputs with Line 1 switchable to a Hi-Z input for connecting electric instruments
- Low-latency monitoring via on-board DSP mixer
- Digital mixer delivers two operation modes with Stereo Mix Mode for Internet broadcasting and movie file creating/editing, and Multi-Track Mode for dedicated monitor mixing
- Built-in digital effects include compressor and 3-band EQ inserts, along with a reverb send
- Dedicated “Mixer Panel” button recalls DSP mixer with a single mouse click
- Two 1/4″ TRS balanced outputs with two RCA phono unbalanced outputs (both output the same signal)
- Large line out volume knob
- Headphone output
- USB bus-powered, perfect for mobile recording
- Up to 24-bit/96 kHz recording
- Includes Steinberg Cubase LE 6 software bundle
Specifications
AUDIO INTERFACE USB TASCAM US322
| Sample Rates | 44.1, 48, 88.2 and 96 kHz |
| Bit Rates | 16- or 24-bit (internal operation is 24-bit) |
| Inputs | 2 x XLR Microphone
2 x 1/4″ TRS phone Line (balanced) |
| Input Impedance | Microphone: 2.2kΩ
Line: 15kΩ Instrument: 1MΩ |
| Nominal Input Level | Microphone
-65 dBu (maximum input) -22 dBu (minimum input) Line -39 dBu (maximum input) +4 dBu (minimum input) Instrument -55 dBV (maximum input) -12 dBV (minimum input) |
| Maximum Input Level | Microphone: -6 dBu
Line: +20 dBu Instrument: +4dBV |
| Outputs | 2 x 1/4″ TRS phone Line
2 x RCA phono Line 1 x 1/4″ TRS Headphone |
| Output Impedance | 1/4″ TRS: 100Ω
RCA phono: 200Ω |
| Nominal Output Level | 1/4″ TRS: +4 dBu
RCA phono: -10 dBV |
| Maximum Output Level | 1/4″ TRS: +20 dBu
RCA phono: +6 dBV Headphone: 18mW + 18mW or more (THD + N 0.1% or less 32Ω loaded) |
| Other Connectors | USB Type B, 4-pin (supports USB 1.1)
USB 2.0 high speed mass storage class format |
| Frequency Response | Mic Preamp: 10 Hz to 68 kHz, +0.5/-3.0 dB
Mic In to Line Out: 10 Hz to 40 kHz, +0.5/-3.0 dB Mic In to Phones: 10 Hz to 30 kHz, +0.5/-1.0 dB |
| THD | 0.0045% or less (Mic In to Line Out, Input 1 and 2 knobs at minimum, 88.2/96 kHz) |
| Dynamic Range | ADC: 102 dB (44.1 kHz, A-weighted)
DAC: 106 dB (44.1 kHz, A-weighted) |
| Noise | SNR: 98 dB or more (Mic In to Line Out, Input 1 and 2 knobs at minimum, 88.2/96 kHz)
EIN: -120 dBu or less (Mic In to Line Out, Inputs 1 and 2 knobs at maximum, 88.2/96 kHz) |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Power Requirements | USB bus (5V, maximum 500mA)
2.5W power consumption |
| System Requirements | Mac
OS X Snow Leopard(10.6.8) OS X Lion OS X Mountain Lion Core Audio driver PC Windows XP 32-bit SP3 or more, 64-bit SP2 or more Windows 7, 32- and 64-bit Windows 8, 32- and 64-bit ASIO2.0, WDM(MME) drivers |
| Dimensions (WxDxH) | 5.5 x 5.5 x 1.7″ (140 x 140 x 42mm) |
| Weight | 17.6 oz (500g) |
