มิกเซอร์ดิจิตอล TASCAM Sonicview 16 Digital Mixer
ดิจิตอลมิกเซอร์ TASCAM Sonicview 16, 44 input ch (or 40 mono input ch and 2 stereo input ch) and 4 FX return, FPGA Mix Engine + 32-Bit / 96 kHz AD/DA, Dual 7″ Touchscreens + Motorized Faders, 16 HDIA Microphone Preamps, 16 XLR Mic/Line Input
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿255,800.00
Description
Tascam Sonicview 16 Digital Mixer With Multi-Environment Touch Screens
ดิจิตอลมิกเซอร์ TASCAM Sonicview 16, 44 input ch (or 40 mono input ch and 2 stereo input ch) and 4 FX return, FPGA Mix Engine + 32-Bit / 96 kHz AD/DA, Dual 7″ Touchscreens + Motorized Faders, 16 HDIA Microphone Preamps, 16 XLR Mic/Line Input

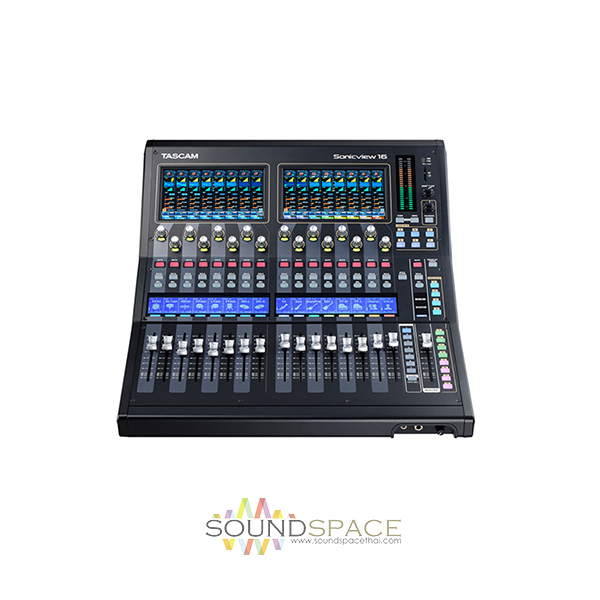

The Tascam Sonicview 16 is a high powered mixing desk with motorised faders per channel, assignable function keys and a state of the art triple screen design. The TASCAM Sonicview 16 offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.
TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.
Features:
- AD/DA conversion: 32 bit / 96 kHz
- Tascam HDIA microphone preamplifier (High-Definition Instrumentation Architecture)
- FPGA mixing engine with 54-bit floating-point processing and 96 kHz sampling rate
- 44 Input channels (40 mono, 2 stereo)
- 22 Flexible output busses + stereo sum with 31-band graphic EQ
- Visual Interactive Ergonomic Workflow (VIEW) interface provides intuitive operation with three view modes
- Multiple simultaneous views via two 7-inch colour touchscreens
- Latency: 2 × Fs (20.8 µs) in mixing engine, 0.51 ms analogue-to-analogue
- Integrated Dante interface with 64 inputs and outputs (supports redundancy, AES67, DDM and SMPTE 2110)
- USB audio interface with 32 inputs and outputs
- Internal two-track recording/playback to SD card or USB drive
- Four multi-effects processors
- 16 + 1 100 mm motorised faders
- 16 Encoders with colour LEDs
- 16 LC displays with colour LEDs for channel names as well as displays for input level and dynamic level reduction
- 18 Individually assignable buttons
- Seven user-defined fader levels and eight DCA groups
- Gigabit Ethernet connection (1000 BaseT)
- Remote control and offline editing via Tascam Sonicview software for Windows, macOS and iOS
- Two Tascam expansion slots (expansion cards available for 32-track SDXC recorders as well as MADI, AES/EBU and analogue signals – not included)
- Power switch with protection
Specifications
| Processing capabilities | |
| Inputs | 52 audio channels (40 mono, 2 stereo, 4 stereo effect returns) |
| Busses | 32 (22 Aux/Group switchable mix busses, 1 stereo main bus, 4 stereo send busses) |
| Built-in effects | 4 |
| Selectable input sources | |
| At 96 kHz | 152 maximum |
| At 48 kHz | 248 maximum |
| Mic/Line (XLR) | 16 |
| Line (RCA) | 4 (2 × stereo) |
| Dante | 32 (96 kHz), 64 (48 kHz) |
| Expansion cards | 2 × 32 (96 kHz), 2 × 64 (48 kHz) |
| USB audio | 32 |
| Built-in player | 2 (1 × stereo) |
| Oscillator | 1 |
| Talkback | 1 |
| Selectable output targets | |
| At 96 kHz | 148 maximum |
| At 48 kHz | 244 maximum |
| Line (XLR) | 16 |
| Dante | 32 (96 kHz), 64 (48 kHz) |
| Expansion cards | 2 × 32 (96 kHz), 2 × 64 (48 kHz) |
| USB audio | 32 |
| Monitor output (analogue) | 2 (1 × stereo) |
| Built-in recorder | 2 (1 × stereo) |
| Inserts | |
| Analogue insertion points | 2 (Mic/Line inputs 7–8) |
| Digital signal processing | |
| Mixing engine | 54-bit floating-point, 96 kHz |
| A/D converters | 32 bit, 96 kHz |
| D/A converters | 24 bit, 96 kHz |
| Digital I/O sampling rate | 96 kHz, 48 kHz |
| Analogue audio inputs and outputs | |
|---|---|
| Mic/Line inputs (balanced, MIC/LINE) | XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| Maximum input level | +12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on) |
| Minimum input level | –62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on) |
| Input impedance | ≥5 kΩ |
| Line inputs (LINE IN (BAL)) | 6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level | +12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on) |
| Minimum input level | –62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on) |
| Input impedance | ≥5 kΩ |
| Inserts (INSERT) | 6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum input level (Return) | +18 dBu |
| Nominal input level (Return) | –2 dBu |
| Input impedance (Return) | ≥5 kΩ |
| Maximum output level (Send) | +18 dBu |
| Nominal output level (Send) | –2 dBu |
| Output impedance (Send) | ≤100 Ω |
| Talkback input (TALKBACK) | XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| Maximum input level | +10 dBu |
| Minimum input level | –65 dBu |
| Gain adjustment range | 0–55 dB |
| Input impedance | ≥5 kΩ |
| Phantom power | +48 V available |
| Stereo inputs (ST IN 1-2 L/R) | RCA pin jacks |
| Maximum input level | +6 dBV (1.995 Vrms) |
| Nominal input level | –10 dBV (0.316 Vrms) |
| Headroom | 16 dB |
| Input impedance | ≥10 kΩ |
| Line outputs (OUTPUT 1–16) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Maximum output level (selectable) | +15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu) +18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu) +20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu) +18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu) +20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu) +22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu) +24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu) |
| Nominal output level (selectable) | +6 dBu (Ref(D): –9 dBFS) +4 dBu (Ref(D): –14 dBFS, –16 dBFS) +4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS) |
| Output impedance | ≤100 Ω |
| Monitor outputs (MONITOR OUT L/R) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Maximum output level | +24 dBu |
| Nominal output level | +4 dBu |
| Output impedance | ≤100 Ω |
| Headphones outputs (PHONES) | 6.3-mm standard stereo jack, 3.5-mm stereo mini jack |
| Maximum output power | 100 mW + 100 mW (32 Ω load, when connected to only one jack) |
| Digital audio inputs and outputs | |
|---|---|
| USB audio | USB Type-B |
| Input (USB to Sonicview) | 32 channels |
| Output (Sonicview to USB) | 32 channels |
| Sampling rates | 48 kHz, 96 kHz |
| Bit depth | 32 bit |
| Dante PRIMARY/SECONDARY | etherCON Cat5e compatible |
| Number of audio channels | 64 channels (48 kHz) 32 channels (96 kHz) |
| Supported modes | Redundant mode, Switched mode |
| Compatible standard | Gigabit Ethernet (1000BASE-T, IEEE 802.3ab) |
| Recommended cables | Cat5e STP or better |
| Control inputs and outputs | |
|---|---|
| GPIO | 25-pin D-sub (8-in/8-out, female, inch-standard) |
| Input circuit | Pull-up (5 V) |
| Output circuit | Open collector Output impedance: 10 Ω Voltage resistance: 20 V Maximum output current: 35 mA |
| Maximum supply current (+5 V) | 50m A |
| Footswitch connector (FOOTSWITCH) | 6.3-mm standard TS jack (Tip: HOT, Sleeve: GND) |
| Network connector (ETHERNET) | RJ45 |
| Compatible standards | 100BASE-TX, 1000BASE-T |
| Protocol | TCP/IP |
| Wordclock input (WORD IN) | BNC |
| Input level | 0.5–5 Vpp |
| Input impedance | 75 Ω ±10% (termination on) |
| Input frequency | 48 kHz, 96 kHz |
| Permissible frequency deviation | ±100 ppm |
| Wordclock output (WORD THRU/OUT) | BNC |
| Output level | TTL level, 5 V |
| Output frequency | 48 kHz, 96 kHz |
| USB port (top panel) | 4-pin USB Type-C (for keyboard and mass storage) |
| Standard | USB 2.0 High Speed (480 Mbit/s) |
| Bus power | 5 V, 0.5 A |
| Classes | HID, mass storage |
| USB port (rear panel) | USB Type-B (for audio interface, dedicated driver required) |
| Standard | USB 2.0 High Speed (480 Mbit/s) |
| Power output for lamp (LAMP) | XLR 4-pin female (pin 4: +12V, pin 3: GND) |
| Power supply voltage | DC 0–12 V (adjustable brightness) |
| Maximum output power | 5 W |
| Audio performance | |
|---|---|
| Mic amp EIN (equivalent input noise) | ≤–128 dBu |
| Frequency response (Mic/Line input to Line output) | 20 Hz – 40 kHz: +0 dB, –1.0 dB (JEITA) |
| Dynamic range | ≥108 dB (Mic/Line input to Line output, PAD off, TRIM min., Ref(D) –20 dBFS, internal word clock, JEITA) ≥110 dB (Mic/Line input to Dante output, PAD off, TRIM min., internal word clock, JEITA) ≥112 dB (Dante input to Line output, PAD off, TRIM min., internal word clock, JEITA) |
| Distortion | ≤0.002 % (Mic/Line input to Line output, +4 dBu input signal, PAD off, TRIM min., JEITA) ≤0.002 % (Mic/Line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA) ≤0.002 % (Dante input to Line output, 0 dBFS input signal, JEITA) |
| Crosstalk | ≥–100 dB (Mic/Line input to Line output, 1 kHz sine wave, JEITA) |
| 0 dBu = 0.775 Vrms / Ref(D): Digital Reference Level |
| System requirements for connected computers | |
|---|---|
| USB audio interface | 64-bit Windows- or Mac-compatible computer with a USB 2.0 (or higher) port |
| Remote control | 64-bit Windows- or Mac-compatible computer with network access, Apple iPad |
| Supported operating systems | see the separate section above |
| Recorder/Player specifications (with IF-MTR32 expansion card installed) | |
|---|---|
| Storage media | SDHC cards (8–32 GB, Class 10 or better) SDXC cards (64–128 GB, Class 10 or better) USB flash drives (8–128 GB, playback only) |
| Note: A list of SD cards that have been confirmed for use with this unit can be found on our web site. | |
| File systems | SDHC card, USB storage: FAT32 SDXC card, USB storage: exFAT |
| Recording/playback formats | |
| WAV/BWF | Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels |
| MP3 | Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s |
| AAC | Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s |
| Power supply and other specifications | |
|---|---|
| Main displays | 2 7-inch (17,8 cm) colour touchscreens, 800 × 480 px |
| Channel displays | 3 monochrome LC displays, 384 × 68 px |
| Mains power | AC 100–240 V, 50/60 Hz |
| Power consumption | 65 W |
| Overall dimensions (width × height × depth) | 472 mm × 228 mm × 554 mm |
| Weight | 13 kg |
| Permissible operating temperature range | 0–40 °C |
