ดิจิตอลสเตจบ๊อกซ์ TASCAM SB-16D 16×16 Dante Stage Box

Description

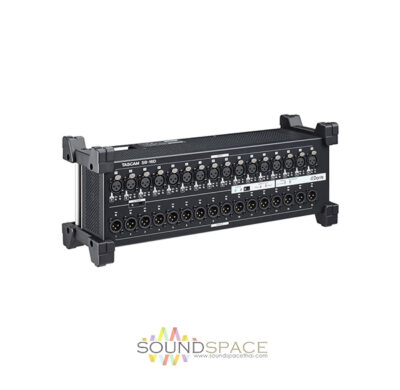

TASCAM SB-16D 16×16 Dante Stage Box and Audio Interface

สเตจบ๊อกซ์ TASCAM SB-16D, 16-Ins &16-Outs, Dante Analog Converter, TASCAM IO Control Software, Use Standalone or with Sonicview Mixers, 16 XLR Mic/Line Input Channels, Up to 96 kHz sampling and 32-bit precision

Audio professionals in search of I/O expansion for the Sonicview digital mixing console will be impressed with the TASCAM SB-16D, a 16-in / 16-out Dante stage box and standalone audio interface with built-in 32-bit / 96 kHz AD/DA converters and Class 1 HDIA (High Definition Instrumentation Architecture) microphone preamps, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses.

The stagebox includes 16 XLR inputs and 16 XLR outputs plus primary/secondary Dante I/O connectors and a DB-25 GPIO connector for events and relay applications. Control the SB-16D with the TASCAM IO Control app or with Sonicview series mixers. The stage box can be used on the floor, stacked, or racked in a standard 19″ rack case (3 RU). The SB-16D ships with a rackmount kit and mounting hardware

Features:

• Versatile 16-in/16-out configuration with redundancy
• Multiple boxes can be chained simultaneously in a Dante network for extended I/O
• 16 XLR mic/line inputs and 16XLR line outputs can accommodate a wide variety of studio situations, with stunning Class 1 HDIA mic preamps
• SIG OL LED signal indicators on both the XLR inputs and outputs to easily monitor your signal
• World-class 96kHz sampling and 32-bit precision for maximum fidelity
• Can be either floor installed or integrated into a 3U rack space
• Extensive integration with TASCAM Sonicview mixers, with full control of parameters directly from the mixer
• Remote control and offline editing also available by accessing the TASCAM IO control app
• 8-in/8-out expansion GPIO terminals (can be expanded to 16-in/16-out via a TASCAM Sonicview mixer)
• Exceptionally stable etherCON connectors to ensure your Dante system runs smoothly
• Full AES67 and SMPTE ST 2110 interoperability, in addition to Dante Domain Manager support
