ลำโพงติดผนัง TANNOY AMS 6ICT Surface-Mount Loudspeaker 6″
ลำโพงแบบไม่มีกำลังขยายในตัวแบบติดผนัง TANNOY AMS 6ICT ขนาดดอกลำโพง 6 นิ้ว (Inductive Coupling Technology) ทนกำลังขับ 60 วัตต์ continuous, 240 วัตต์ peak power, Multiple transformer taps for 70 V and 100 V line or 16 Ohm direct input, IP95 for outdoor use, มีสองสีให้เลือกคือ สีดำและสีขาว โดยใช้รหัส AMS 6ICT-BK และ AMS 6ICT-WH พร้อมขาติดผนัง
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม … เป็นราคาใบละ …
฿10,300.00 ฿9,200.00
Description

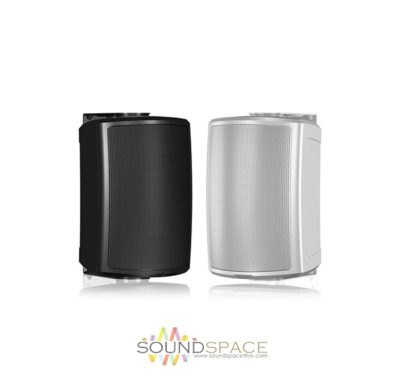

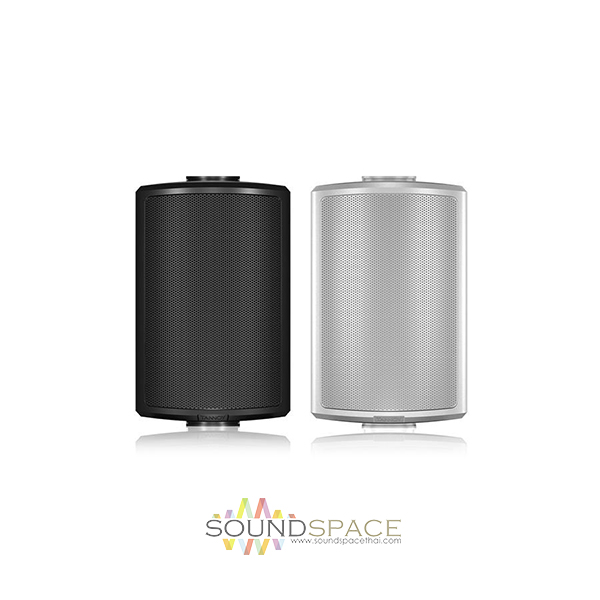

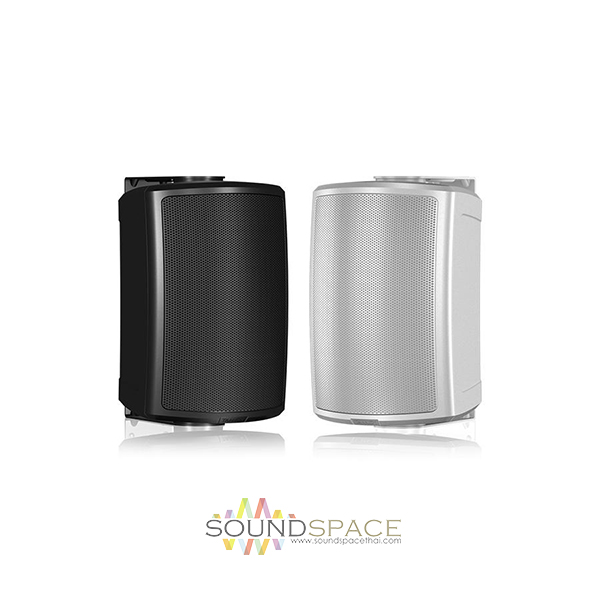

TANNOY AMS 6ICT Surface-Mount Loudspeaker
ลำโพงแบบไม่มีกำลังขยายในตัวแบบติดผนัง TANNOY AMS 6ICT ขนาดดอกลำโพง 6 นิ้ว (Inductive Coupling Technology) ทนกำลังขับ 60 วัตต์ continuous, 240 วัตต์ peak power, Multiple transformer taps for 70 V and 100 V line or 16 Ohm direct input, IP95 for outdoor use, มีสองสีให้เลือกคือ สีดำและสีขาว โดยใช้รหัส AMS 6ICT-BK และ AMS 6ICT-WH พร้อมขาติดผนัง
TANNOY AMS 6ICT is a full bandwidth 240-Watt high sensitivity loudspeaker that utilises our all-new proprietary 6″ ICT (Inductive Coupling Technology) point source driver to deliver consistent broadband directivity and provide exceptional long-term reliability. Thanks to its extended frequency range and 90° controlled conical dispersion pattern,
The AMS 6ICT is ideally suited for indoor and outdoor music applications including theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Features:
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 60 Watts continuous, 240 Watts peak power
- 6″ ICT (Inductive Coupling Technology) point source driver for extended frequency range and reliability
- 90° controlled conical dispersion for optimum coverage and forward gain
- High durability design for constant heavy usage in demanding applications
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
- All components weather resistant to IP65 for outdoor use
- High temperature resistant ABS enclosure rated at 120°C
- Semi matt black paint finish fits unobtrusively in any environment

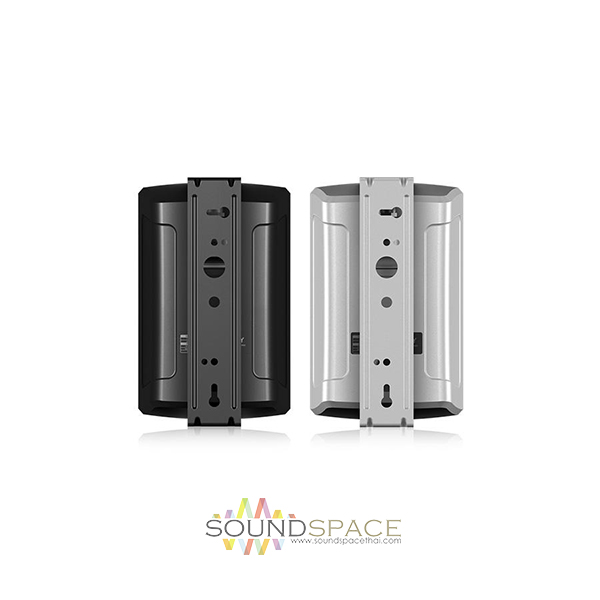

- Yoke bracket included for ease of installation
- Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
- Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch
- Designed and engineered in the U.K.
Specifications
Performance
| Frequency Response (-3 dB) (1) | 75 Hz – 22 kHz |
| Frequency Range (-10 dB) (1) | 55 Hz – 30 kHz |
| System Sensitivity (1 W @ 1 m) (2) | 90 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 60 W Programme: 120 W Peak: 240 W |
| Recommended Amplifier Power | 120 W @ 16 Ohms |
| Nominal Impedance | 16 Ohms |
| Rated Maximum SPL | Average: 108 dB Peak: 114 dB |

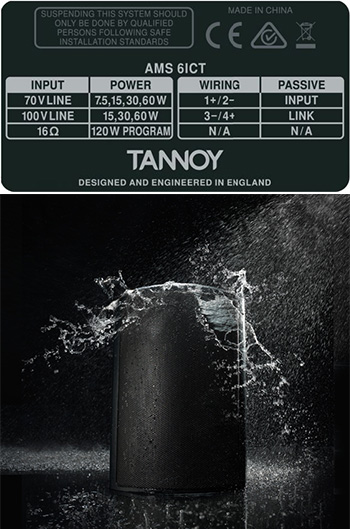

| Transformer Taps (via front rotary switch) | 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |
TRANSDUCERS

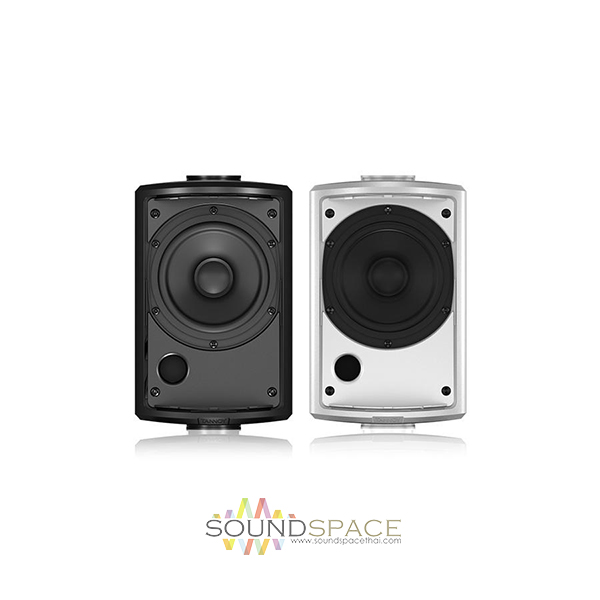

| Low Frequency | 1 x 165 mm (6.50″) treated multi fibre paper pulp cone |
| High Frequency | ICT |
PHYSICAL
| Enclosure | ABS |
| Grille | Steel, plated and painted |
| Connectors | Removable locking connector with screw terminals |
| Transformer setting | Rotary switch |
| Dimensions (H x W x D) | 364.8 x 230.0 x 268.8 mm (14.36 x 9.05 x 10.58″) |
| Net Weight (ea) | 5.14 kg (11.33 lbs) |
| Shipping Weight | 5.82 kg (12.83 lbs) |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
| Finish | |
|---|---|
| Colour | White (Ral 9003) Black (Ral 9004) |
