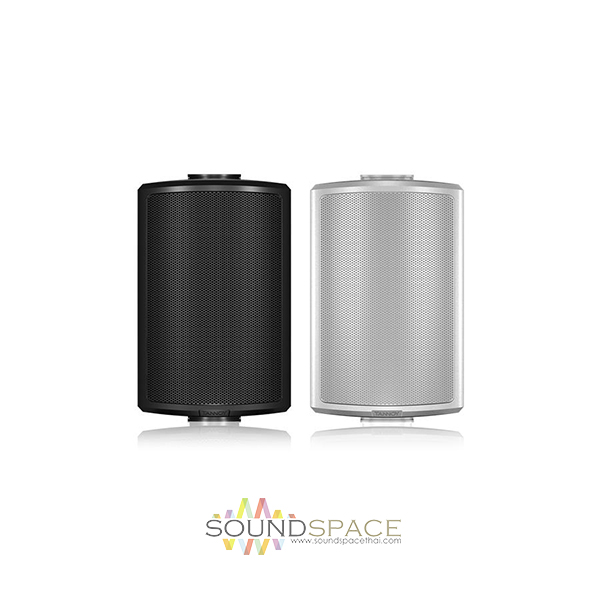

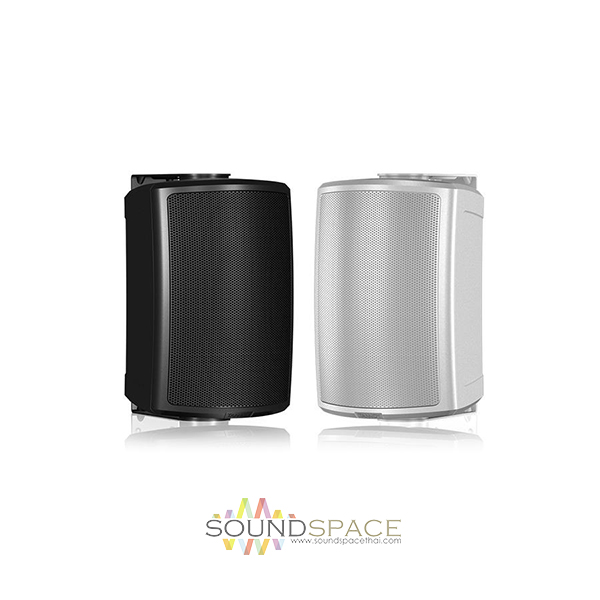

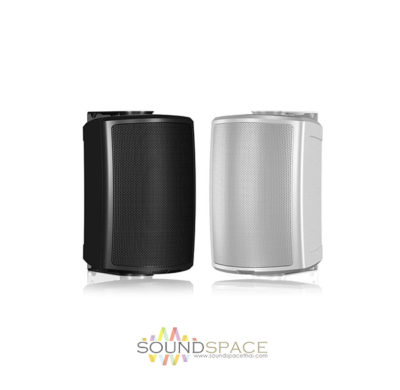

ลำโพงติดผนัง TANNOY AMS 6DC Surface-Mount Loudspeaker 6″
ตู้ลำโพงแบบติดผนัง TANNOY AMS 6DC ขนาดดอกลำโพง 6 นิ้ว Dual Concentric driver, ทนกำลังขับ 80 วัตต์ continuous, transformer taps for 70 V and 100 V line or 16 Ohm direct input, มีสองสีให้เลือกคือ สีดำและสีขาว โดยใช้รหัส AMS 6DC-BK และ AMS 6DC-WH พร้อมขาติดผนัง
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿13,600.00 ฿12,200.00
Description
TANNOY AMS 6DC Dual Concentric Surface-Mount Loudspeaker
ตู้ลำโพงแบบติดผนัง TANNOY AMS 6DC ขนาดดอกลำโพง 6 นิ้ว Dual Concentric driver, ทนกำลังขับ 80 วัตต์ continuous, 320 วัตต์ peak power, Multiple transformer taps for 70 V and 100 V line or 16 Ohm direct input, IP65 for outdoor use, มีสองสีให้เลือกคือ สีดำและสีขาว โดยใช้รหัส AMS 6DC-BK และ AMS 6DC-WH พร้อมขาติดผนัง
The TANNOY AMS 6DC is a full bandwidth 320-Watt high sensitivity loudspeaker that utilises our all-new proprietary 6″ Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide an
d consistent broadband directivity with enhanced intelligibility plus the linear response of our legendary studio monitors.

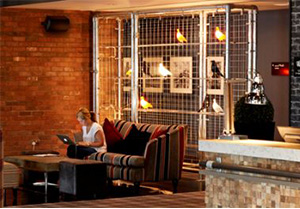

AMS 6DC is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
AMS 6DC loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers
Features:
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 80 Watts continuous, 320 Watts peak power

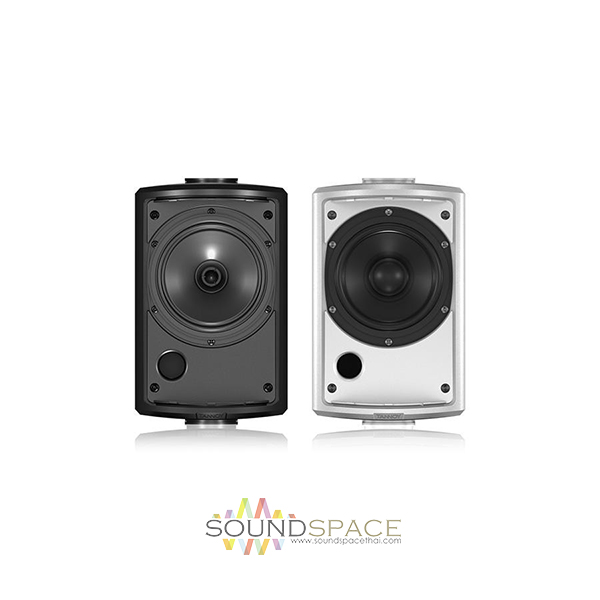

- 6″ next generation Dual Concentric driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high frequency response and directivity
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
- All components weather resistant to IP65 for outdoor use
- High temperature resistant ABS enclosure rated at 120°C
- Semi matt black paint finish fits unobtrusively in any environment

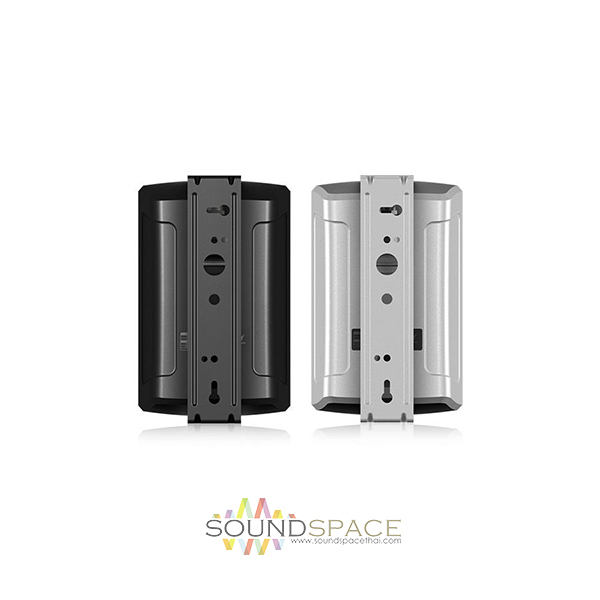

- Yoke bracket included for ease of installation
- Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
- Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch
- Designed and engineered in the U.K.
Specifications
Performance
| Frequency Response (-3 dB) (1) | 75 Hz – 30 kHz |
| Frequency Range (-10 dB) (1) | 55 Hz – 40 kHz |
| System Sensitivity (1 W @ 1 m) (2) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 80 W Programme: 160 W Peak: 320 W |
| Recommended Amplifier Power | 160 W @ 16 Ohms |
| Rated Maximum SPL | Average: 108 dB Peak: 114 dB |
| Transformer Taps (via front rotary switch) | 70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation |
TRANSDUCERS
| Dual Concentric point source driver | 1 x 165 mm (6.5″) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 44 mm (1.75″) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 25 mm (1.00″) PEI dome |
PHYSICAL
| Enclosure | ABS |
| Grille | Weather-resistant zinc nickel-plated steel grille |
| Connectors | Removable locking connector with screw terminals |
| Transformer setting | Rotary switch |
| Dimensions (H x W x D) | 364.8 x 230.0 x 268.8 mm (14.36 x 9.05 x 10.58″) |
| Net Weight (ea) | 6.08 kg (13.40 lbs) |
| Shipping Weight | 6.76 kg (14.90 lbs) |
| Included Accessories | Yoke bracket |
| Packed Quantity | 2 |
| Finish | |
| Colour | White (Ral 9003) Black (Ral 9004) |
