ออดิโออินเตอร์เฟส Steinberg UR28M USB Audio Interface
USB ออดิโออินเตอร์เฟส Steinberg UR28M4 Input / 6 Output, 2 Microphone Preamps, Version 2 Update, Guitar Amp Classics Effect Bundle, S/PDIF I/O, Latency-free DSP-Powered Monitoring, Phantom Power, Desktop Console Style Housing, Cubase AI Software, Mac OS X, Windows XP/Vista/7/8
฿20,000.00 ฿18,000.00
Description
Steinberg UR28M USB 2.0 Digital Audio Interface
USB ออดิโออินเตอร์เฟส Steinberg UR28M4 Input / 6 Output, 2 Microphone Preamps, Version 2 Update, Guitar Amp Classics Effect Bundle, S/PDIF I/O, Latency-free DSP-Powered Monitoring, Phantom Power, Desktop Console Style Housing, Cubase AI Software, Mac OS X, Windows XP/Vista/7/8

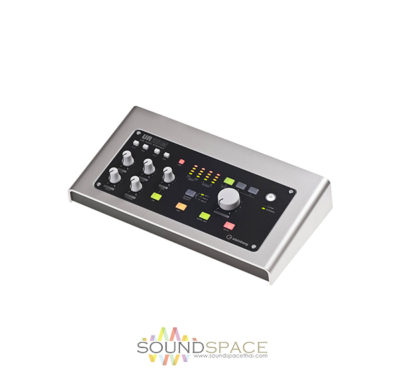

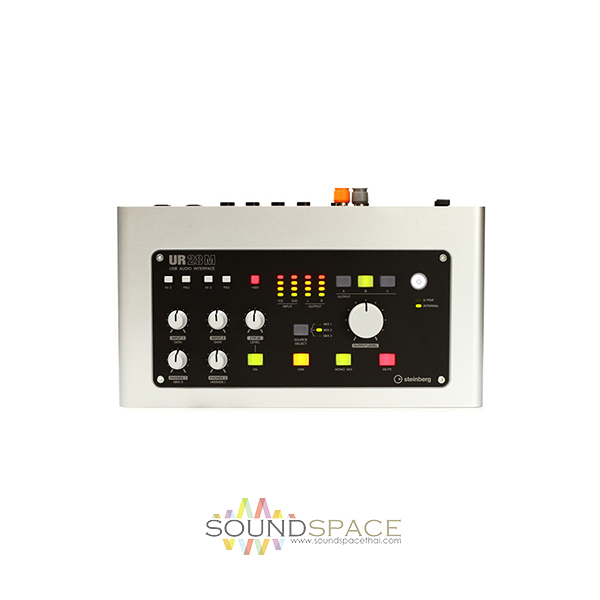

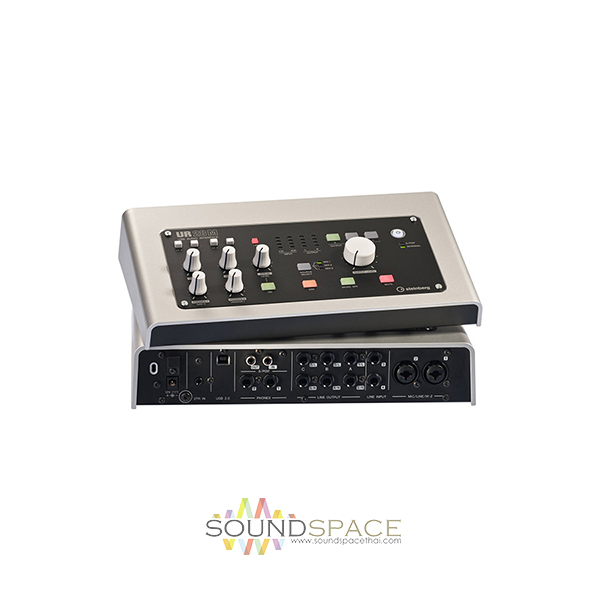

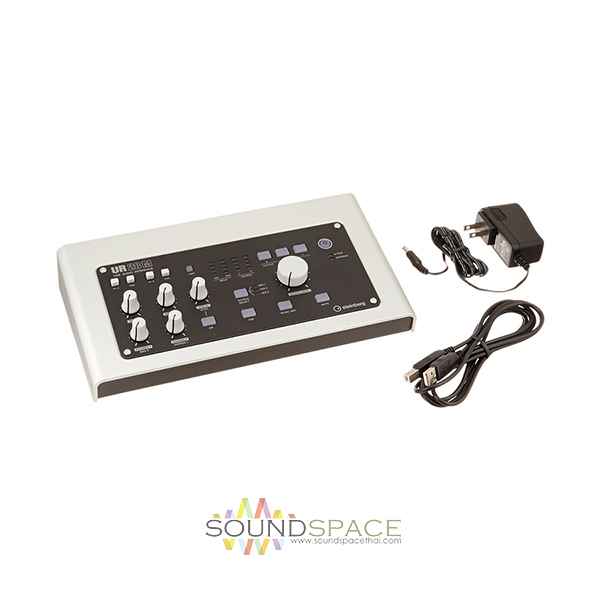

The UR28M from Steinberg is a USB 2.0, DSP-powered digital audio interface featuring 4 inputs and 6 outputs, designed to deliver high-resolution audio. Two of the inputs consist of D-Pre microphone preamps with switchable phantom power. Hi-Z instrument inputs are also available, along with S/PDIF I/O on RCA coaxial connectors. A stereo mini input jack allows for connecting a portable audio player or other devices for use as a reference source.
Boasting high-resolution audio through its analog and digital I/O alongside the widely acclaimed D-Pre mic preamps makes the UR28M desktop interface the best choice for individual musicians and producers of small-scale projects. The 3×3 monitor matrix for switching between setups, the DSP-powered monitoring and native VST 3 plug-ins in the UR28M provide an eminently flexible recording experience.
Features:
- Excellent 24-bit/96 kHz USB 2.0 audio interface with phenomenal analog and digital circuitry
- 4 analog inputs and 6 analog outputs, plus a dedicated 1/8″ stereo input for reference sources such as MP3 players
- 2 x Steinberg’s D-Pre Class A discrete mic preamps with +48V phantom power onboard give you excellent analog sound
- 2-channel coaxial S/PDIF digital I/O lets you hook up high-quality outboard gea
- 6 x 1/4″ outputs let you send custom mixes to monitors and outboard gear
- Built-in DSP REV-X reverb and four Steinberg Channel Strips allow you to record and monitor with effects and processing – without latency!
- Control onboard DSP with Steinberg’s dspMixFx mixer software
- Digitally controlled monitor level control with DIM, Mono, and Mute fed by a 3×3 monitoring matrix
- 2 x separate headphone buses with individual outputs
- Cross-platform compatibility for Mac OS X and Windows
- Native VST 3 plug-ins of REV-X and Sweet Spot Morphing Channel Strip additionally included
- Includes Cubase AI music production software
Specifications
| Type | USB 2.0 |
| Sample Rates | 44.1, 48, 88.2 and 96kHz |
| Inputs | 2 x XLR/TRS combo Microphone/Line 2 x 1/4″ TS phone Instrument 12 x 1/4″ TRS phone Line 1 x RCA coaxial S/PDIF 1 x 1/8″ stereo mini 2TR |
| Input Impedance | Mic/Line: 4kΩ Instrument: 500kΩ |
| Maximum Input Level | Microphone: +22dBu Instrument: +9.8dBV |
| Gain Range | Maximum: 60dB Adjustable: 44dB |
| Outputs | 6 x 1/4″ TRS phone 2 x 1/4″ TRS phone Headphone |
| Output Impedance | 75Ω |
| Maximum Output Level | Line: +16dBu Headphones: 35mW + 35mW, @ 40Ω |
| Dynamic Range | Microphone/Line: 101dB, A-weighted Line Output: 106dB, A-weighted |
| THD + N | Microphone/Line: 0.002%, 1kHz, -1dBFS, 22Hz to 22kHz BPF Line Output: 0.001%, 1kHz, -1dBFS, 22Hz to 22kHz BPF |
| Frequency Response | 20Hz to 22kHz, +0.1/-0.2dB |
| Crosstalk | Microphone/Line: >114dB, 1kHz Line Output: >129dB, 1kHz |
| Power Requirements | 8.4W via supplied external power supply (110V, 50Hz) |
| System Requirements | Mac Intel dual core CPU Firmware Version 1.0 – 1.1: OS X 10.5.8, 10.6, 10.7, 10.8 Firmware Version 2.0: OS X 10.7 / 10.8 2 GB RAM USB 2.0/3.0 port DVD-ROM dual-layer drive Internet connection for license activation of included plug-in software Compatible with any software application supporting Core AudioPC Intel or AMD dual core CPU Firmware Version 1.0 – 1.1: Windows XP, Vista, Windows 7, Windows 8 Firmware Version 2.0: Windows 7 SP1, Windows 8 2 GB RAM USB 2.0/3.0 port DVD-ROM dual-layer drive Internet connection for license activation of included plug-in software Compatible with any software application supporting ASIO or WDMCubase AI 6 Mac Intel dual core CPU OS X 10.6 native 32-bit and 64-bit versions 2GB RAM 4GB free hard drive space DVD-ROM drive Internet connection for license activations 1280 x 800 display resolution recommended Core Audio compatible audio hardware PC Intel or AMD dual core CPU Windows 7 native 32-bit and 64-bit versions 2GB RAM 4GB free hard drive space DVD-ROM drive Internet connection for license activations 1280 x 800 display resolution recommended Windows compatible audio hardware (ASIO, WDM) |
| Dimensions (WxDxH) | 11.5 x 6.5 x 2.3″ (291 x 164 x 59mm) |
| Weight | 3.1 lb (1.4kg) |
| Specialties | -26dB pad |
