Stage Box BEHRINGER S32 Digital Snake

Description

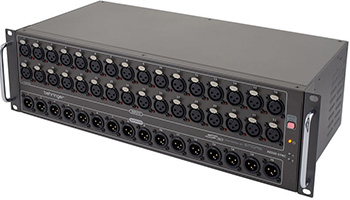

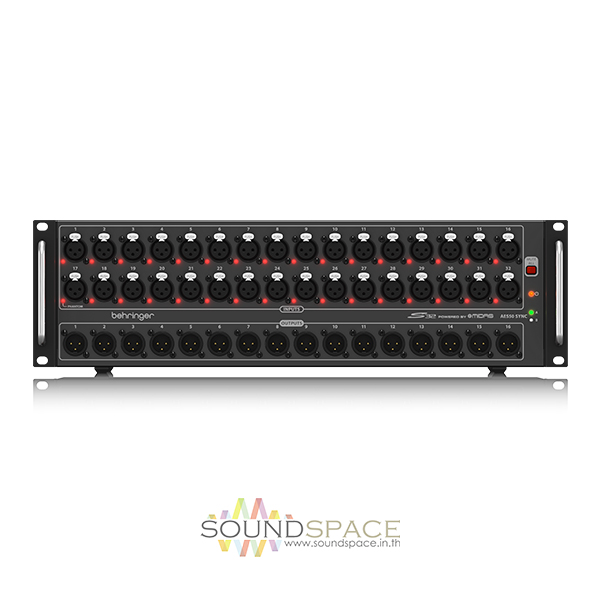

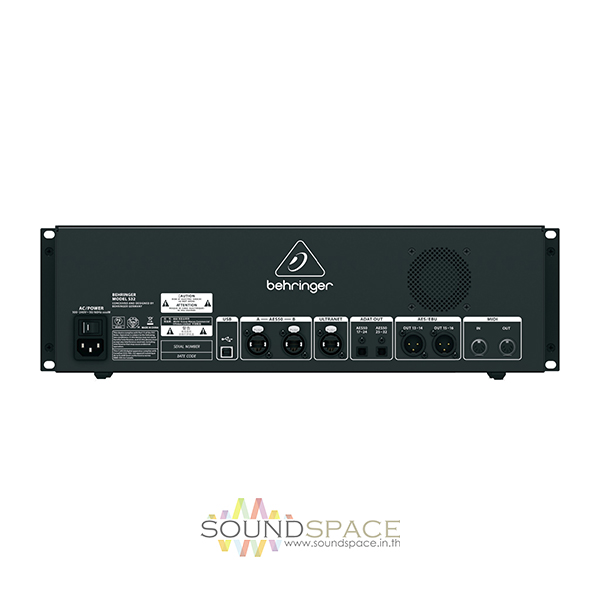

BEHRINGER S32 Digital Snake I/O Box

สเตจบ๊อก BEHRINGER S32 I/O Box with 32 Remote-Controllable MIDAS Preamps, 16 Outputs and AES50 Networking featuring KLARK TEKNIK SuperMAC Technology

The Behringer S32 Digital Snake I/O Box takes the burden out of connecting your FOH (Front of House) console with the talent monitor. It provides 32 fully programmable, remotely controllable high-end mic preamps, 16 analog, balanced XLR returns at the stage end, and connects to the FOH through a single CAT5 cable without the need for a dedicated router.

This I/O box is designed with multiple scenarios in mind; it works equally well as a stand-alone pair for use with analog mixing consoles, or as part of the trio of a digital mixing solution along with the X32 digital mixer and P16 personal monitoring system. It is a 32-in and 16-out stage box that features AES50 networking with the Klark Teknik SuperMAC technology.

Features:

• 32 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
• 16 analog, servo-balanced XLR outputs
• AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET Connectivity for BEHRINGER’s P16 personal monitoring system for in-ear applications
• Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
• Automatic AES50 stage-split mode when connected between BEHRINGER X32 Series FOH and monitor consoles
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes—no merger or router required
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bi-directional communication between BEHRINGER X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• “Planet Earth” switching power supply for maximum flexibility (100-240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• “Built like a tank” yet compact, all-steel 3U rack-mount chassis
