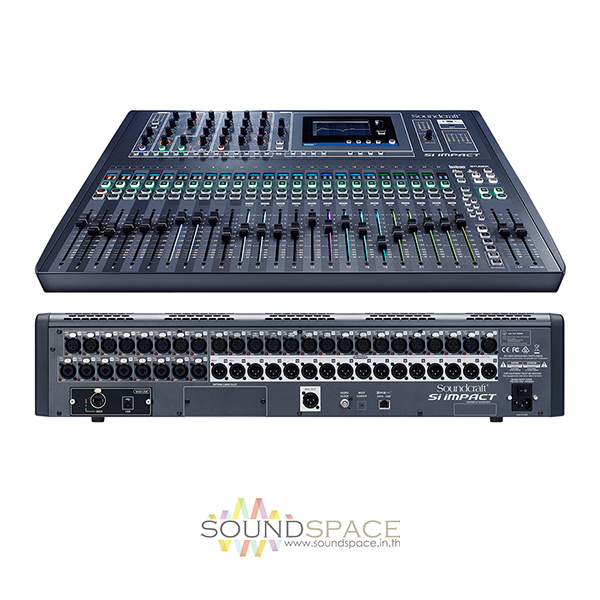

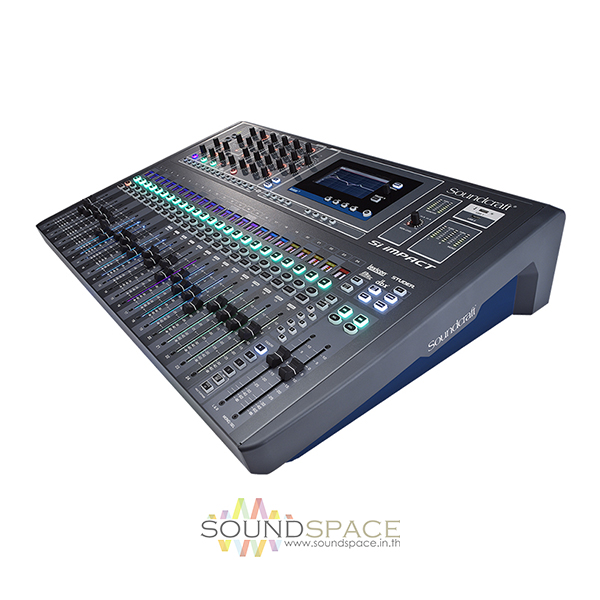

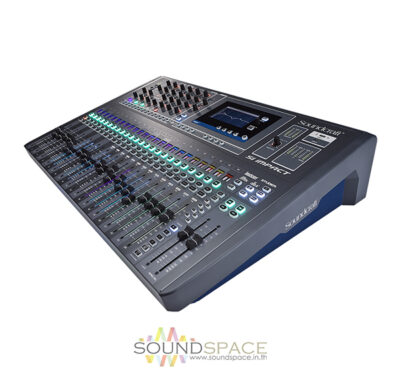

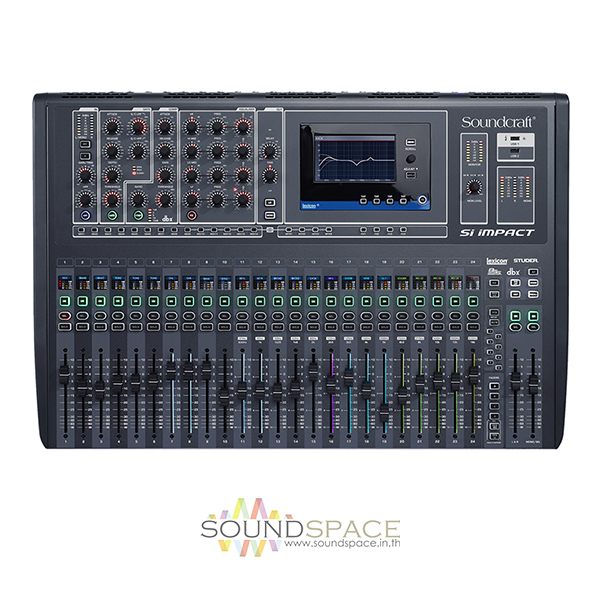

มิกเซอร์ดิจิตอล SOUNDCRAFT Si Impact Digital Mixer

Name: มิกเซอร์ดิจิตอล SOUNDCRAFT Si Impact Digital Mixer
Price: 139000.00 THB
Availability: InStock

ดิจิตอลมิกเซอร์รุ่นล่าสุดจาก Soundcraft Si Impact มาพร้อมกับคุณสมบัติครบถ้วนในราคาสุดประหยัด 40-input Digital Mixing Console and 32-in/32-out USB Interface and iPad Control

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿232,000.00~~ ฿139,000.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: SOUNDCRAFT

Description

เครื่องผสมสัญญาณเสียงแบบดิจิตอล SOUNDCRAFT Si Impact Digital Mixer

Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.

Featuring studio-grade reverbs, delays, and modulations from Lexicon, dbx dynamics, and BSS graphic equalizers, the Si Impact comes fully equipped to mix everything from rock bands to stage plays. Also a 32-in/32-out USB audio interface, the Si Impact mixer delivers professional digital recording directly to your DAW, and comes with a free download of Ableton Live Lite 9.

Features:

32 mic inputs
8 XLR/1/4″ combi-jacks for line inputs and instruments
40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
31 output busses (all with full DSP processing and GEQ)
4-band fully parametric EQ on each channel and bus
8 VCAs + 8 Mute groups
26 motorized faders (24 input + LR/Mono)
4 fully customizable fader layers
Built-in stagebox connectivity
5″ touchscreen display
Multi-color LCD channel displays on each input fader
4 studio-grade Lexicon FX engines and dedicated FX busses
BSS graphic equalizers on every bus
20 sub-group / aux busses
4 mono/stereo matrix busses
32×32 USB audio interface for multi-track recording and playback

Specifications

Frequency Response	Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz
THD	Mic Sensitivity: -30 dBu < 0.01% @ 1 kHz
Noise	Residual Noise: -86 dBu Mic Input E.I.N.: 22 Hz to 22 kHz, Unweighted (max gain) 126 dBu (150 ohm source) Mix Noise, Masters at Unity: < -86 dBu 1 Input to Mix at Unity Gain: -84 dBu CMRR Mic @ 1 kHz (max gain): -80 dBu
Crosstalk	Crosstalk (@ 1 kHz) Channel ON Attenuation: < 120 dB Channel Fader Attenuation: < 120 dB Mic: -100 dB @ 1 kHz, -85 dB @ 10 kHz Line: -100 dB @ 1 kHz, -85 dB @ 10 kHz
Input Gain	Mic Gain: -5 to 58 dB integrated pad design, 1 dB steps Line Trim: -10 to +16 dB
Gate	Threshold: -60 to -6 dBfs Depth: -60 to -3 dB Attack: 0.1 to 200 ms Release: 20 to 500 ms Side-chain HPF: 22 Hz to 2.5 kHz Side-chain LPF: 160 Hz to 20 kHz
Compressor	Threshold: -52 to -6 dBfs Ratio: 1:1 to 20:1 Attack: 0.1 to 200 ms Release: 5 to 900 ms Makeup Gain: 0 to 24 dB
Equalization	All Bands: 22 Hz to 20 kHz, +/-15 dB, Q 6 to 0.3 Shelf (HF): 800 Hz to 20 kHz, +/-15 dB Shelf (LF): 20 Hz to 500 Hz, +/-15 dB HPF: 40 Hz to 1 kHz
Delay	User adjustable delay: 1 sample to 500 ms
Graphic EQ	31 Hz to 16 kHz 1/3 octave
Digital I/O	External Word Clock: In range 48 kHz +/-7 Hz (internal systems), +/-3 Hz with stageboxes Word Clock Out Jitter: +/-7 ns Analog Out for 0 dBfs: +21.5 dBu Converter Resolution: 24-bit DSP Resolution: 40-bit floating point
Latency	Mic In to Line Out: < 0.8 ms Analog In to AES Out: < 0.6 ms Stagebox Mic In to Stagebox: < 0.9 ms
Levels	Mic Input: +22 dBu max Line Input: +22 dBu max Mix Output: +21.5 dBu max Headphones: (@ 150 ohms) 300 mW (recommended impedance 75 to 200 ohms)
Impedance	Mic Input: 3 kOhms Line Input: 10 kOhms Outputs: 150 ohms (balanced), 75 ohms (unbalanced) Word Clock used as Output: 50 ohms Word Clock used as Input: 47 ohms AES Output: 110 ohms
USB	Max Current: 500 mA
Power	Consumption: < 130 W (typical) AC Input Voltage Range: 88 to 264 VAC auto sensing AC Frequency Range: 47 to 63 Hz
Operating Conditions	Operating Temperature Range: 41 to 113°F (5 to 45°C) Humidity: 0-90%, non-condensing Ta = 104°F (40°C) Storage Temperature Range: -4 to 140°F (-20 to 60°C)
Dimensions	6.3 x 29.5 x 19.7″ (160 x 750 x 500 mm)
Weight	44.1 lb (20.0 kg)
