ไมค์ลอย SHURE ULXD24A/SM58-M19 Wireless System

Name: ไมค์ลอย SHURE ULXD24A/SM58-M19 Wireless System
Price: 103000.00 THB
Availability: InStock

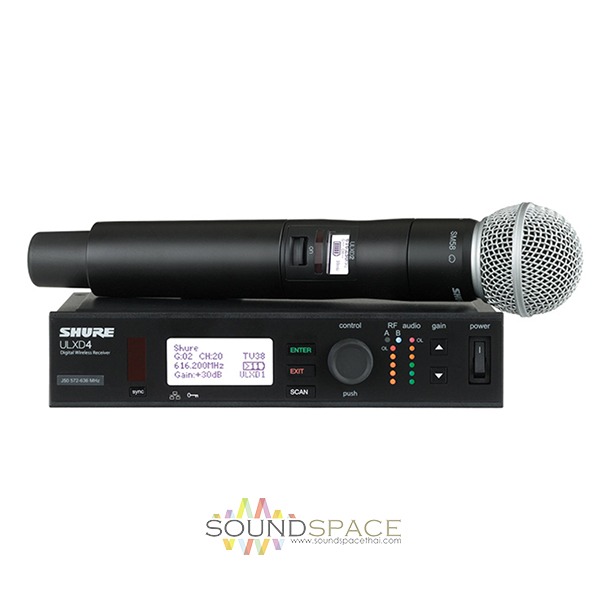

ชุดไมโครโฟนไร้สายแบบมือถือชนิดไมค์เดี่ยว Shure ULXD24A/SM58 M19 (694-703 MHz) ในชุดประกอบด้วยเครื่องรับสัญญาณไมค์ ULXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ ULXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

Fix Install Product ราคาสินค้าไม่รวม Vat…..

฿103,000.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: SHURE

Description

SHURE ULXD24A/SM58-M19 Digital Wireless System (M19: 694-703 MHz)

Shure ULXD24/SM58 digital wireless handheld microphone system bundle comes with everything you need get great-sounding vocals and total wireless freedom, including a ULXD4 digital wireless receiver and a ULXD2 handheld transmitter with a SM 58A dynamic microphone capsule.

Studio-grade 24-bit/48kHz digital resolution perfectly captures and re-creates every nuance of your performance, and a complete set of sophisticated yet simple functions make performing with your Shure ULXD24/SM 58 digital wireless handheld microphone system a blast.

Features:

Reliable SM58 capsule, a performer’s favorite
Rugged metal construction
20Hz-20kHz frequency response
Interchangeable Shure microphone cartridges
Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any source
Frequency and power lockout

Specifications

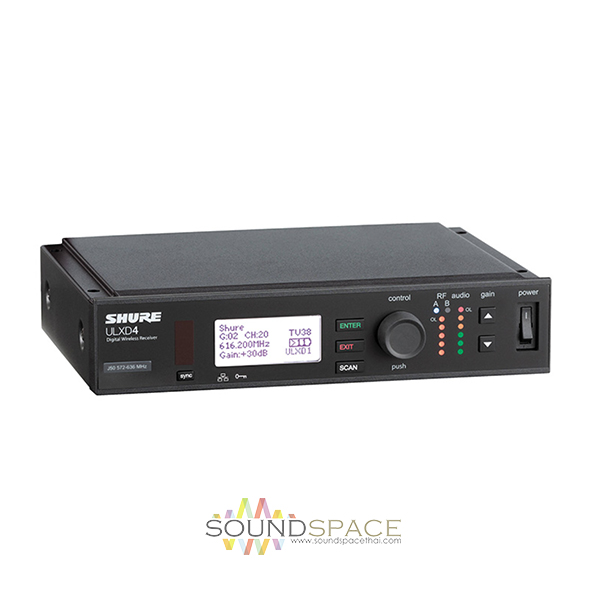

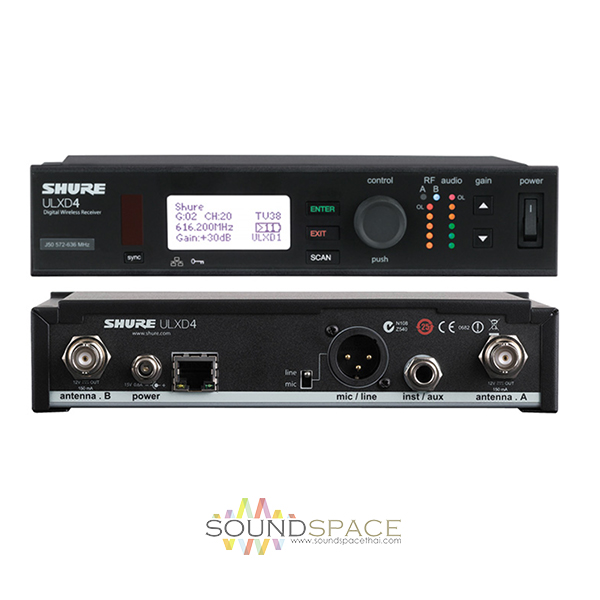

Shure ULXD4

Wireless Transmission	Digital UHF
Number of RF Channels	2560
Diversity	Antenna Diversity
RF Frequency Band	M19: 694-703 MHz
RF Bandwidth	64 MHz
Frequency Step Size	25 kHz
Max Operating Range	328.1′ / 100 m
Max Systems per Setup	60
Latency	<2.9 ms
Modulation	Proprietary

Receiver

Form Factor	Tabletop
Mounting Options	Rackmount, Tabletop (with Included Hardware)
Rackmount Size	1 RU (1/2 Rack)
Antenna	2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage	12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Balanced Output
Gain Range	-18 to +42 dB (1 dB Steps)
Pad	30 dB
Audio Output Level	XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4″ Output: +12 dBV (Consumer Level, Instrument Level)
Phantom Power Protection	On 1/4″, XLR Outputs
Frequency Response	30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O	1 x RJ45 (10/100 Mb/s)
Network Protocols	DHCP, Manual IP
Impedance	XLR Output: 100 Ohms (Balanced)
Approximate RF Sensitivity	-98 dBm
Adjacent Channel Isolation	>70 dB
Spurious	Rejection: >80 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	15 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators	1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation) 2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing	Steel
Operating Temperature	0 to 122°F / -17 to 50°C
Storage Temperature	-20 to 165°F / -28 to 73°C
Dimensions	6.7 x 1.7 x 7.8″ / 171 x 44 x 197 mm
Weight	2 lb / 0.9 kg

Packaging Info

Package Weight	6.5 lb
Box Dimensions (LxWxH)	18.347 x 14.567 x 3.622″

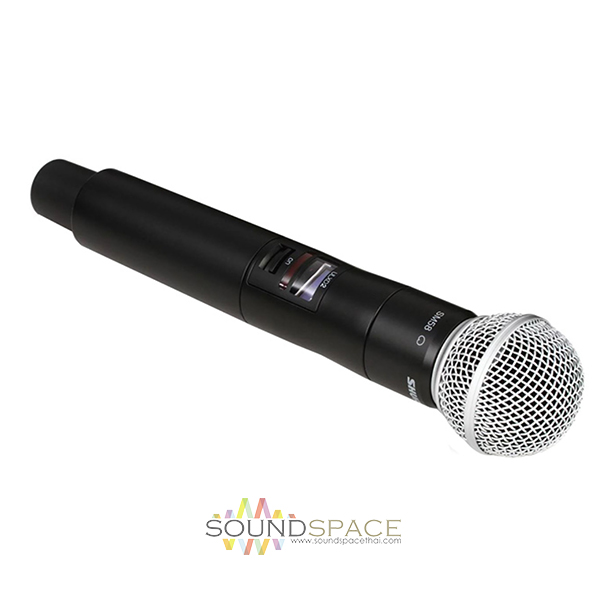

Shure ULXD2/SM58

Wireless Transmission	Digital UHF
RF Frequency Band	M19: 694-703 MHz
RF Bandwidth	64 MHz
Frequency Step Size	25 kHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1′ / 100 m
Sample Rate/Resolution	48 kHz / 24-Bit
Latency	<2.9 ms
Encryption	AES 256
Modulation	Proprietary

Transmitter

Form Factor	Handheld
RF Output Power	1 / 10 / 20 mW (Switchable)
Audio I/O	None
Muting	Off/On Switch
Gain Range	0 to 21 dB (3 dB Steps)
Sync Method	IR
Antenna	1 x Internal Single-Band Helical
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life	Med.: 11 Hours (Alkaline) Med.: 12 Hours (Lithium Shure SB900A)
Display & Indicators	1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing	Aluminum
Operating Temperature	0 to 122°F / -17 to 50°C
Storage Temperature	-20 to 165°F / -28 to 73°C
Dimensions	10.1 x 2″ / 256 x 51 mm
Weight	12 oz / 340 g
