เครื่องรวมสัญญาน SHURE UA844+SWB-E Antenna Distribution System
เครื่องรวมสัญญาน SHURE UA844+SWB-E ขยายสัญญานเสาอากาศสำหรับชุดไมค์ลอย Five-Way RF Signal Output, Front-Mounting Antenna Hardware, 4 Power Feeds for 15 VDC Receivers, Compatible with Shure QLX-D, ULX, ULX-D, SLX, and BLX receivers
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿36,500.00 ฿18,900.00
Description

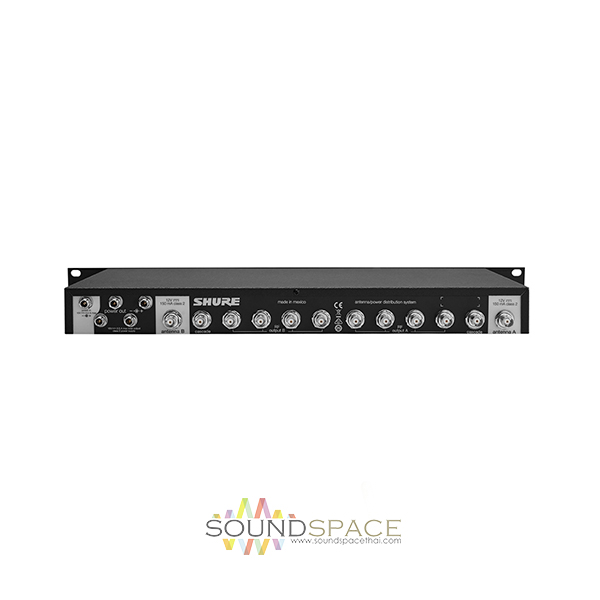

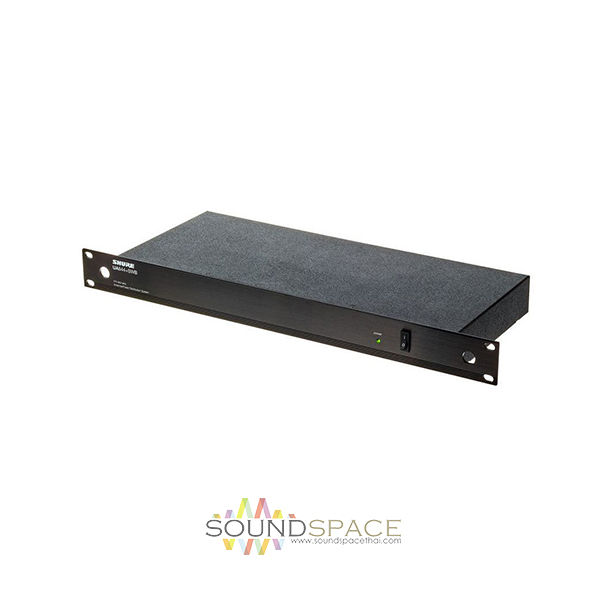

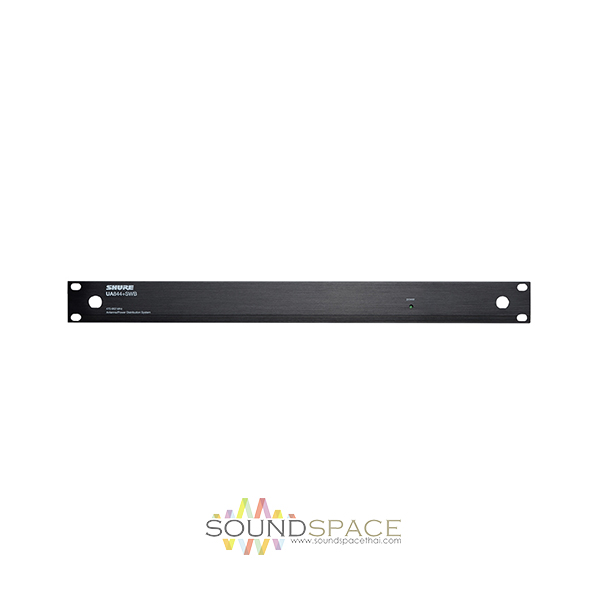

Shure UA844+SWB-E UHF Wideband Antenna Distribution System (470 to 960 MHz)
เครื่องรวมสัญญาน SHURE UA844+SWB-E ขยายสัญญานเสาอากาศสำหรับชุดไมค์ลอย Five-Way RF Signal Output, Front-Mounting Antenna Hardware, 4 Power Feeds for 15 VDC Receivers, Compatible with Shure QLX-D, ULX, ULX-D, SLX, and BLX receivers
The UA844+SWB UHF Wideband Antenna Distribution System from Shure is for the expansion of a Shure wireless microphone system. It can be used to split one pair of antennas to multiple receivers and amplify the RF signal to compensate for the insertion loss.
A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration. The system is compatible with the Shure QLX-D, ULX, ULX-D, SLX, and BLX4R wireless receivers.
Features:
- 5-way active antenna splitter and power distribution system
- Expands your wireless system by splitting 1 pair of antennas to 5 receivers
- Amplifies the antennas’ RF signals to compensate for any loss incurred by splitting the signal
- Up to 5 UA844+SWB/LC systems can be used in a 2-tiered configuration
- Compatible with Shure QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers
Specifications
| Power Requirements | 14 to 18 VDC |
| DC Output | 4x 14 to 18 VDC |
| Output Current | Combined Total from All DC Outputs 2.5 A, maximum |
| Operating Temperature Range | 0 to 145°F (-18 to 63°C) |
| Connector Type | BNC |
| RF Frequency Range | 470 to 960 MHz |
| Bias Voltage(s) | 2x 15 VDC (150 mA, maximum) |
| Impedance | 50 Ohms |
| RF Frequency Range | 470 to 960 MHz |
| Output Intercept Point | 21 dBm, typical |
| Connector Type | BNC |
| Impedance | 50 Ohms |
| Output Connector Isolation | 30 dB, typical |
| Gain | Input to Any Output Port (unused ports terminated in 50 Ohms) -1 to +1 dB |
| Dimensions | 1.8 x 19 x 6.8″ (45 x 483 x 172 mm) |
| Weight | 3.6 lb (1.62 kg) |
