เครื่องส่งสัญญาณ SHURE P10TE Wireless Transmitter for PSM 1000

Name: เครื่องส่งสัญญาณ SHURE P10TE Wireless Transmitter for PSM 1000
Price: 129000.00 THB
Availability: InStock

เครื่องส่งสัญญาณไร้สาย PSM1000 Monitor Systems SHURE P10TE สำหรับชุดอินอียร์ โดยใช้ร่วมกับเครื่องรับสัญญาณ SHURE P10R+, Dual Channel for Double Program Material, 56 MHz Tuning Bandwidth, Networkable via Ethernet

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿206,700.00~~ ฿129,000.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: SHURE

Description

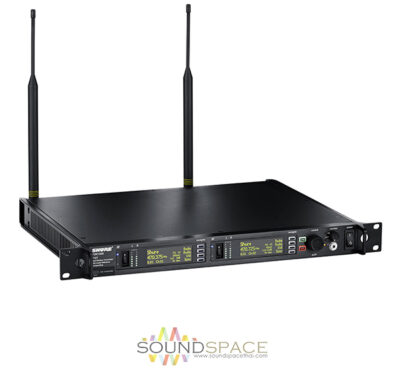

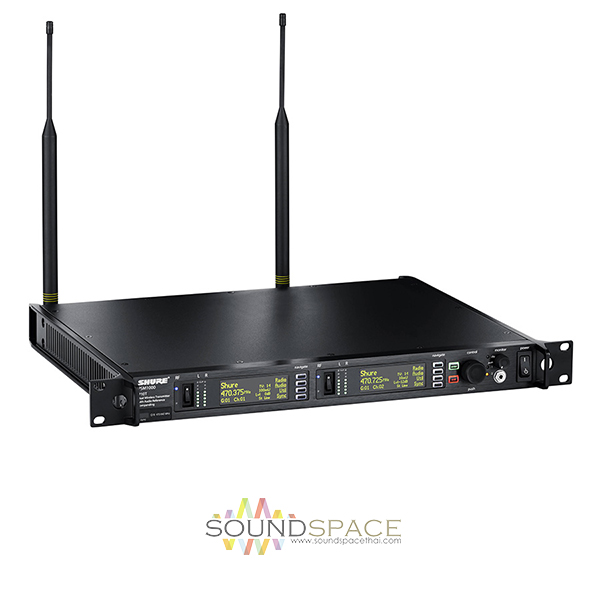

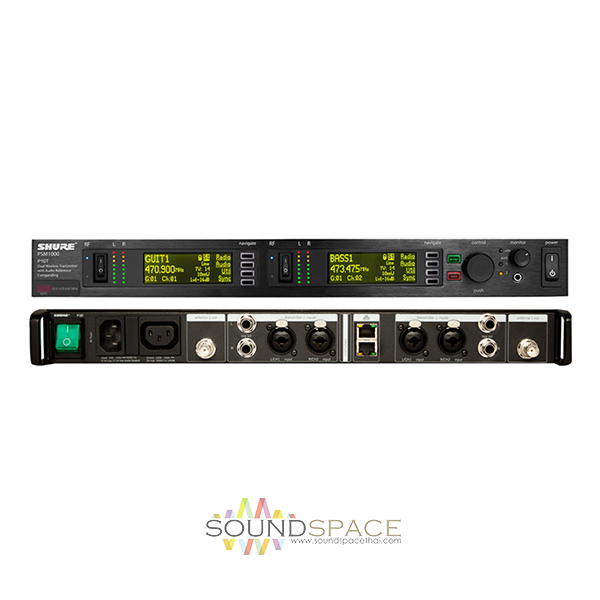

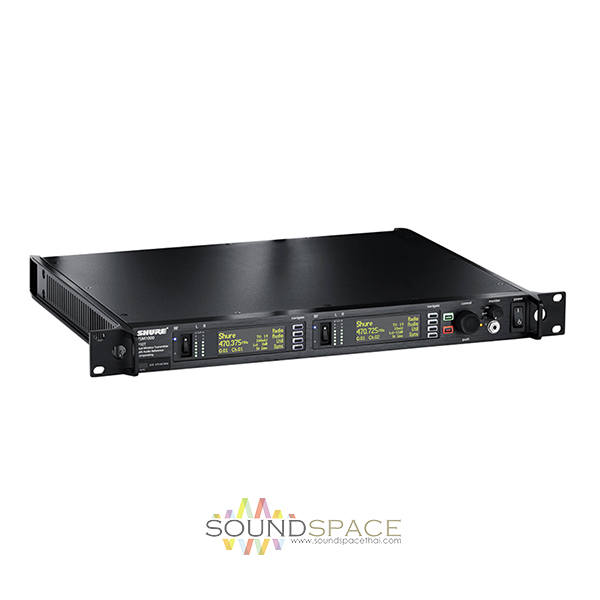

SHURE P10TE Dual Wireless Transmitter for PSM1000 (Q12: 748 to 758 MHz)

Shure’s P10T is a networkable, full-rack, dual-channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM® 1000 Personal Monitor System.

The P10T Wireless Transmitter combines state-of-the-art technology with touring-grade features for professional monitoring applications of any size with no room for error.

It offers a 72 MHz to 80 MHz tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM® 900 backwards compatibility.

Features:

Full-rack, dual-channel wireless transmitter in an all-metal chassis provides touring-grade performance
Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
Internal power supply with IEC in/out ports enables easy power chaining in the rack
RF Mute Switch allows system setup without causing RF interference
Sync RF scan information from a P10R bodypack quickly and easily over IR link
Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
Front-panel audio input gain adjustment and LED level meter with clipping indicator
Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
High-contrast LCD with grouped menu items provides an intuitive user interface
Front or back mountable antennas
Compatible with PA421A and PA821A antenna combiners
Loop out connectors for multiple mix setups and easy installation
Switchable +4 dBu and -10 dBV input level
Balanced, 1/4″ and XLR connectors
5mm headphone out on the front panel for easy monitoring

Specifications

RF Carrier Frequency Range	J8A: 554 to 608 + 614 to 616 MHz
Compatible Frequencies	Per Band: 39
Tuning Bandwidth	56 MHz
Operating Range	300′ / 90 m (Environment Dependent)
Frequency Response	35 Hz to 15 kHz (±1 dB)
Signal to Noise Ratio	90 dB (Typical) A-Weighted
Total Harmonic Distortion (THD)	Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)
Companding	Patented Shure Audio Reference Companding
Spurious Rejection	Ref. 12 dB SINAD: >80 dB (Typical)
Frequency Stability	±2.5 ppm
MPX Pilot Tone	19 kHz (±0.3 kHz)
Modulation	FM (±34 kHz Deviation at 1 kHz) MPX Stereo Ref.
Operating Temperature	0 to 135°F / -18 to 57°C

Transmitter

RF Output Power	Selectable: 10, 50, 100 mW (+20 dBm)
RF Output Impedance	50 Ohms (typical)
Power Requirement	Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded) Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched
Audio Input	Combination XLR-1/4″ /6.3 mm TRS
Polarity	XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3) 1/4″ / 6.3 mm: Tip Positive with Respect to Ring
Configuration	Electronically Balanced
Impedance	70.2 Kilohms (Actual)
Nominal Input Level	Switchable: +4 dBu, -10 dBV
Maximum Input Level	+4 dBu: +29.2 dBu -10 dBV: +12.2 dBu
Pin Assignments	XLR: 1=Ground, 2=Hot, 3=Cold 1/4″ / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground
Phantom Power Protection	Up to 60 VDC
