ไมค์ลอย SHURE GLXD24RA/SM58-Z2 Wireless System
ชุดไมโครโฟนไร้สาย, ไมค์ลอยแบบมือถือชนิดไมค์เดี่ยว Shure GLXD24/SM58 ในระบบดิจิตอล 2.4 GHz ISM Band ประกอบด้วย เครื่องรับสัญญาณไมค์ GLXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ GLXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)
฿40,600.00 ฿24,900.00
Description
Shure GLXD24/SM58 Handheld Wireless System (Z2 Band: 2400 – 2483.5 MHz)
ชุดไมโครโฟนไร้สาย, ไมค์ลอยแบบมือถือชนิดไมค์เดี่ยว Shure GLXD24/SM58 ในระบบดิจิตอล 2.4 GHz ISM Band ประกอบด้วย เครื่องรับสัญญาณไมค์ GLXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ GLXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

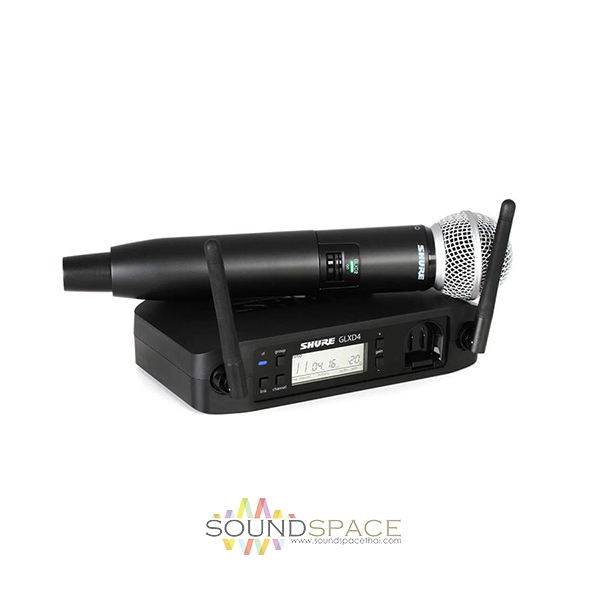

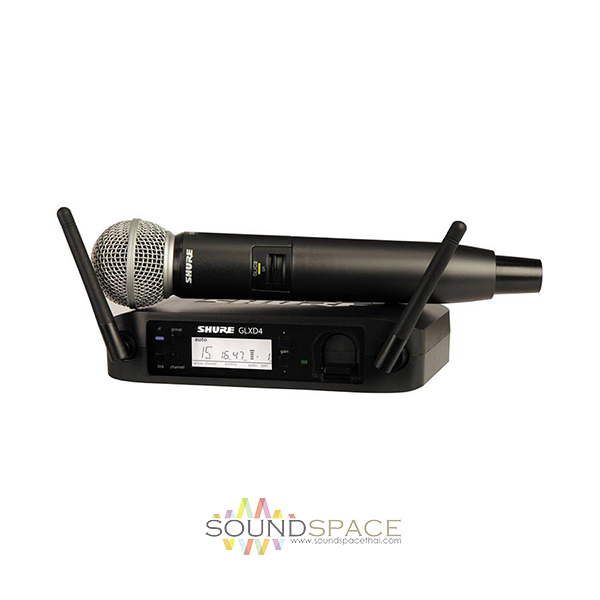

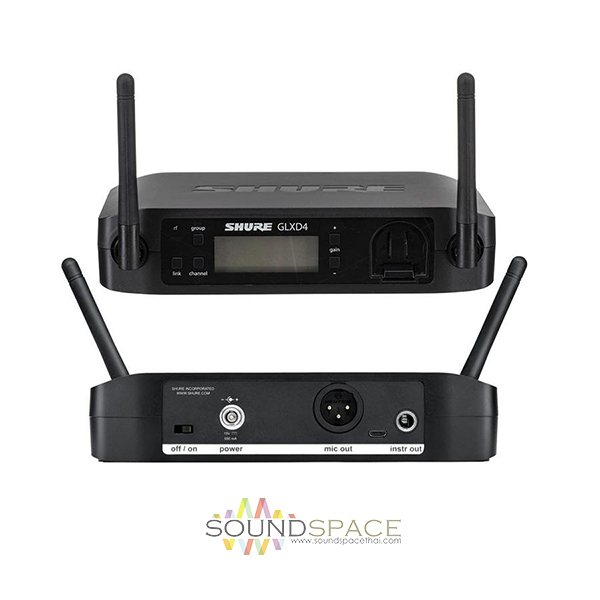

The GLXD24/SM58 Handheld Wireless System from Shure includes a GLXD4 wireless receiver and a GLXD2 handheld transmitter with an SM58 microphone element. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.
Both the GLXD2 transmitter and the GLXD4 receiver feature Shure’s LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on.
With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts.
The GLXD2 includes a rechargeable battery pack that provides up to 16 hours of operation on a full charge. It can be charged right in the GLXD4 receiver thanks to its integrated transmitter battery charging station. The system has a 200′ range of operation and can be used with 7 other GLX-D systems simultaneously.
Features:
- Globally unlicensed 2.4GHz frequency band allows operation of up to 8 compatible systems
- LINKFREQ intelligent frequency management quickly identifies the best open channels
- Bidirectional communication lets the transmitter automatically follow receiver frequency changes
- Continuous interference monitoring and automatic frequency switching eliminates signal interruptions
- Transmitter automatically links to receiver for seamless frequency changing
- Up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries
- Transmission radius up to 200 feet
- GLXD4 wireless receiver
- GLXD2/SM58 handheld transmitter with integrated SM58 cardioid dynamic microphone capsule
- SB902 rechargeable lithium-ion battery; USB charge cable
- Microphone clip and padded zipper case
Specifications
| Outputs | 1x XLR Output 1x 1/4″ (6.35 mm) Output |
| Output Impedance | XLR: 100 Ω 1/4″: 100 Ω, 50 Ω unbalanced |
| Maximum Audio Output Level Analog | XLR: 1 dBV (into 600 Ω load) 1/4″: 8.5 dBV (into 3 kΩ load) |
| Tuning Frequency Range | 2400 to 2483.5 MHz |
| Range of Operation | 200′ (60 m) (typical, depends on RF signal absorption, reflection, and interference) |
| Transmit Mode | Frequency Hopping |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 120 dB, A-weighted |
| RF Sensitivity | -88 dBm, typical |
| Total Harmonic Distortion | 0.2%, typical |
| RF Output | 10 mW E.I.R.P., maximum |
| Operating Temperature Range | 0° to 135°F (-18° to 57°C) |
| Storage Temperature Range | -20° to 165°F (-29° to 74°C) |
| Pin Configuration | XLR: 1= ground, 2= hot, 3=cold 1/4″: Tip= audio, ring= no audio, sleeve= ground |
| Antenna | Impedance: 50 Ω Type: 1/2 wave sleeve dipole, non-removable Max Input Level: -20 dBm |
| Power Requirements | 14 to 18 V DC (tip positive with respect to ring), 550 mA |
| Spurious Rejection | >35 dB, typical |
| Gain Adjustment Range | -20 to 40 dB in 1 dB steps |
| Phantom Power Protection | Yes |
| Housing | Molded plastic |
| Dimensions (HxWxD) | 1.6 x 7.2 x 4.6″ (40 x 183 x 117 mm) |
| Weight | 10.1 oz (286 g) |
| Microphone | |
|---|---|
| Type | Dynamic (Moving Coil) |
| Frequency Response | 50 Hz to 15 kHz |
| Polar Pattern | Cardioid, rotationally symmetrical about microphone axis, uniform with frequency |
