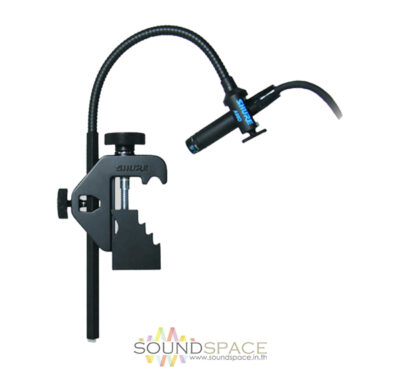

ไมโครโฟน SHURE BETA98D/S Instrument Microphone
BETA98D/S เป็นไมโครโฟนสำหรับจับเสียงเครื่องดนตรี ชนิด คอนเดนเซอร์ไมค์ มีรูปแบบการรับเสียงแบบ Supercardioid ตอบสนองความถี่ 20-20,000 Hz Impedance 150 ohms
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿16,300.00 ฿10,900.00
Description
ไมโครโฟน SHURE BETA98D/S Mini-Condenser Microphone
BETA98D/S เป็นไมโครโฟนสำหรับจับเสียงเครื่องดนตรี ชนิด คอนเดนเซอร์ไมค์ มีรูปแบบการรับเสียงแบบ Supercardioid ตอบสนองความถี่ 20-20,000 Hz Impedance 150 ohms
The Shure Beta 98/S is a compact, high-output miniature condenser microphone for professional sound reinforcement and studio recording.
It’s extremely uniform supercardioid pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise. Its high sound pressure level capability (SPL) makes it useful for a variety of acoustic or amplified instruments including drums, piano, reed, wind, and strings. The Beta 98 D/S miniature supercardioid condenser microphone is precision engineered to excel at professional sound reinforcement or recording of toms, snares, and percussion. A tight polar pattern provides high gain-before-feedback and excellent rejection of unwanted noise. Interchangeable cartridge design (cardioid cartridge available separately) allows further customization for specific applications.
Features:
- Premier live performance microphone with Shure quality, ruggedness, and reliability
- Uniform supercardioid pick-up pattern for maximum gain before feedback and superior rejection of off-axis sound
- Tailored frequency response specifically shaped for drums, guitars, percussion and horns
- Wide dynamic range for use in SPL environments
- Optional A98D mount is unobtrusive and versatile, allows precise positioning of the microphone while holding it firmly in place
- Compact design reduces stage clutter
- Interchangeable microphone cartridges with different polar patterns are available
- Enamel coasted metal construction and stainless steel inner grille resist wear and abuse
Specifications
- Type:Condenser (electret bias)
- Frequency Response:20 to 20,000 Hz
- Polar Pattern:Supercardioid (as supplied), uniform with frequency, symmetrical about axis. Cartridge for cardioid polar pattern also available.
- Output Level (at 1,000 Hz):Open Circuit Voltage: -59 dBV/Pa* (1 mV) typical *1 Pa = 94 dB SPL
- Maximum SPL:(20 Hz to 20 kHz, less than 1% THD) 2.5 kilohm
- load: 160 dB 1 kilohm
- load: 156 dB
- Preamplifier Output Clipping Level: (20 Hz to 20 kHz, less than 1% THD) 2.5 kilohm
- load: + 6 dBV (2.0 V) 1 kilohm
- load: + 2 dBV (1.26 V)
- Dynamic Range:(at 20 Hz to 20 kHz, less than 1% THD, 2.5 kilohm load) 125 dB (max SPL minus A-weighted noise)
- Output Noise:35 dB SPL, A-weighted
- Signal-to-Noise Ratio:59 dB re 94 dB SPL
- Output Impedance:Rated at 150 ohms (actual) Recommended minimum load impedance: 1 kilohm
- Hum Pickup:-7.5 dB equivalent SPL in 1 mOe field (60Hz)
- Polarity:Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Phantom Power:48 Vdc +/- 4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3.
- Cable:
- BETA 98/S: 7.6 m (25 ft) light-weight, two-conductor shielded, TA4F to TA3F mini connectors.
- BETA 98D/S: 4.6 m (15 ft) heavy-duty, two-conductor shielded, TA4F to TA3F mini connectors.
- Case:Microphone: Matte black enamel brass case and stainless steel inner grille
- Preamplifier: Matte black enamel finished steel
- Dimensions:
- Microphone: 11.7 mm X 35.6 mm (0.46 in. X 1.40 in.)
- Preamplifier: 20 mm X 99 mm (0.79 in. X 3.89 in.)
- Net Weight:
- Microphone: 12 g (0.4 oz) less cable
- Preamplifier: 96 g (3.4 oz)
