ไมค์ลอย Sennheiser EW500 G4-945 Handheld Wireless System

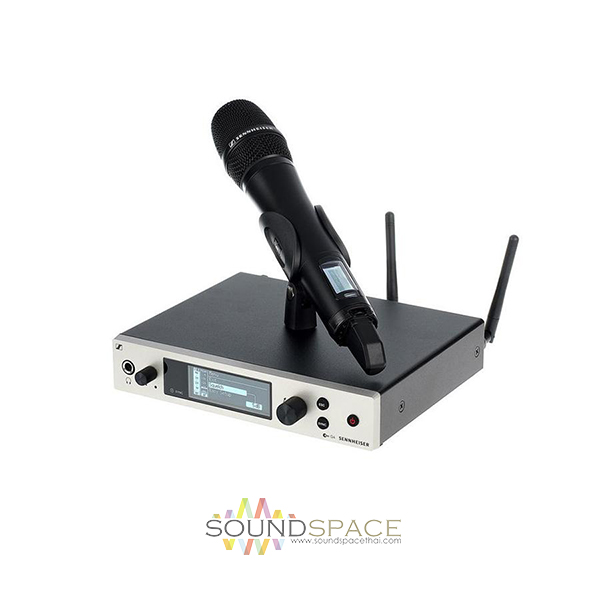

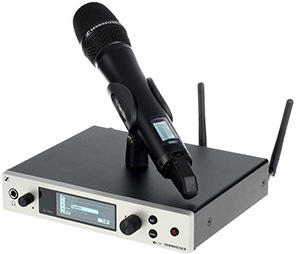

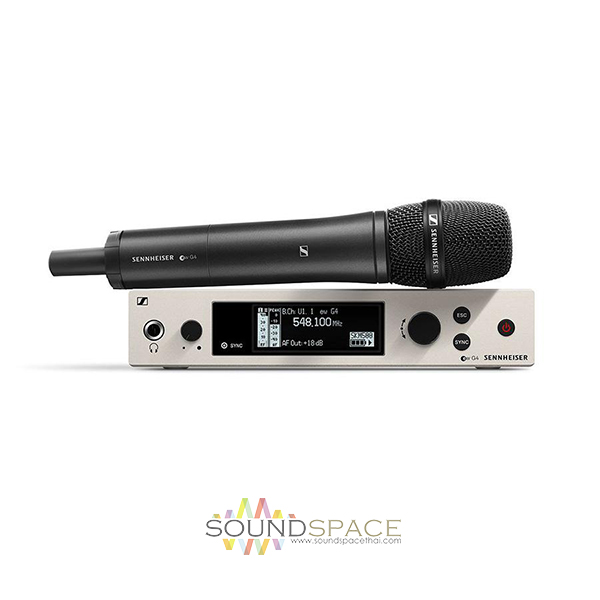

ชุดไมค์ไร้สาย Sennheiser EW 500 G4-945 เป็นไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 300-500 G4 True Diversity Receiver, เครื่องส่ง (ไมโครโฟน) SKM 500 G4 โดยมีหัวไมค์เป็นรุ่น e945, 3520 Selectable Frequencies, 88 MHz
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿71,190.00 ฿39,100.00
Description
Sennheiser EW 500 G4-945 Wireless Handheld Microphone System
ชุดไมค์ไร้สาย Sennheiser EW 500 G4-945 เป็นไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 300-500 G4 True Diversity Receiver, เครื่องส่ง (ไมโครโฟน) SKM 500 G4 โดยมีหัวไมค์เป็นรุ่น e945, 3520 Selectable Frequencies, 88 MHz Bandwidth, Wireless Infrared Synchronization
The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

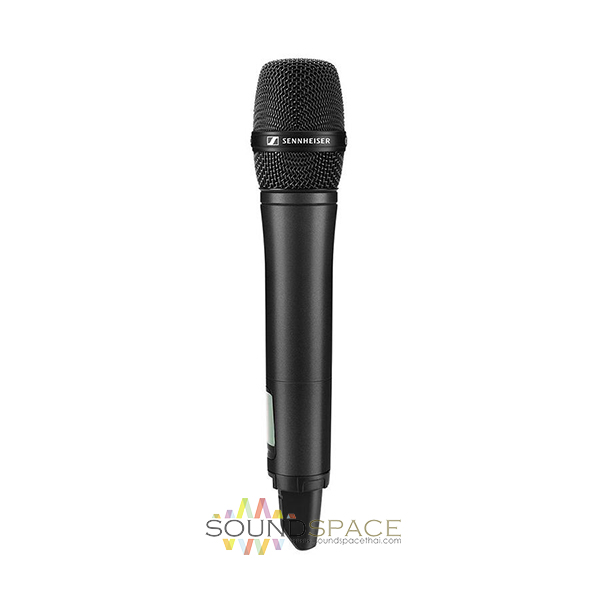

The pinnacle of the evolution series, powered by Sennheiser’s renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.
Features:

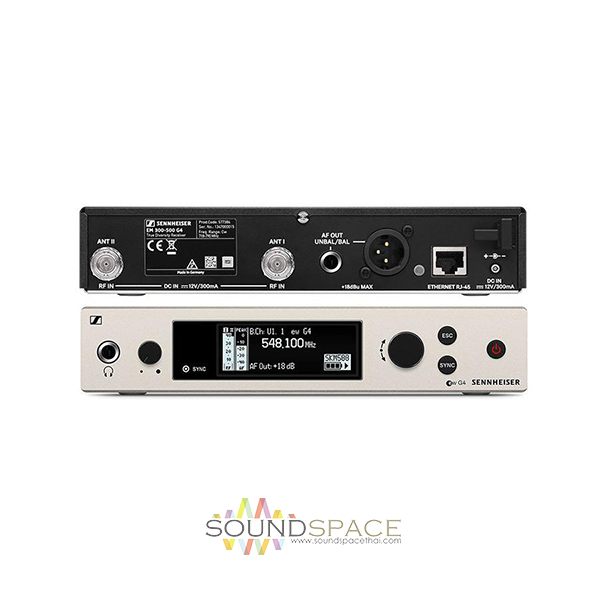

- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Specifications
| Modulation | Wideband FM |
| Frequency Band | AW+: (470 to 558 MHz) |
| Receiving Frequency | Maximum 3250 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching Bandwidth | Up to 88 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Principle of Operation | True diversity |
| Sensitivity | < 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation) |
| Adjacent Channel Selectivity | Typically ≥ 75 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Blocking | ≥ 75 dB |
| Squelch | Off, 5 to 25 dB μV in steps of 2 dB |
| Pilot Tone Squelch | Can be switched off |
| Antenna Inputs | 2 x BNC sockets |
| Compander | Sennheiser HDX |
| EQ Presets | Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz) |
| Signal to Noise Ratio | (1 mV, peak deviation) Line: ≥ 115 dBA |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum AF Output Voltage | 1/4″ (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF) |
| Output Level Range | 48 dB (3 dB steps) |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 12 VDC |
| Current Consumption | 350 mA |
| Dimensions (L x W x H) | 8.0 x 8.3 x 1.7″ (202 x 212 x 43 mm) |
| Weight | 2.2 lb (980 g) |

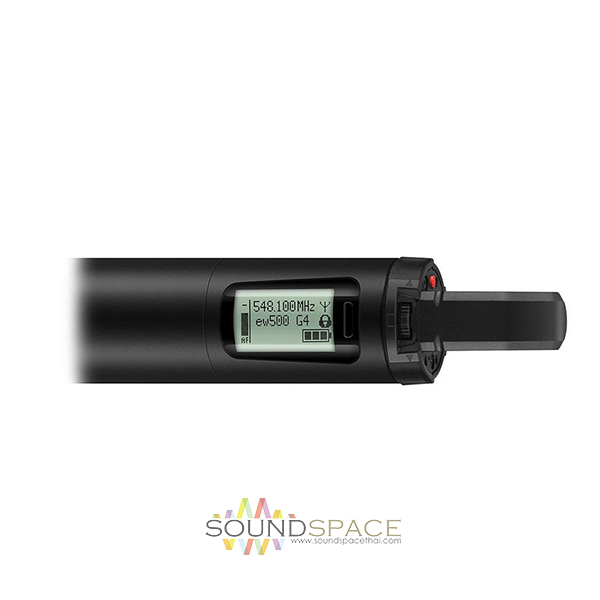

| Modulation | Wideband FM |
| Frequency Band | AS: 520 – 558 MHz K+: 925 – 937,5 MHz JB: 806 – 810 MHz GBw: 606 – 678 MHz Gw: 558 – 626 MHz Bw: 626 – 698 MHz Cw: 718 – 790 MHz Dw: 790 – 865 MHz Aw+: 470 – 558 MHz Gw1: 558 – 608 MHz |
| Receiving Frequency | Maximum 3520 frequencies, adjustable in 25 MHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching Bandwidth | Up to 88 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power | Up to 50 mW Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW |
| Pilot Tone Squelch | Can be switched off |
| Compander | Sennheiser HDX |
| AF Frequency Response | 80 Hz to 18 kHz |
| Signal to Noise Ratio | Approximately ≥ 115 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Input Sensitivity Range | 48 dB, adjustable in 6 dB steps |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA 1.5 V batteries, or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At Nominal Voltage: Typical 180 mA With Transmitter Switched Off: ≤ 25 μA |
| Operating Time | Typically 8 hours |
| Dimensions (Diam. x L) | 2.0 x 10″ (50 x 265 mm) |
| Weight | 16 oz (450 g) including batteries |
| Compatible Transmitters | SKM 100/300/500 G3/G4, SKM 2000/6000/9000, SKM D1/AVX, SL handheld DW |
| Type | Dynamic |
| Polar Pattern | Supercardioid |
| Sound Pressure Level | 154 dB |
| Sensitivity | 1.6 mV/Pa |
