ชุดไมค์ไร้สายแบบคาดหัว Sennheiser EW300 G4-ME3-S-TH Wireless System

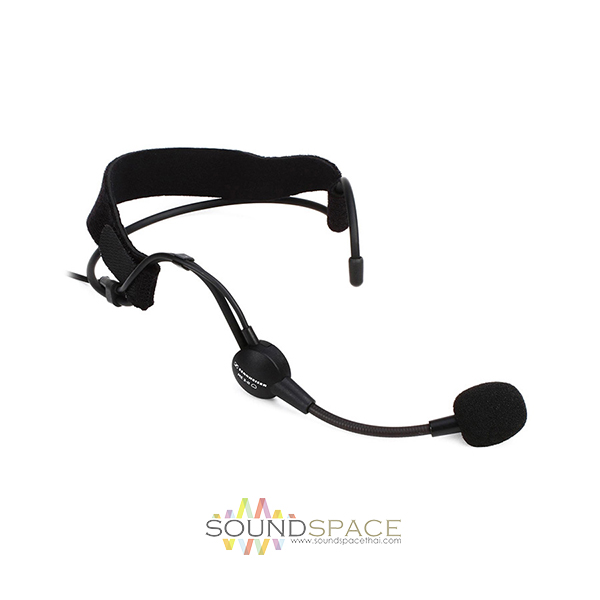

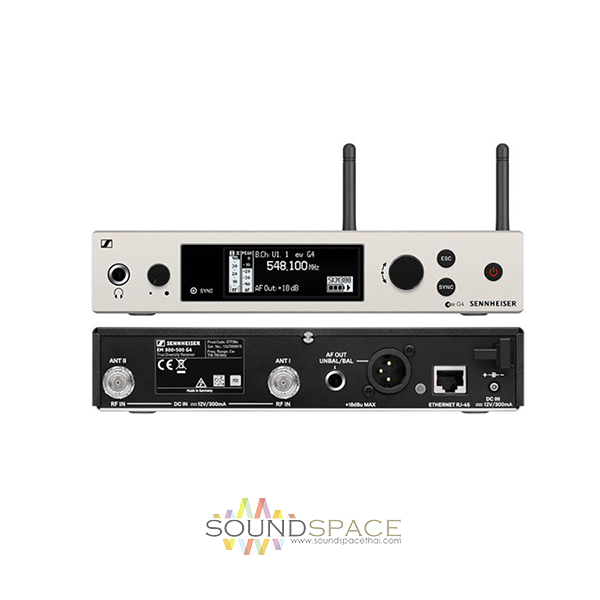

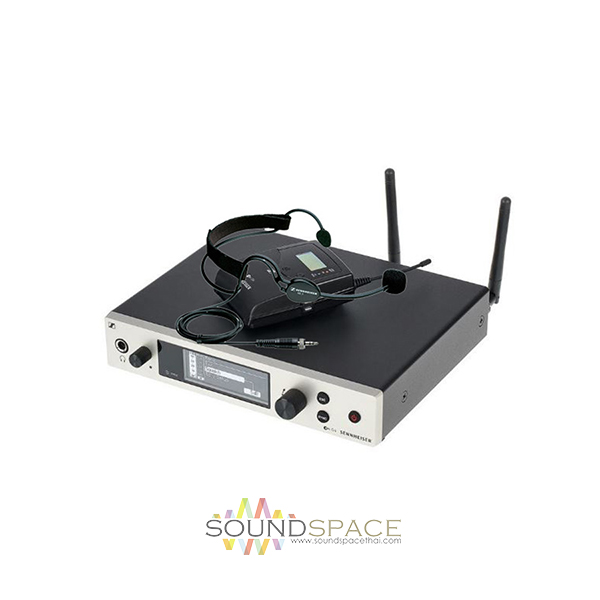

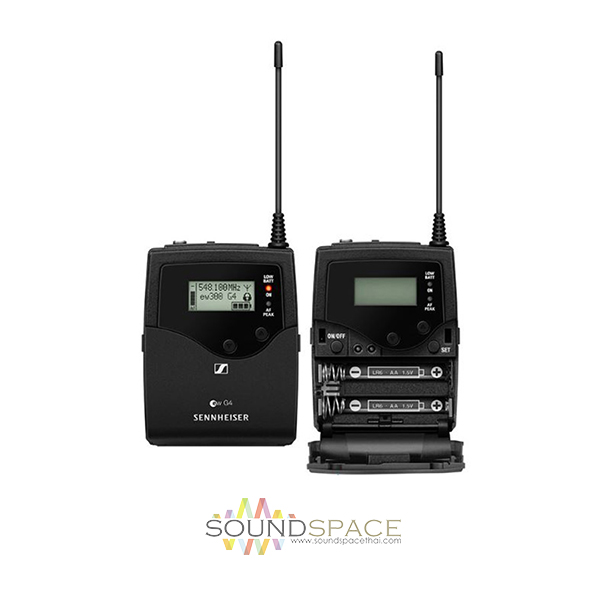

ชุดไมค์ลอยคาดศรีษะ Sennheiser EW 300 G4-ME3-S-TH เป็นชุดไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4, ในชุดประกอบด้วย เครื่องรับ EM 300-500 G4 true diversity receiver 1 เครื่อง, เครื่องส่ง SK 300 G4 bodypack transmitter 1 เครื่อง, ไมค์คาดหัว ME 3 Headset Microphone 1 ตัว
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿40,900.00
Description
Sennheiser EW300 G4-ME3-S-TH Wireless System
ชุดไมค์ลอยคาดศรีษะ Sennheiser EW 300 G4-ME3-S-TH เป็นชุดไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4, ในชุดประกอบด้วย เครื่องรับ EM 300-500 G4 true diversity receiver 1 เครื่อง, เครื่องส่ง SK 300 G4 bodypack transmitter 1 เครื่อง, ไมค์คาดหัว ME 3 Headset Microphone 1 ตัว
Sennheiser G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation – despite digital dividend.
Moderators and presenters love working with G4. The aluminum housing of the handheld transmitter is not just robust but also lightweight for long speeches, whereas the noiseless mute switch ensures full control.
Features:
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
Specifications
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 3520 |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | AW+: 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330′ / 100.6 m (Line of Sight) |
| Max Systems per Setup | 32 |
| Deviation | ±48 kHz (Peak) |
| Modulation | Wideband FM |
| Form Factor | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x Rod, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Unbalanced Output |
| Gain Range | 48 dB (3 dB Steps) |
| Audio Output Level | XLR Output: +18 dBu (Balanced) 1/4″ Output: +12 dBu (Unbalanced) |
| Network I/O | 1 x RJ45 |
| Approximate RF Sensitivity | 2.5 µV |
| Squelch | Adjustable, 5 to 25 dBμV |
| Adjacent Channel Isolation | >75 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.2 A |
| Display & Indicators | 1 x OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 8.3 x 1.7 x 8″ / 212 x 43 x 202 mm |
| Weight | 2.2 lb / 980 g |
| Form Factor | Bodypack |
| RF Output Power | 10 / 30 / 50 mW |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Female Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | 3 V RMS |
| Gain Range | 60 dB (3 dB Steps) |
| Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.9″ / 64 x 82 x 24 mm |
| Weight | 5.6 oz / 160 g (with Batteries) |
| Microphone | Pre-polarized condenser |
| Sensitivity | 1.6 mV/Pa |
| Pick-up Pattern | Cardioid |
| Maximum Sound Pressure Level (SPL) | 150 dB |
| Connector | 1/8″ (3.5 mm) locking mini-jack |
