ชุดไวเลสกีตาร์ Sennheiser EW300 G4 Ci-1-TH Wireless Instrument System
ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew300 G4 Ci-1 เป็นไวเลสย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 300 G4 Rackmount Receiver, เครื่องส่ง SK 300 G4 Bodypack Transmitter, สายแจ็ค Cl1 instrument cable, 20 Banks with 12 Channel Presets Each, Auto Frequency Scan
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿34,900.00
Description
Sennheiser EW300 G4 Ci-1-TH Wireless Instrument System
ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew300 G4 Ci-1 เป็นไวเลสย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 300 G4 Rackmount Receiver, เครื่องส่ง SK 300 G4 Bodypack Transmitter, สายแจ็ค Cl1 instrument cable, 20 Banks with 12 Channel Presets Each, Auto Frequency Scan
The Sennheiser EW 300 G4-Ci-1-TH is an easy-to-use rackmount wireless microphone system geared for business and educational applications. It offers professional-level features for enhanced reliability and control, including variable RF power, an exceptionally wide tuning range.
Ethernet networking for multichannel setups, and an intuitive interface with an OLED display and jog wheel. The system delivers high-quality, reliable audio to presenters, meeting participants, educators, and lecturers working in conference centers, schools, and universities.

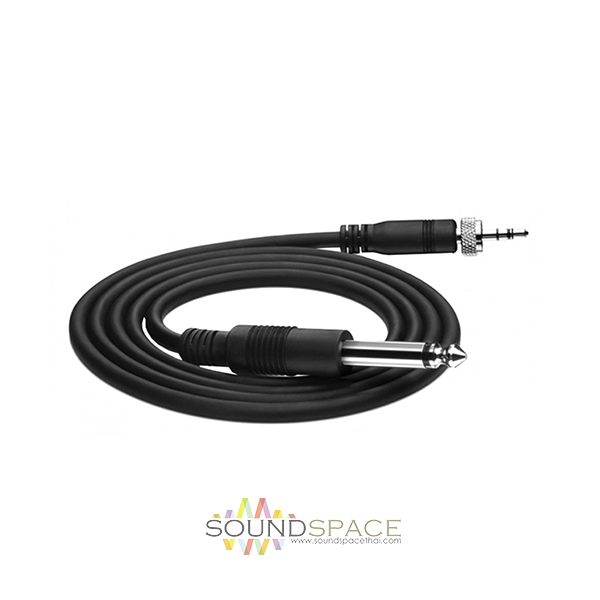

Ci 1 instrument cable with 1/4″ phone connector, a GA3 rackmount kit, and an RJ10 linking cable. It is designed to provide dependable wireless performance for guitars and other instruments for rehearsals, recording, stage, and other applications.
Features:
- For Guitar and Presenters or Educators
- Remote-Ready Bodypack Transmitter
- True-Diversity Rackmount Receiver
- 3520 Auto-Scan Frequencies
- Selectable 10/30/50mW RF Power
- High-Contrast OLED Display
- Ethernet for Control Cockpit Software
- 8-Hr AA Batteries
- Expandable to 32 Mic Channels/330′ Range
Specifications
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 3520 |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | AW+: 470 to 558 MHz |
| RF Bandwidth | 88 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 330′ / 100.6 m (Line of Sight) |
| Max Transmitters per Band | 32 |
| Encryption | None |
| Deviation | ±48 kHz (Peak) |
| Modulation | Wideband FM |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x Rod, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Unbalanced Output |
| Gain Range | 48 dB (3 dB Steps) |
| Audio Output Level | XLR Output: +18 dBu (Balanced) 1/4″ Output: +12 dBu (Unbalanced) |
| Network I/O | 1 x RJ45 |
| Approximate RF Sensitivity | 2.5 µV |
| Squelch | Adjustable, 5 to 25 dBμV |
| Adjacent Channel Isolation | >75 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.2 A |
| Display & Indicators | 1 x OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 8.3 x 1.7 x 8″ / 212 x 43 x 202 mm |
| Weight | 2.2 lb / 980 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 / 30 / 50 mW |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Female Input (Lockable) |
| Included Cable Connector | None |
| Muting | Mute Switch |
| Audio Input Level | 3 V RMS |
| Auto-Level Control | No |
| Gain Range | 60 dB (3 dB Steps) |
| Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.9″ / 64 x 82 x 24 mm |
| Weight | 5.6 oz / 160 g (with Batteries) |
