ชุดไวเลสกีตาร์ Sennheiser ew172 G3 Wireless Instrument System

Name: ชุดไวเลสกีตาร์ Sennheiser ew172 G3 Wireless Instrument System
Price: 21500.00 THB
Availability: InStock

ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew172 G3 ในชุดประกอบด้วยเครื่องรับ EM 100 G3 UHF Receiver, Bodypack Transmitter SK 100 G3, สายแจ็ค Cl1 instrument cable, 1680 Tunable UHF Freq, Includes GA3 Rackmount Kit, 20 Ch Banks, 12 Compatible Freq Per Bank, เป็นไวเลสย่าน UHF

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

~~฿39,900.00~~ ฿21,500.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: Sennheiser

Description

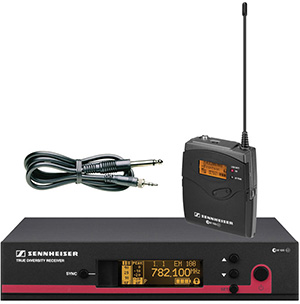

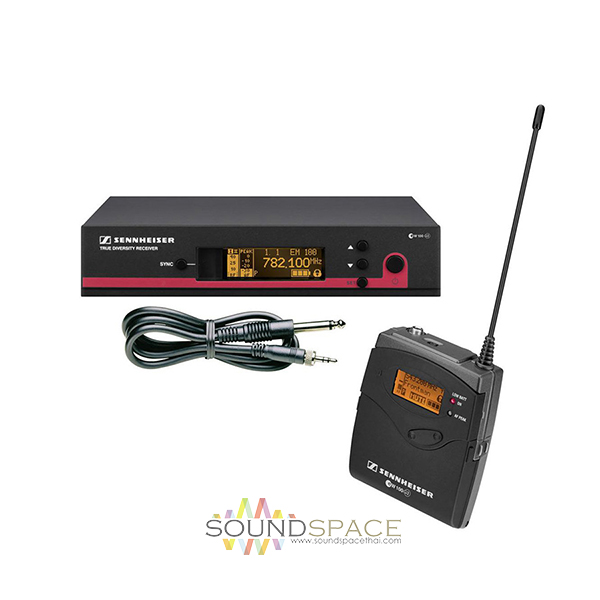

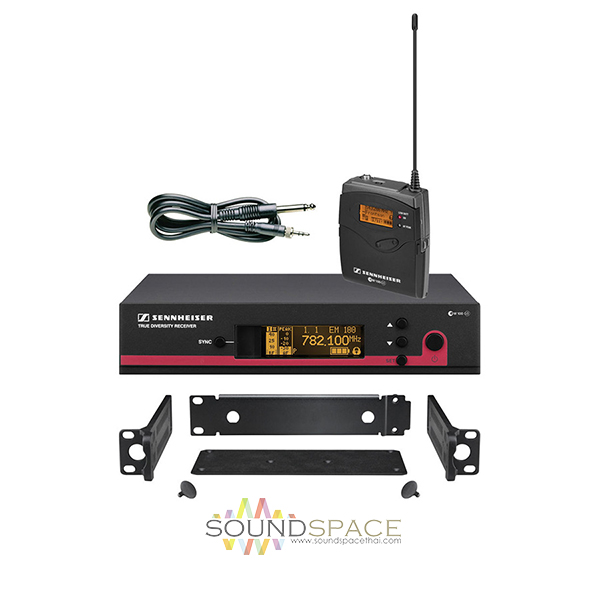

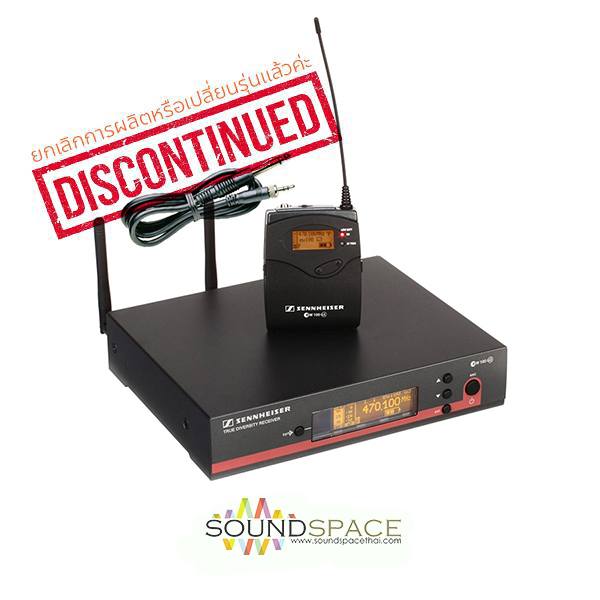

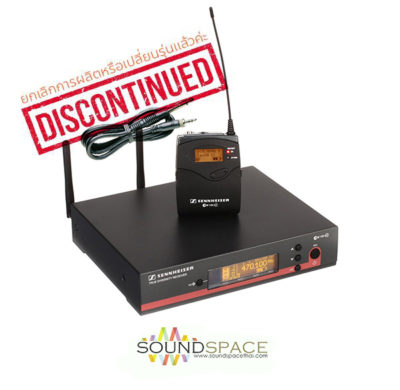

Sennheiser EW172 G3 Wireless Instrument System with Ci 1 Guitar Cable

ชุดไวเลสกีตาร์แบบไร้สาย Sennheiser ew172 G3 ในชุดประกอบด้วยเครื่องรับ EM 100 G3 UHF Receiver, Bodypack Transmitter SK 100 G3, สายแจ็ค Cl1 instrument cable, 1680 Tunable UHF Freq, 20 Ch Banks, 12 Compatible Freq Per Bank, Includes GA3 Rackmount Kit, เป็นไวเลสย่าน UHF

The Sennheiser EW172 G3 Wireless Bodypack Microphone System provides dependable wireless performance for guitars and instruments on stage, rehearsals, recording applications, etc. The system includes a UHF diversity receiver, bodypack transmitter and Ci 1 instrument cable with 1/4″ phone connector. The transmitter and receiver synchronize channel and frequency at the touch of a button.

The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. This easy to use wireless instrument system will provide guitarists the freedom of cable free performance, with wired microphone audio quality.

Features:

Sturdy metal housing (transmitter and receiver)
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitters via infrared interface
User-friendly menu operation with more control options
Illuminated graphic display (transmitter and receiver)
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Programmable Mute function
Integrated Equalizer, Soundcheck mode and guitar tuner
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement

Specifications

System
Type of System	True Diversity UHF Wireless Instrument System
RF Carrier Frequency Range	606…648 MHz 823…865 MHz / Power supply unit UK 823…865 MHz / Power supply unit EU / Germany 823…865 MHz / Power supply unit EU 780…822 MHz / Power supply unit UK 780…822 MHz / Power supply unit EU / Germany 780…822 MHz / Power supply unit EU 734…776 MHz / Power supply unit US 734…776 MHz / Power supply unit EU 626…668 MHz / Power supply unit US 626…668 MHz / Power supply unit EU 566…608 MHz / Power supply unit US 566…608 MHz / Power supply unit EU 516…558 MHz / Power supply unit US 516…558 MHz / Power supply unit EU
Approx. Working Range	Not Specified By Manufacturer
Overall Frequency Response	Line: 25Hz – 18kHz Mic: 80Hz – 18kHz
Signal-to-Noise Ratio	> / – 110dBA
# Of Channels	1680 20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
# Of Simultaneous Systems	Not Specified By Manufacturer
Peak Deviation	±48 kHz
Compliance	ETS 300422 , ETS 300445 , CE , FCC

Receiver
Type of Receiver	EM100 Half-Rack Mountable True Diversity UHF
Sensitivity	with HDX, peak deviation: <2.5 μV at 52 dBAeff S/N
Adjacent Channel Isolation	≥ 65dB
Attenuation	Intermodulation attenuation: ≥ 65dB
Blocking	≥ 70dB
Squelch	Detachable
Outputs	1/4″ (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu
Headphone Monitoring	1/4″ Phone (Front Panel)
Power Requirements	12VDC
Battery Type/Approx. Life	Not Applicable
Display	Back-lit LCD Display
Mounting Options	Included GA 3 Rackmount Kit
Antenna Type	BNC Type x2
Dimensions	7.48 x 8.35 x 1.69″ (190 x 212 x 43mm)
Weight	1.99 lb (900g)

Transmitter
Type of Transmitter	SK100 Bodypack Transmitter
RF Output	@ 50 Ω: typ. 30mW
Frequency Response	25Hz – 18kHz (Line)
Maximum Input Voltage	3V (Line)
Input Impedance	40kΩ Unbalanced / 1MΩ
Type of Input Connector	Locking 1/8″ (3.5mm) Mini
Nominal Voltage	2.4V
Type of Microphone	Instrument Cable
Battery Type/Approx. Life	AA 1.5V Batteries x2 (8 Hours Typ.)
Mute Switch	Programmable Mute Function
Level Control	Yes
Antenna Type	1/4 Wave
Display	Back-Lit LCD
Dimensions (WxDxH)	3.23 x 2.92 x 0.94″ (82 x 64 x 25mm)
Weight	5.64 oz (160g)
