ไมโครโฟนไร้สาย Sennheiser EW100 G4-ME4 Lavalier Wireless Microphone

Name: ไมโครโฟนไร้สาย Sennheiser EW100 G4-ME4 Lavalier Wireless Microphone
Price: 28990.00 THB
Availability: InStock

ชุดไมค์ลอยแบบหนีบปกเสื้อ Sennheiser EW100 G4-ME4 เป็นชุดไมโครโฟนสำหรับย่าน UHF ในเจนเนเรชั่น 4 เครื่องส่ง EM 100 G4 Rackmount Receiver , เครื่องส่ง SK 100 G4 Bodypack transmitter , ไมค์หนีบปกเสื้อ ME 4 Cardioid Lavalier Mic

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿45,150.00~~ ฿28,990.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: Sennheiser

Description

Sennheiser EW100 G4-ME4 ระบบไมโครโฟนไร้สาย

ชุดไมค์ลอยแบบหนีบปกเสื้อ Sennheiser EW100 G4-ME4 เป็นชุดไมโครโฟนสำหรับย่าน UHF ในเจนเนเรชั่น 4 เครื่องส่ง EM 100 G4 Rackmount Receiver , เครื่องส่ง SK 100 G4 Bodypack transmitter , ไมค์หนีบปกเสื้อ ME 4 Cardioid Lavalier Mic

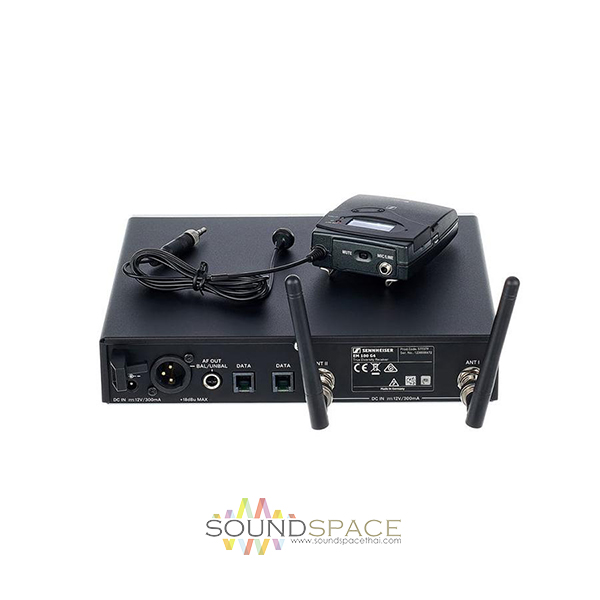

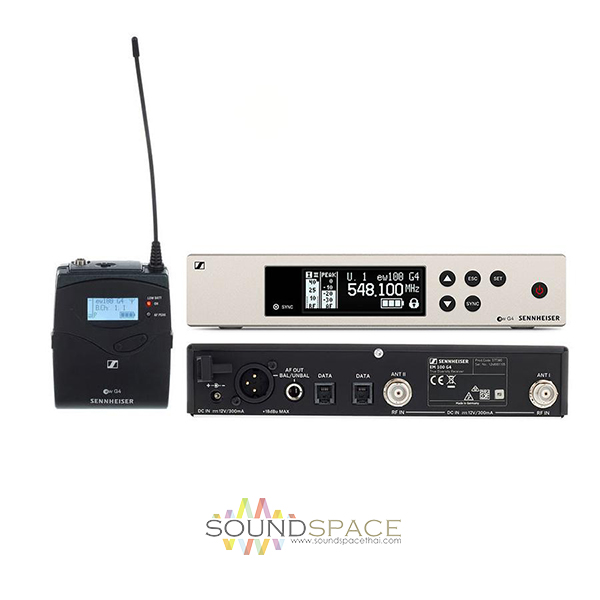

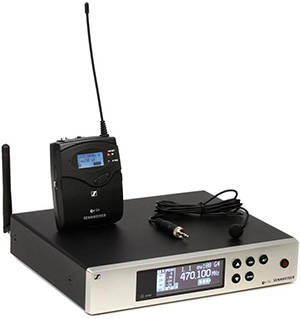

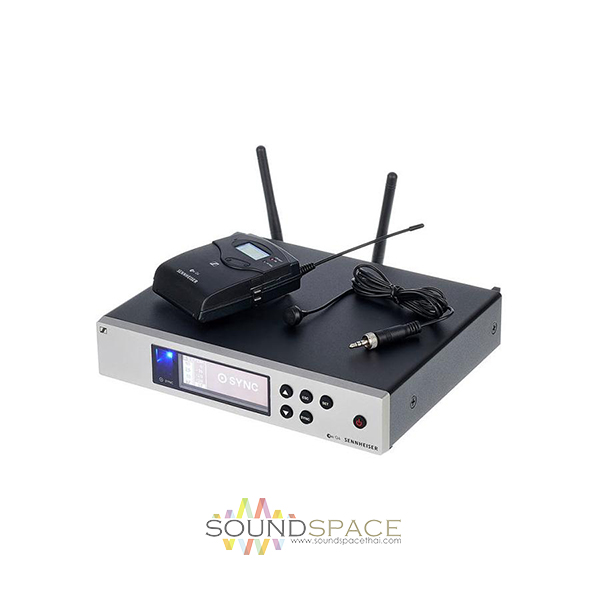

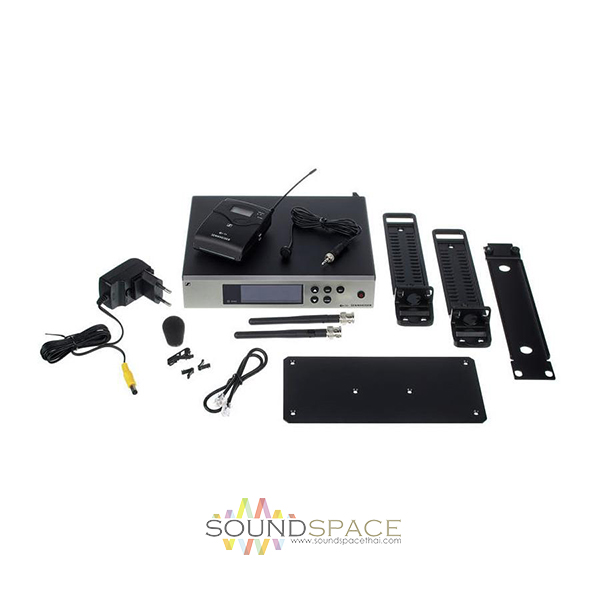

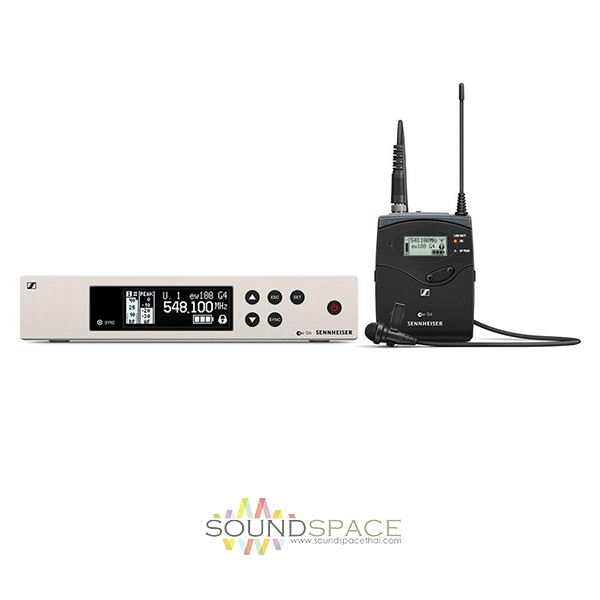

The ew 100 G4-ME 4 Wireless Bodypack System with ME 4 Cardioid Lavalier Microphone from Sennheiser is the latest addition to their evolution family of wireless microphones that is fully compatible with all previous series. This kit includes an EM100 G4 UHF diversity rackmount receiver, an SK 100 G4 bodypack transmitter with ME 4 cardioid lavalier microphone, a GA3 rackmount kit, and a RJ10 linking cable. It can be used to capture audio in indoor environments for hands-free speech and interview applications.

Both transmitter and receiver synchronize channel and frequency at the touch of a button. The bodypack transmitter allows you to charge the (optional) rechargeable battery pack while installed. The receiver’s high-contrast LCD display allows for easy operation under dimly-lit conditions and its user-friendly menu makes operation quick and easy.

The ew 100 G4-ME 4 Wireless Bodypack System with ME 4 cardioid lavalier microphone is at home in theaters, clubs, town halls, houses of worship, and more.

Features:

Robust bodypack transmitter for daily use on stage.
Easy and flexible wireless synchronization between transmitter and receiver via infrared.
Fast frequency allocation for up to 12 receivers via updated linking functionality.
Up to 20 compatible channels.
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
Transmission Range: up to 100 meters / 300′
High RF output power (up to 30 mW) depending on country regulations.

Specifications

SK 100 G4 Wireless Bodypack Transmitter

Modulation	Wideband FM
Frequency Range	G: (566 to 608 MHz)
Transmission Frequencies	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Frequency Stability	≤ ±15 ppm
RF Output Power	Maximum 30 mW at 50 Ohms
Pilot Tone Squelch	Can be switched off
Compander	Sennheiser HDX
AF Frequency Response	Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
Maximum Input Voltage	Microphone/Line: 3 V eff
Input Impedance	Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
Input Capacitance	Switchable
Input Sensitivity Range	60 dB, adjustable in 3 dB steps
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage	3 V battery / 2.4 V rechargeable battery
Current Consumption	At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA
Operating Time	Typically 8 hours
Dimensions (W x L x H)	3.2 x 2.5 x 0.6″ (82 x 64 x 24 mm)
Weight	5.6 oz (160 g)

EM 100 G4 Wireless UHF True Diversity Rackmount Receiver

Receiver
Frequency Band	G: (566 to 608 MHz)
Type of Receiver	EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Receiver Type	True diversity
Sensitivity	< 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity	Typically ≥ 65 dB
Intermodulation Attenuation	Typically ≥ 65 dB
Blocking	≥ 70 dB
Squelch	Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV
Pilot Tone	Squelch: Can be switched off
Antenna Inputs	2 x BNC sockets
Compander	Sennheiser HDX
EQ Presets	Switchable, act on line and monitor outputs Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
AF Output	1/4″ (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu
Output Range	AF Out: 48 dB (3 dB steps)
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	12 VDC, 300 mA
Dimensions (W x L x H)	7.48 x 8.35 x 1.69″ (190 x 212 x 43 mm)
Weight	2.16 lb (980 g)

ME 4 Cardioid Lavalier Condenser Microphone

Analog Performance
Sound Field	โมโน
Operating Principle	ไล่ระดับความดัน
ตัวแปลงสัญญาณ	อิเล็กเตรตคอนเดนเซอร์
รูปแบบขั้วโลก	โรคหัวใจ
ช่วงความถี่	50 Hz ถึง 18 kHz
ระดับเสียงเทียบเท่า	31 เดซิเบล
SPL . สูงสุด	120 เดซิเบล SPL
ความไว	40 mV/Pa ที่ 1 kHz

ทั่วไป
ขั้วต่อเอาต์พุต	1/8″ (3.5 มม.)
ความยาวสายเคเบิล	5.25 ‘ / 1.6 ม.
แรงดันใช้งาน	7.5 V
เส้นผ่านศูนย์กลาง	0.49″ / 12.5 มม.
