Sale

ไมค์ลอย Sennheiser EW100 G4-945-S Handheld Wireless System

Name: ไมค์ลอย Sennheiser EW100 G4-945-S Handheld Wireless System
Price: 30990.00 THB
Availability: InStock

ชุดไมค์ไร้สายแบบมือถือ Sennheiser EW 100 G4-945-S เป็นไมโครโฟนไร้สายย่าน UHF ในเจนเนอเรชั่น 4 ประกอบด้วยเครื่องรับ EM 100 G4 Rackmount Receiver, เครื่องส่ง (ไมโครโฟน) SKM 100 G4 โดยมีหัวไมค์เป็นรุ่น e945, 20 Banks with 12 Channel Presets Each, Auto Frequency Scan

ไม่รวมภาษีมูลค่าเพิ่ม…..

~~฿53,500.00~~ ฿30,990.00

สอบถามและสั่งซื้อสินค้า

Category: ไมโครโฟนไร้สาย (WireLess Mic) Tag: Sennheiser

Description

Sennheiser EW 100 G4-945-S Wireless Handheld Microphone System

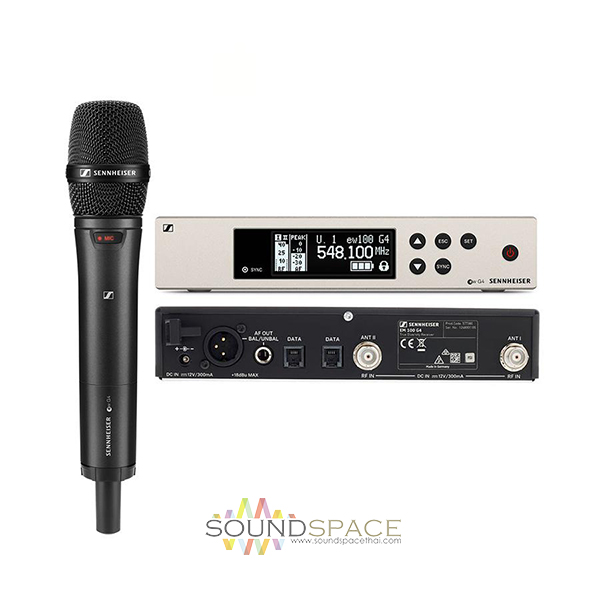

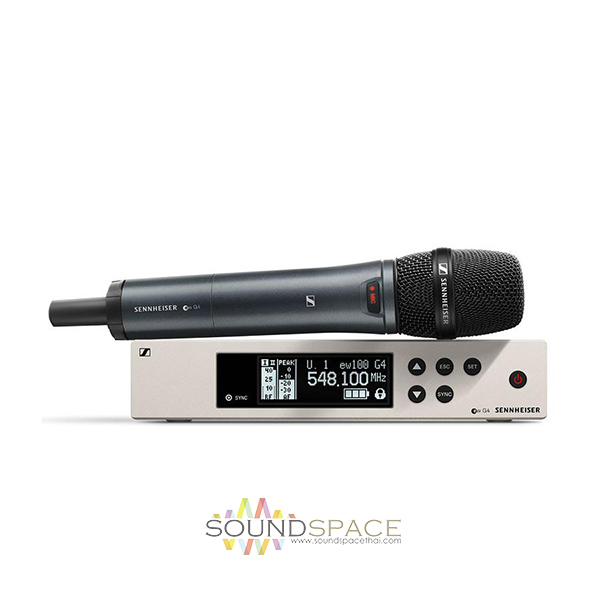

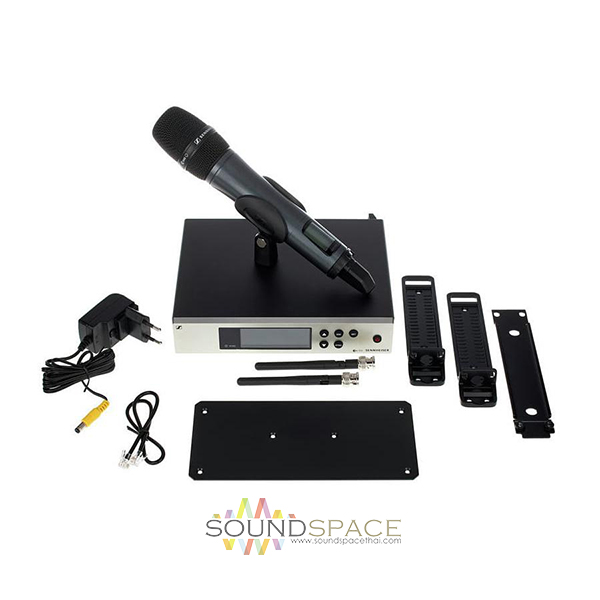

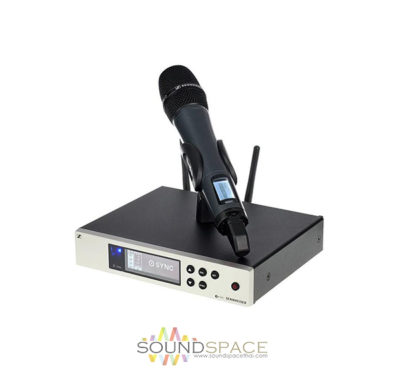

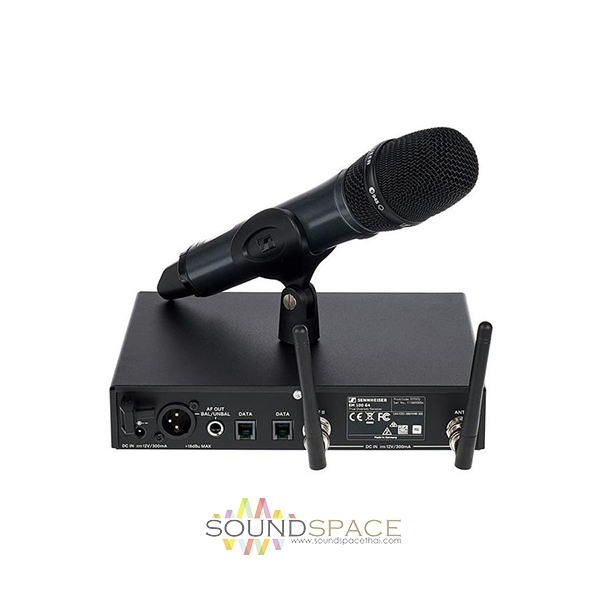

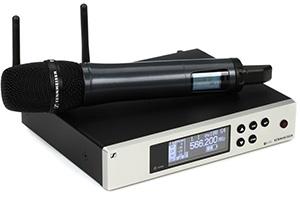

The ew 100-945 G4 Wireless Handheld Microphone System with e945 Mic from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. This package includes the SKM 100 G4 handheld transmitter with mute switch, a dynamic e945 supercardioid capsule, a sleek designed EM 100 G4 rackmount receiver, a GA3 rack kit, a RJ10 linking cable, and a mic clip. This wireless vocal set can be used to capture audio for live stage, theater, vocal, and speech applications.

Some of the G4’s updated features include: Multi-channel setup capabilities allowing up to 12 systems—daisy-chained with an easy setup function (cable included), a high-contrast LCD display, blue sync LED, and a dedicated escape button. The SKM transmitter is lighter in weight and built with an aluminum housing, and is designed with a programmable mute switch. A rackmount kit is also included.

Additionally, the transmitter and receiver synchronize channel and frequency at the touch of a button. The handheld microphone allows you to charge the (optional) rechargeable battery pack while it remains in the handheld transmitter. The receiver’s display allows for easy operation under dimly lit conditions, and its user-friendly menu makes operation quick and easy. The ew 100-945 G4 Wireless Handheld Microphone System is at home in theaters, clubs, town halls, houses of worship, DJ applications, and more.

Features:

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission range: Up to 100 meters / 300′
High RF output power (up to 30 mW) depending on country regulations

Specifications

Receiver
Frequency Band	A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz GB: 606 – 648 MHz G: 566 – 608 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz E: 823 – 865 MHz 1G8: 1785 – 1800 MHz
Type of Receiver	EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Receiver Type	True diversity
Sensitivity	< 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity	Typically ≥ 65 dB
Intermodulation Attenuation	Typically ≥ 65 dB
Blocking	≥ 70 dB
Squelch	Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV
Pilot Tone	Squelch: Can be switched off
Antenna Inputs	2 x BNC sockets
Compander	Sennheiser HDX
EQ Presets	Switchable, act on line and monitor outputs Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
AF Output	1/4″ (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu
Output Range	AF Out: 48 dB (3 dB steps)
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	12 VDC, 300 mA
Dimensions (W x L x H)	7.48 x 8.35 x 1.69″ (190 x 212 x 43 mm)
Weight	2.16 lb (980 g)

SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule

Modulation	Wideband FM
Frequency Range	A1: (470 to 516 MHz)
Transmission Frequencies	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Frequency Stability	≤ ±15 ppm
RF Output Power	Maximum 30 mW at 50 Ohms
Pilot Tone Squelch	Can be switched off
Compander	Sennheiser HDX
AF Frequency Response	80 Hz to 18 kHz
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
Maximum Input Voltage	3 V eff
Input Impedance	40 kOhms
Input Capacitance	Switchable
Input Sensitivity Range	48 dB, adjustable in 6 dB steps
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage	3 V battery / 2.4 V rechargeable battery
Current Consumption	At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA
Operating Time	Typically 8 hours
Dimensions (W x L x H)	2.0 x 10.4 / 50 x 265 mm
Weight	15.9 oz / 450 g

MMD 945B Supercardioid Dynamic Capsule

Compatible Transmitters	SKM 100/300/500 G3/G4, SKM 2000/6000/9000, SKM D1/AVX, SL handheld DW
Type	Dynamic
Polar Pattern	Supercardioid
Sound Pressure Level	154 dB
Sensitivity	1.6 mV/Pa
