อุปกรณ์แยกและขยายสัญญาณ Sennheiser ASA214 Active Antenna Splitter
อุปกรณ์แยกและขยายสัญญาณสำหรับชุดไมค์ไร้สาย ระบบ UHF Sennheiser ASA214 Active Antenna Splitter, ใช้สำหรับชุดไมโครโฟน Sennheiser ew G3 and ew G4 Receivers, 8 x BNC Cables, Up to 4 true diversity receivers can be used with two external antennas Full metal housing
ไม่รวมภาษีมูลค่าเพิ่ม…
฿28,900.00 ฿26,100.00
Description

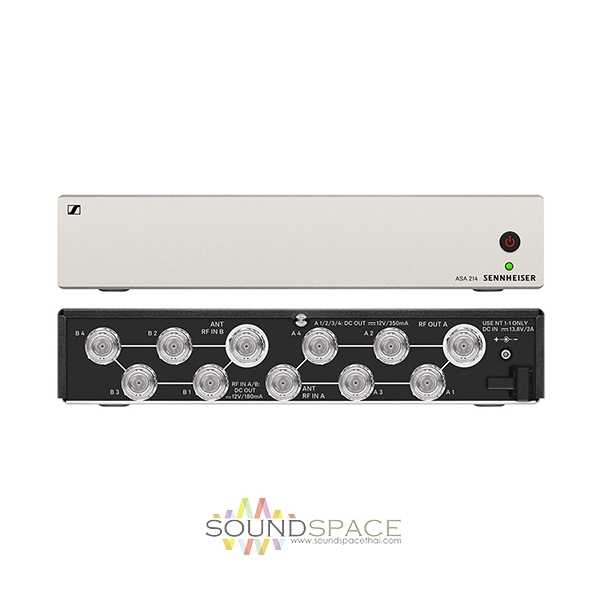

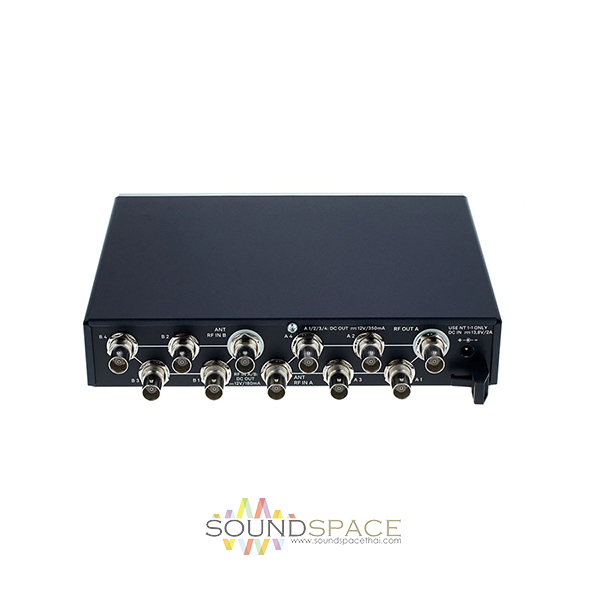

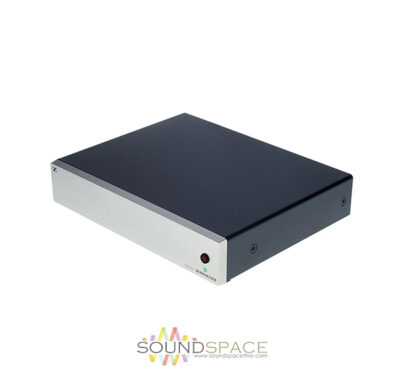

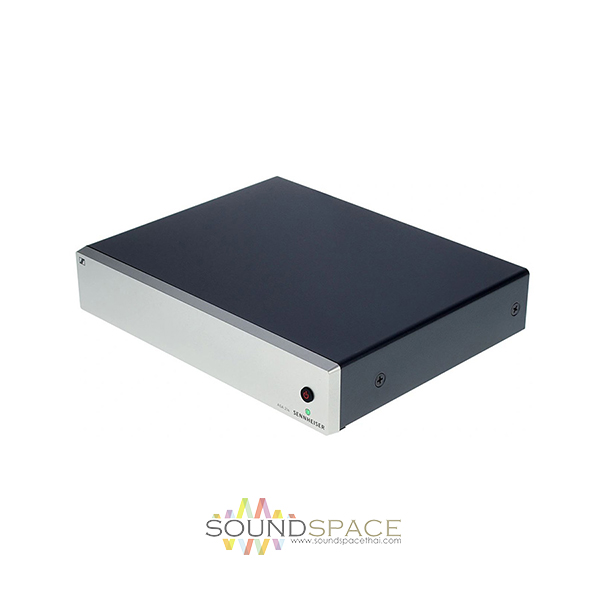

Sennheiser ASA214 Active Antenna Splitter
อุปกรณ์แยกและขยายสัญญาณสำหรับชุดไมค์ไร้สาย ระบบ UHF Sennheiser ASA214 Active Antenna Splitter, ใช้สำหรับชุดไมโครโฟน Sennheiser ew G3 and ew G4 Receivers, 8 x BNC Cables, Up to 4 true diversity receivers can be used with two external antennas Full metal housing

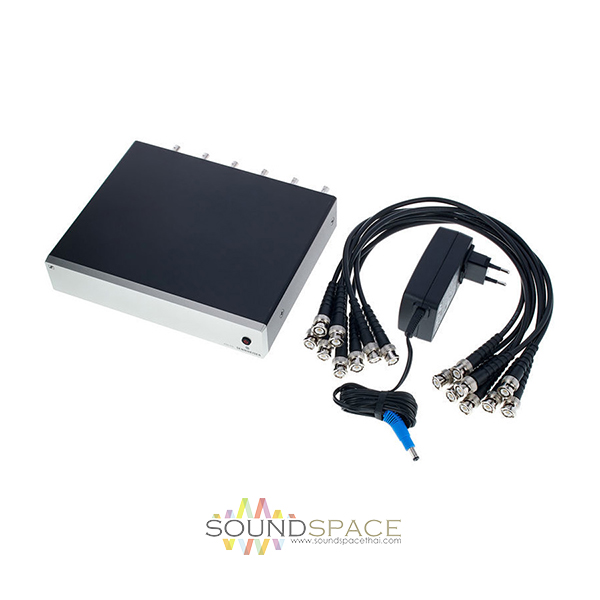

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with two antennas.
The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.
Features:
- Compatible with G4 and G3 systems
- Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed
- Up to 4 true diversity receivers can be used with two external antennas
- Full metal housing
Specifications
| Impedance | 50 Ω |
| Power consumption | max. 2.0 A with connected receivers and boosters |
| Storage temperature | -20°C – +70°C |
| Operating temperature | -10°C – +55°C |
| Power supply | 13,8 V DC (with NT 1-1 mains unit) |
| Antenna connector | BNC |
| Frequency range | 470-870 MHz (UHF), 1785-1800 MHz (1G8) |
| Operating relative humidity | 5 – 95 % |
| Dimensions | approx. 212 x 168 x 43 mm |
| Weight | approx. 1090 g |
