Sennheiser ASA1 Active Antenna Splitter
อุปกรณ์แยกสัญญานเสาอากาศไมโครโฟนไร้สาย Sennheiser ASA1 Active Antenna Splitter, up to 4 stationary diversity receivers, With 4-fold voltage distribution, For use with Sennheiser wireless G3 receivers, Including 8x BNC cables
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿25,420.00 ฿19,000.00
Description

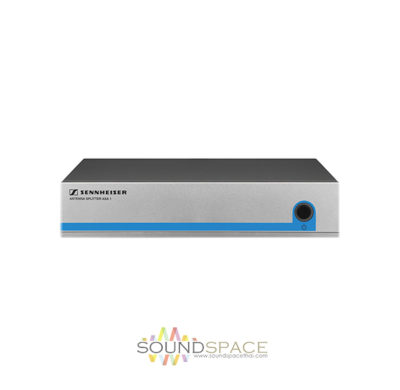

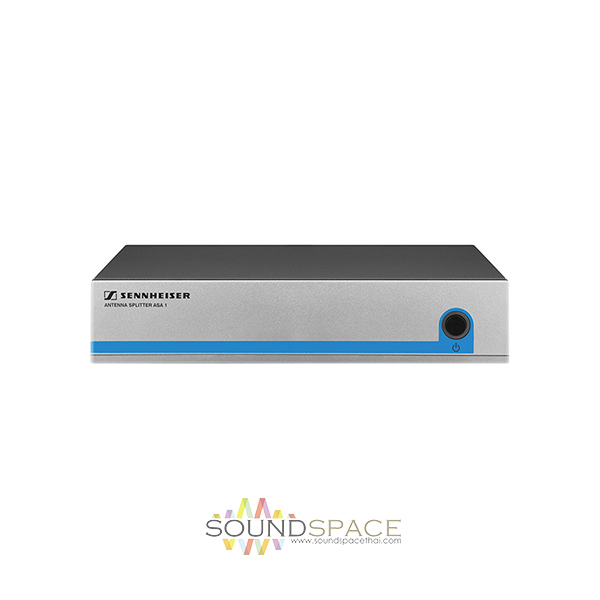

Sennheiser ASA 1 Active Antenna Splitter
อุปกรณ์แยกสัญญานเสาอากาศไมโครโฟนไร้สาย Sennheiser ASA1 Active Antenna Splitter, up to 4 stationary diversity receivers, With 4-fold voltage distribution, For use with Sennheiser wireless G3 receivers, Including 8x BNC cables

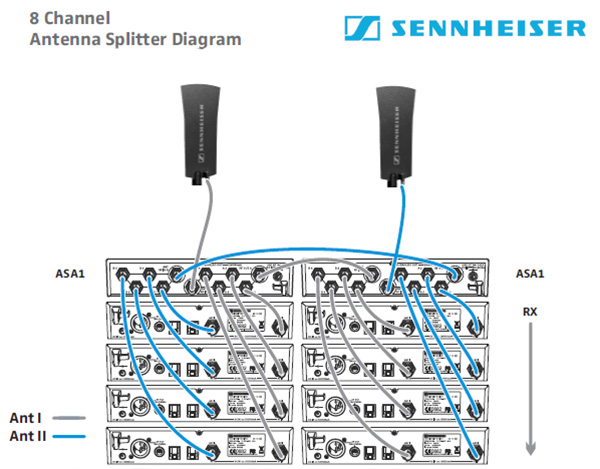

The Sennheiser ASA 1 Active Antenna Splitter is a rack mountable antenna splitter that allows for up to 4 EW receivers to share one pair of antennas without signal attenuation. If desired, 2 splitters can be linked to create an 8-channel system.
This unit requires a NT 1-1 plug-in adapter (sold separately) for operation.
Features:
- For up to 4 stationary diversity receivers
- Cascadable
- With 4-fold voltage distribution
- Including 8x BNC cables
- Optional rack mount GA3
Specifications

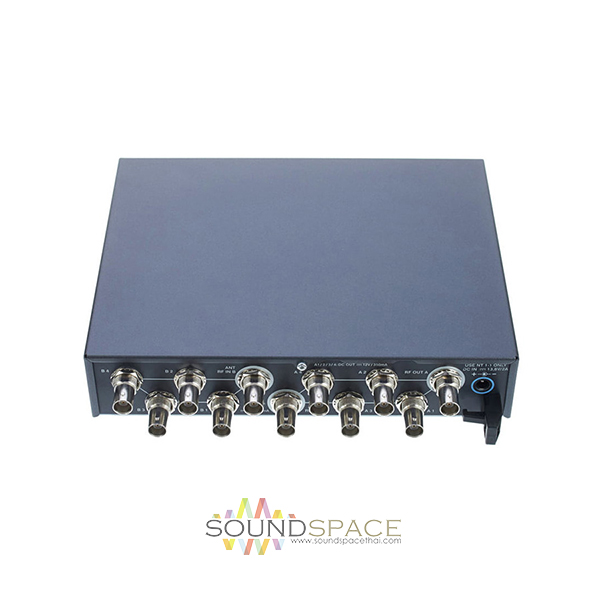

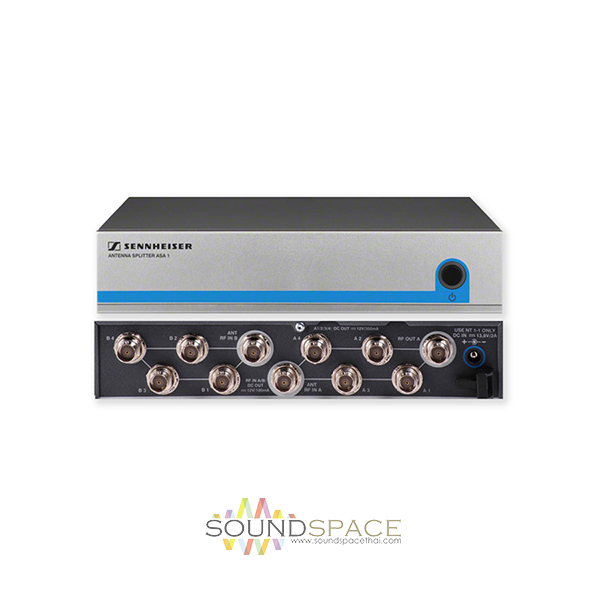

| Connector | Input: BNC x 8 Output: BNC x 2 (RF Out) |
| Frequency Range | 500 to 870 MHz (-3 dB) |
| Operating Voltage | 13.8 VDC (with NT 1-1 mains unit) |
| Current Consumption | max 2.0 A with 4 receivers and 2 antenna boosters |
| Supply Voltage | Supply Voltage of Antenna Booster at ANT RF In A and ANT RF In B: 12 V 130 mA Supply Voltage of Receivers at A1 – A4: 12 V (protected from reverse feed), 350 mA |
| Relative Humidity | 5 to 95% |
| Operating Temperature | 14 to 131°F (-10 to +55°C) |
| Storage Temperature | -4 to 158°F (-20 to +70°C) |
| Dimensions | 8.35 x 6.61 x 1.69″ (212 x 168 x 43 mm) |
| Weight | 2.4 lb (1.09 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.2 lb |
| Box Dimensions (LxWxH) | 9.9 x 8.6 x 3.2″ |
