แผงรับสัญญาณ Sennheiser AD3700 Active Directional Antenna
แผงรับสัญญาณชุดไมโครโฟนไร้สาย Sennheiser AD3700 Active Directional Antenna, Integrated AB 3700 Booster, Front-to-Back Ratio of >= 14 dB, Up to 15 dB of Amplification, compatible with the EM 3731, EM 3732-II, and EM 2000 wireless receivers
ไม่รวมภาษีมูลค่าเพิ่ม…
฿55,900.00
Description

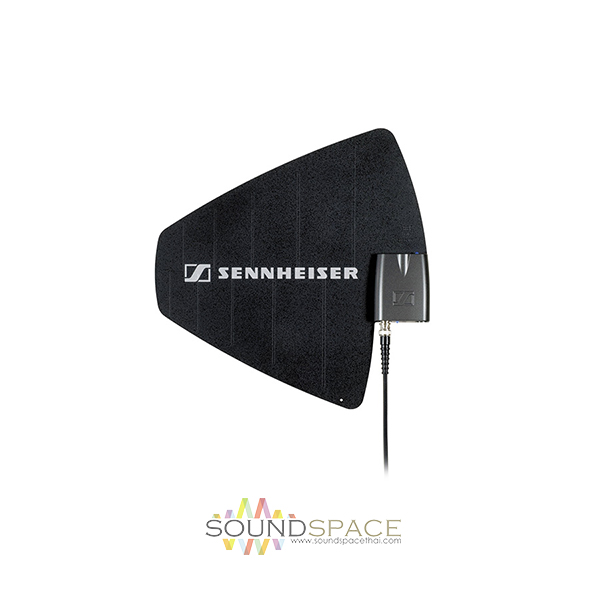

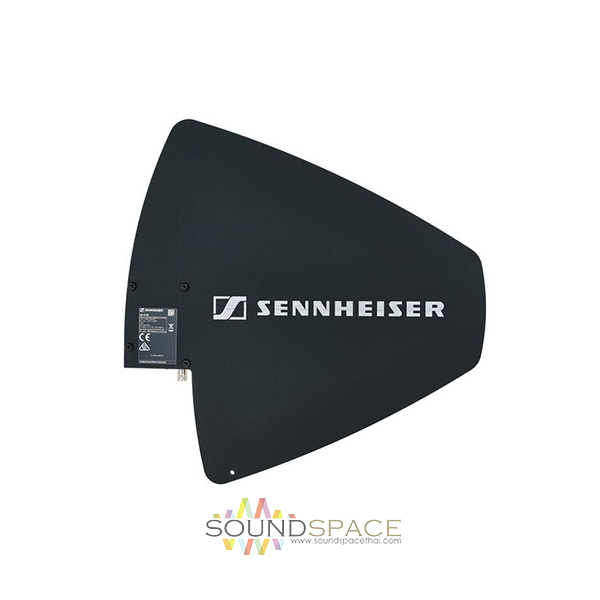

Sennheiser AD3700 Active Directional Antenna
แผงรับสัญญาณชุดไมโครโฟนไร้สาย Sennheiser AD3700 Active Directional Antenna, Integrated AB 3700 Booster, Front-to-Back Ratio of >= 14 dB, Up to 15 dB of Amplification, compatible with the EM 3731, EM 3732-II, and EM 2000 wireless receivers
The AD 3700 Active Directional Antenna from Sennheiser features an integrated AB 3700 booster, and has a front-to-back ratio of >= 14 dB.
It can supply up to 15 dB of amplification, and is compatible with the EM 3731, EM 3732-II, and EM 2000 wireless receivers. It’s powered from the connected receiver, via its BNC input.
Features:
- Integrated AB 3700 Booster
- Front-to-Back Ratio of >= 14 dB
- Up to 15 dB of Amplification
- Compatible with EM3731, 3732-II, EM2000
Specifications
| Frequency Range | 470 to 866 MHz |
| Amplification | Bypass (-3 dB), 5 dB, 10 dB, 15 dB adjustable Without DC feed: -6 dB |
| RF Connector | 1 x BNC |
| Power Supply | 9-15 V DC / 160-100 mA, DC feed via antenna cable (BNC connector) |
| Mounting | 3/8 or 5/8″ thread |
| Compatibility | Compatible with EM 3731, EM 3732-II and EM 2000 wireless receivers |
| Dimensions | Not specified by manufacturer |
| Weight | 1.81 lb (0.82 kg) |
Downloads
ดาวน์โหลด Manual Sennheiser AD 3700
