ลำโพงไลน์อาเรย์ RCF NXL 24-A ACTIVE TWO-WAY ARRAY
ลำโพงคอลัมน์ RCF NX-L24A มีกำลังขยายในตัว Column Array Loudspeaker ขนาดดอกลำโพง woofers 6 นิ้ว 4 ดอก, 2.5″ voice coil RCF Precision C. Driver on a waveguide, มีกำลังขับ 1400 วัตต์ RMS 700 วัตต์ Peak Class D Bi-Amplification
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿91,960.00
Description

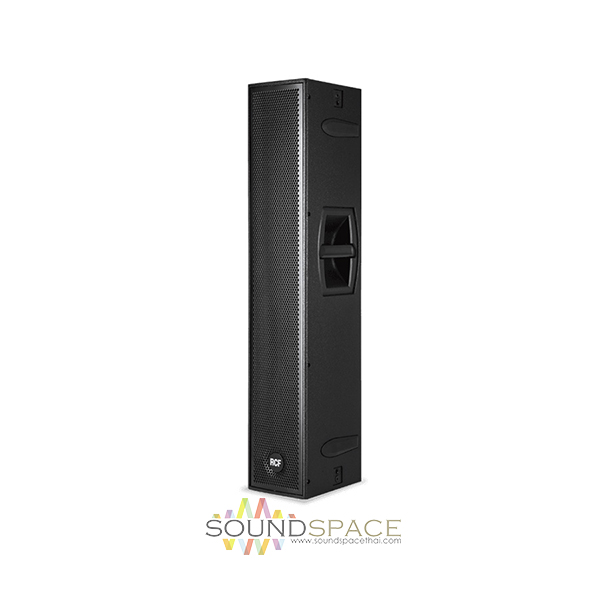

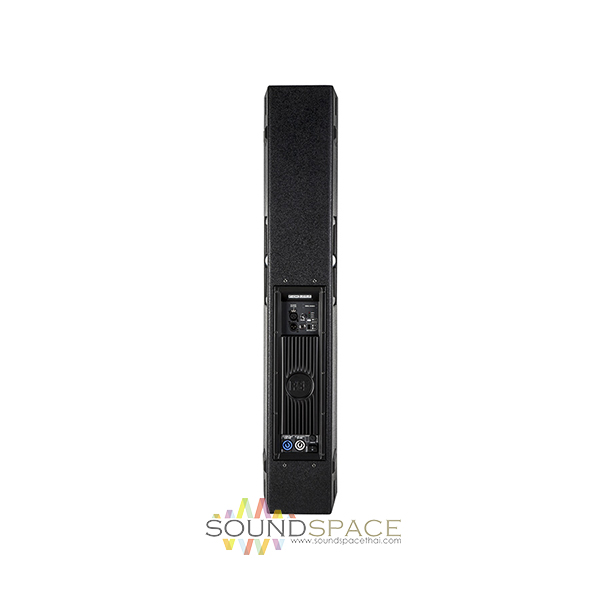

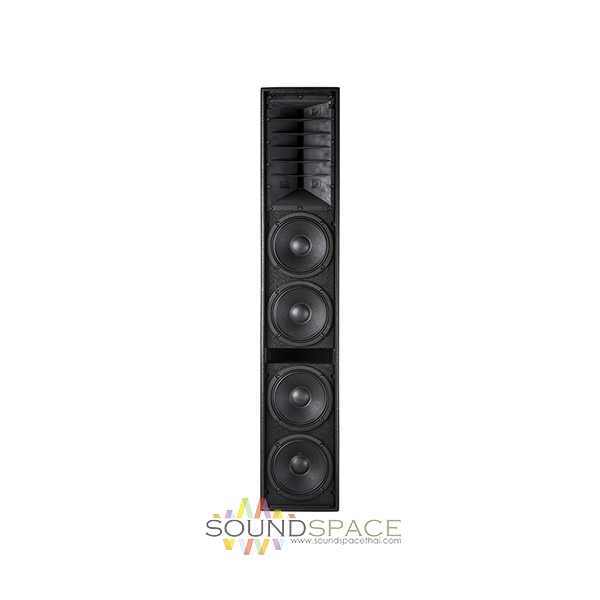

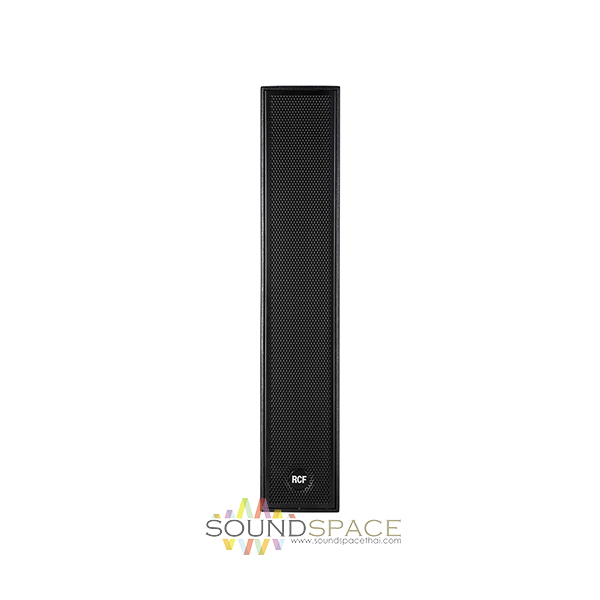

RCF NX-L24A Column Array Powered Speaker 4×6″
ลำโพงคอลัมน์ RCF NX-L24A มีกำลังขยายในตัว Column Array Loudspeaker ขนาดดอกลำโพง woofers 6 นิ้ว 4 ดอก, 2.5″ voice coil RCF Precision C. Driver on a waveguide, มีกำลังขับ 1400 วัตต์ RMS 700 วัตต์ Peak Class D Bi-Amplification
The NXL 24-A is an active column speaker array system with four 6” high power woofers and a 2.5” voice coil compression driver loaded on a 100° x 30° constant directivity waveguide.
The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.
Features:
- 1,400 Watt Class D bi-amplification
- 131 dB SPL Max
- 65 Hz – 20 kHz frequency response
- 4 x 6″ Woofers
- 2.5″ voice coil RCF Precision C. Driver on a waveguide
- 100° x 30° slightly tilted pattern control
- DSP controlled input section with single or dual EQ preset
- East-to-fly and install with built-in rigging points and pole mount socket
Specifications
| Frequency Response | 65 Hz to 20 kHz |
| Maximum Sound Pressure Level (SPL) | 131 dB |
| Coverage Angle | Horizontal: 120° Vertical: 30° |
| Compression Driver | 2″ (5.1 cm) 2.5″ (6.4 cm) voice coil |
| Woofer | 4 x 6.0″ (15.2 cm) 1.5″ (3.8 cm) voice coil |
| Input Sensitivity | -2 dBu / + 4 dBu |
| Crossover Frequencies | 800 Hz |
| Protection | Themel, RMS |
| Limiter | Soft limiter |
| Frequencies | High: D / 400 W Peak 200 RMS Low: D / 1000 W Peak 500 RMS |
| Connectors | 1 x 3-pin XLR female, audio input 1 x 1/4″ phone jack, audio input 1 x 3-pin XLR male, signal output 1 x PowerCON, power input 1 x PowerCON, power output |
| Controls | 1 x Volume 1 x Flat/Boost 1 x Input sensitivity switch 1 x Power main switch |
| LED Indicators | 1 x Limiter, red 1 x Signal, green 1 x Power status, green |
| Power Supply | Switching 1400 W Peak 700 RMS |
| Cooling | Convection |
| Mounting | Mount, stack, fly |
| Dimensions | 41.6 x 7.9 x 10.8″ (105.6 x 20.1 x 27.4 cm) |
| Weight | 58.8 lb (26.4 kg) |
