ตู้ลำโพง RCF NX 985-A Professional 3-Way Active Speaker 15″

Name: ตู้ลำโพง RCF NX 985-A Professional 3-Way Active Speaker 15"
Price: 137880.00 THB
Availability: InStock

ลำโพง RCF NX 985-A แบบมีแอมป์ในตัว เป็นตู้แบบ 3-Way ขนาดดอกลำโพง 15 นิ้ว เสียงกลาง 8 นิ้ว เสียงแหลมขนาด 1.75 นิ้ว มีกำลังขับ 2100W Class-D Bi-Amplification, Advanced DSP with 3 Presets, FiRPHASE Filters for Coherent Sound

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿137,880.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบมีกำลังขยายในตัว (Active) Tag: RCF

Description

RCF NX 985-A Professional 3-Way Active Speaker 15″ 2100W

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound.

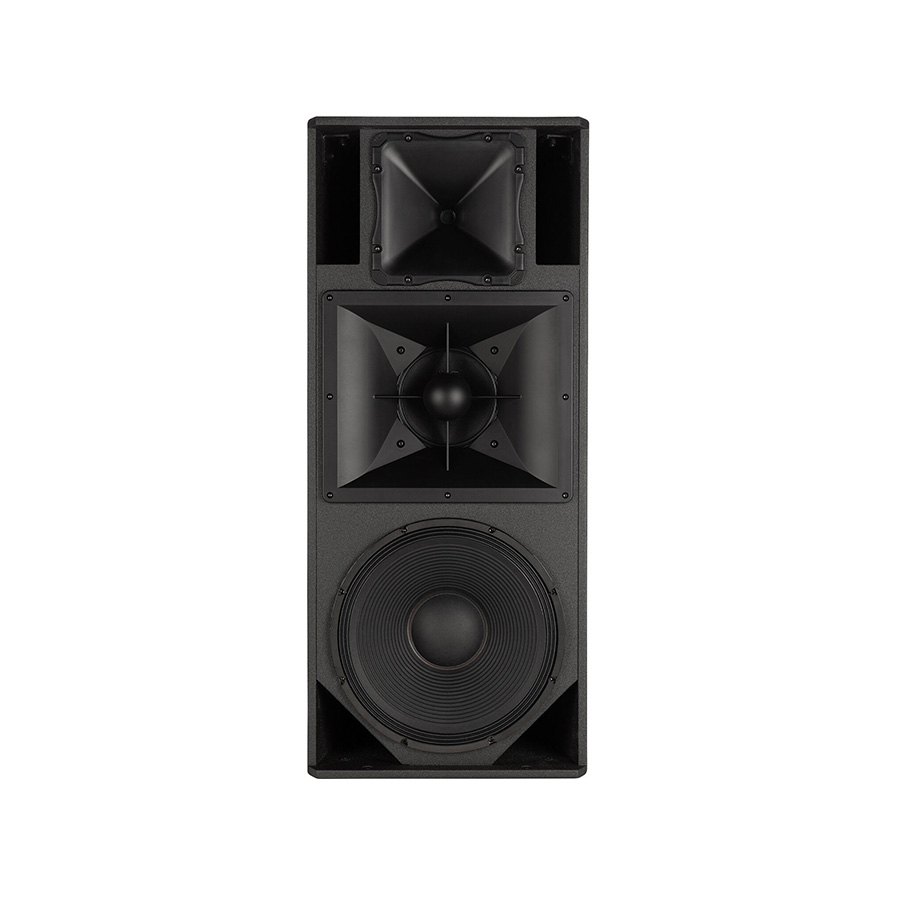

The three-way design features a 1.75″ neodymium compression driver with a constant directivity waveguide, 8″ cone midrange on a phase-coherent waveguide, and a 15″ high power woofer.

Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability.

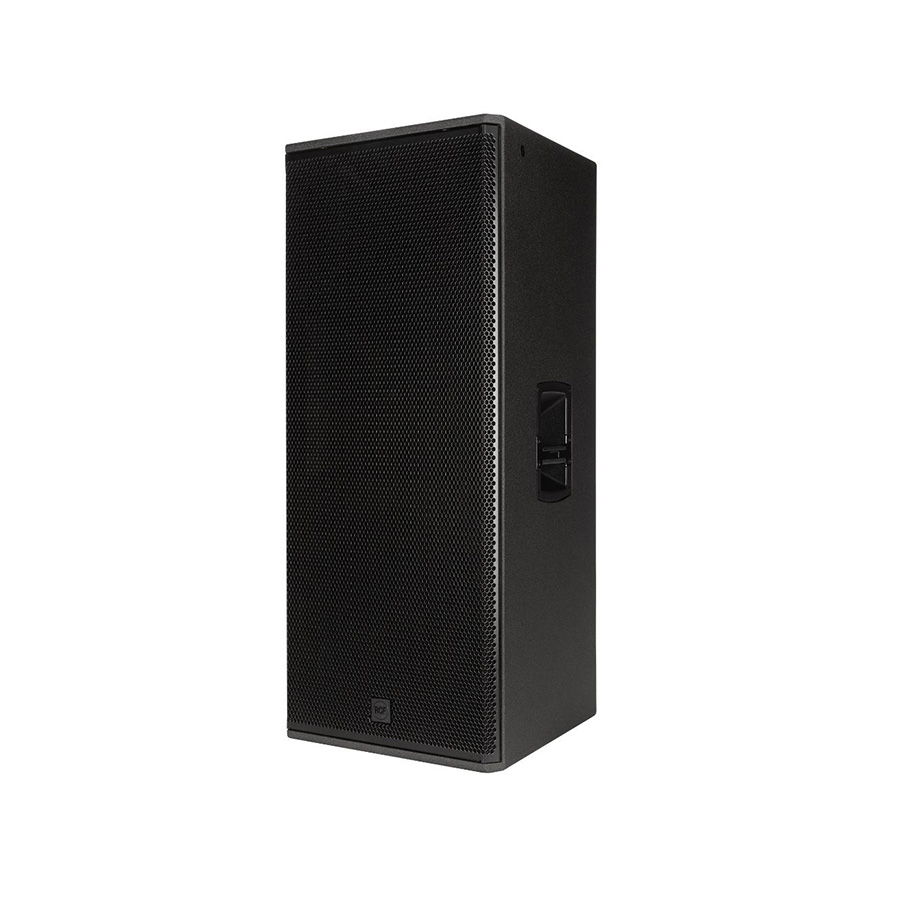

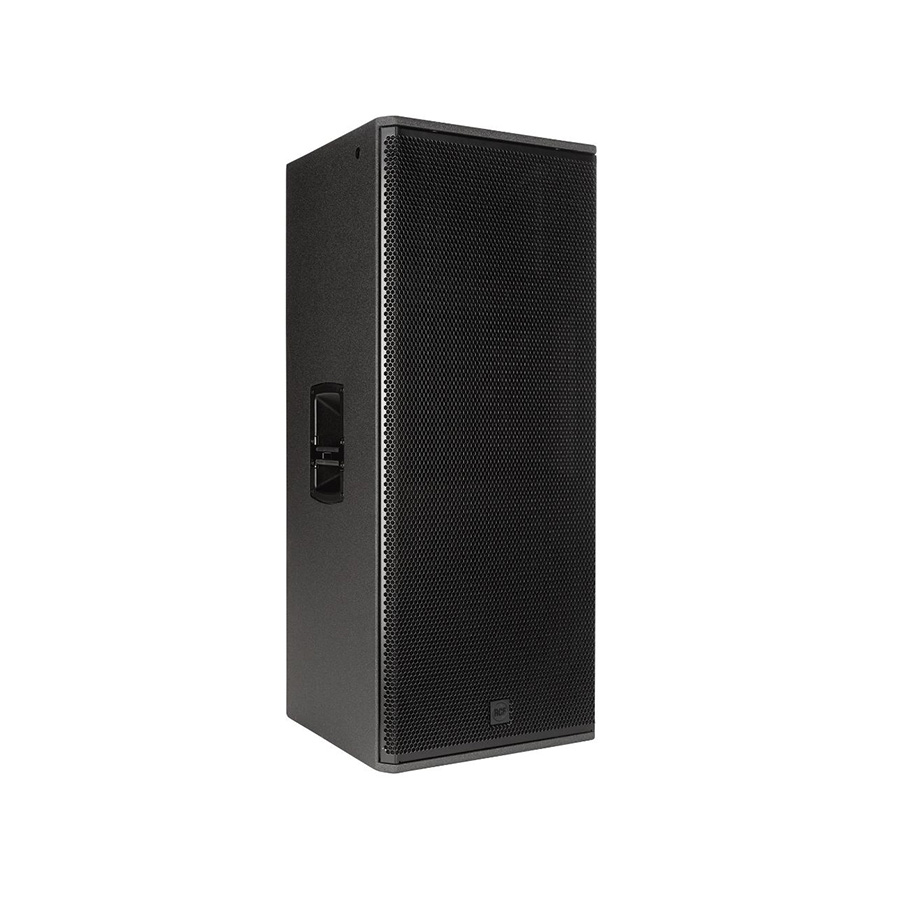

The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

Features:

Up to 138 dB Sound Pressure Level
2100W Class-D Amplifier
40-20000 Hz linear frequency response
1.75″ Neodymium Compression Driver with Peek diaphragm
8″ Midrange, 2.5″ v.c.
15″ High Power Woofer
Bass Motion Control and FiRPHASE processing
M10 Rigging Points
IP Rated Powercon TRUE1 TOP IN/OUT

Specifications

Configuration	Active 3-Way
Enclosure Type	Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity	2100 W Peak
Amplifier Power Rating	LF: 1400 W Peak MF: 1 x 500 W Peak HF: 200 W Peak
Amplifier Class	Class-D

Drivers

HF Driver	1 x 1″ / 25.4 mm Polyimide Compression Driver
HF Voice Coil	1.75″ / 44.45 mm
MF Driver	1 x 8″ / 203.2 mm
MF Voice Coil	2.5″ / 63.5 mm
LF Driver	1 x 15″ / 381 mm Woofer
LF Voice Coil	3″ / 76.2 mm
Magnet	Neodymium

Performance

Frequency Response	40 Hz to 20 kHz
Maximum SPL	138 dB (Peak)
Coverage Angle	100° H x 60° V
Input Sensitivity	+4 dBu to -2 dBu
Protections	RMS, Signal Limiter, Thermal

Connectivity

Audio I/O	1 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Input 1 x XLR 3-Pin Male Balanced Thru/Output
Network I/O	None
USB	None
Wireless Connectivity	None

Signal Processing

Crossover	1200 Hz (Internal) 320 Hz (Internal)
EQ	None
Parametric EQ	None
Semi-Parametric EQ	None
Dynamic Processing	Soft Limiter
Alignment Delay	None
Phase Adjustment	None
Digital Signal Processing	FIR Filter, Venue Settings

Power

AC Input Power	100 to 120 VAC, 60 Hz

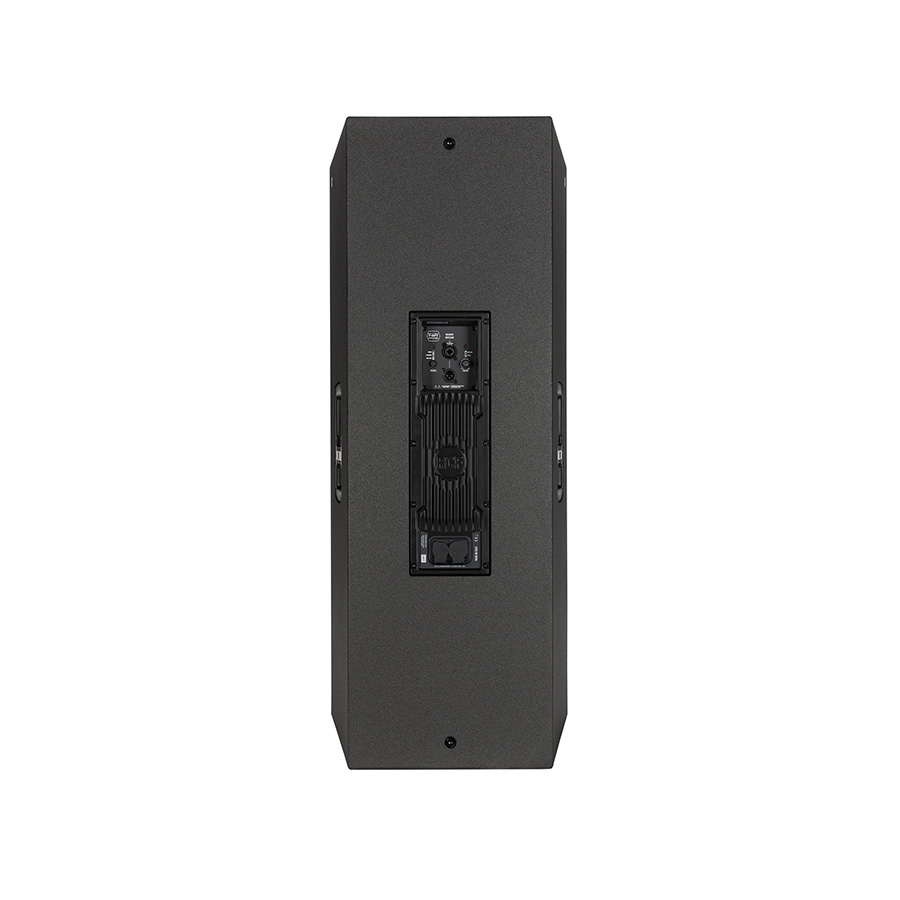

AC Power I/O	1 x PowerCON TRUE1 Input (Locking) 1 x PowerCON TRUE1 Output (Locking)

Physical

Mounting	3 x M10 Fly Point (Top) 1 x M10 Fly Point (Each Side) 1 x M10 Fly Point (Bottom) 2 x M10 Fly Point (Rear)
Handles	1 x Each Side
Cooling	Convection, Heat Sink
Construction Material	Plywood, Stainless Steel Grille
Dimensions	42.3 x 18.7 x 18.2″ / 1074.4 x 475 x 462.3 mm
Weight	99.2 lb / 45 kg
