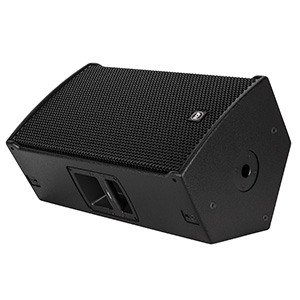

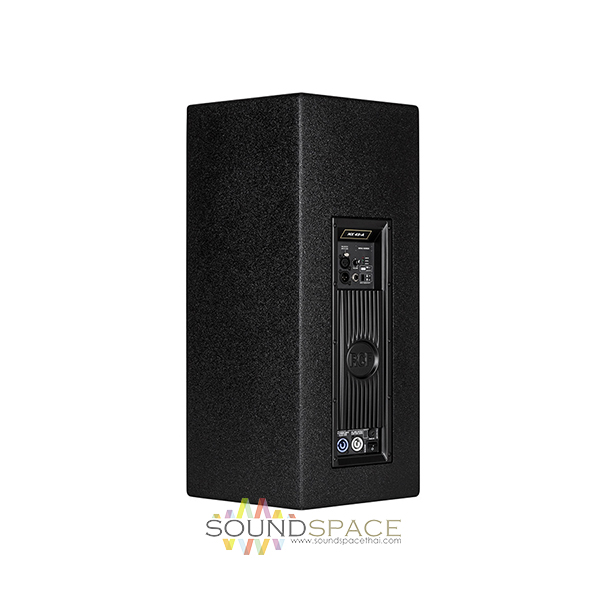

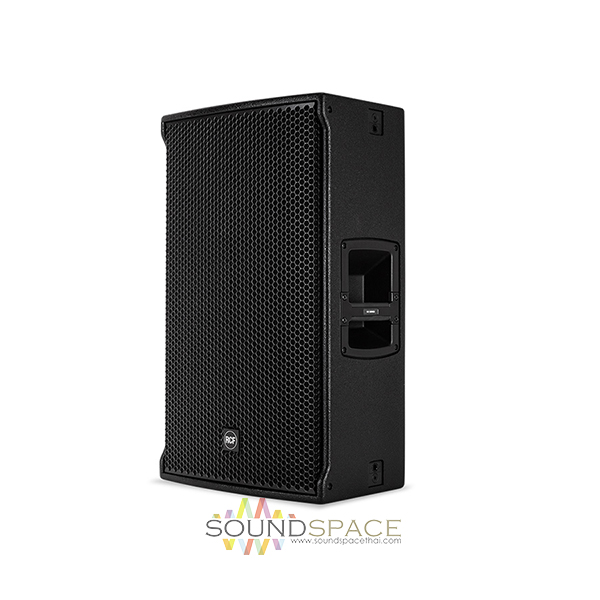

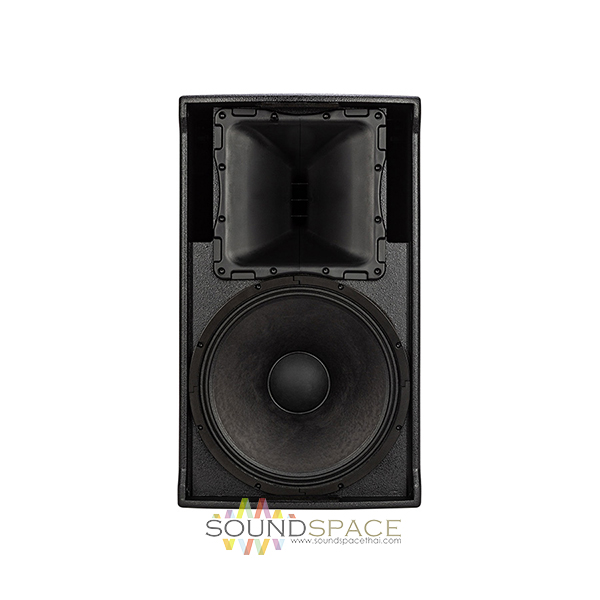

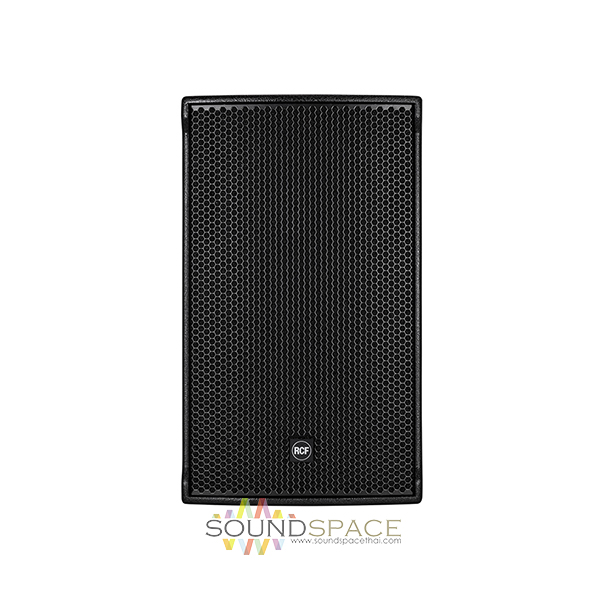

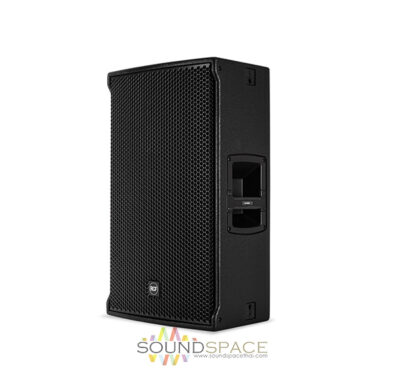

ลำโพง RCF NX 45-A Active Loudspeaker
ตู้ลำโพงแบบมีกำลังขยายในตัว RCF NX 45-A เป็นลำโพง 2 ทาง Active Loudspeaker ขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลมขนาด 4 นิ้ว Titanium Compression Driver, 90° x 50° constant directivity coverage, มีกำลังขับ 700 วัตต์ RMS, 1400 วัตต์ Peak, Class-D amplifier
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿81,070.00
Description
RCF NX 45-A Active Loudspeaker 15″
ตู้ลำโพงแบบมีกำลังขยายในตัว RCF NX 45-A เป็นลำโพง 2 ทาง Active Loudspeaker ขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลมขนาด 4 นิ้ว Titanium Compression Driver, 90° x 50° constant directivity coverage, มีกำลังขับ 700 วัตต์ RMS, 1400 วัตต์ Peak, Class-D amplifier
The black RCF NX 45-A is a 15″ 2-way 1400W active loudspeaker designed to offer accurate phase and wide frequency response for DJs, musicians, audio engineers, and rigging technicians in clubs, houses of worship, concert venues, and live stage applications. Its Class-D amplifiers deliver 1400W of power to a 15″ neodymium woofer and 4″ titanium compression driver, yielding a frequency response of 45 Hz to 20 kHz. On-board FirPHASE filters deliver optimum imaging and phase response with minimal latency.
Features:
- 1400 W 2-way class-D amplifier
- 133 dB SPL Max
- 45 – 20000 Hz Frequency Range
- 90° x 50° constant directivity coverage
- 15″ neodymium woofer, 3.5″ voice coil
- Horn loaded 4.0”neodymium c. driver
- Multiple rigging points
Specifications
| Configuration | Active 2-Way |
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | HF: 400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS |
| Amplifier Class | Class-D |
| HF Driver | 1 x 4″ / 101.6 mm Titanium Compression Driver with 1.4″ / 35.6 mm Throat |
| LF Driver | 1 x 15″ / 381 mm Woofer |
| LF Voice Coil | 3.5″ / 88.9 mm |
| Magnet | LF: Neodymium |
| Frequency Response | 45 Hz to 20 kHz |
| Maximum SPL | 133 dB |
| Coverage Angle | 90° H x 50° V |
| Input Sensitivity | +4 dBu / -2 dBu |
| Protections | RMS, Thermal |
| Audio I/O | 1 x XLR 3-Pin Balanced Input 1 x 1/4″ TRS Balanced/Unbalanced Input 1 x XLR 3-Pin Male Balanced Output |
| Crossover | 650 Hz |
| Dynamic Processing | Soft Limiter |
| AC Input Power | Factory Selectable: 115 VAC, 60 Hz (T 6.3 A L 250 V) 230 VAC, 50 Hz (T 3.15 A L 250 V) |
| AC Power Connector | 1 x powerCON Input 1 x powerCON Output |
| Mounting | 5 x M10 2 x (Each Side) 1 x 1.4″ / 35 mm Pole Socket |
| Cooling | Convection |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 27.8 x 16.5 x 15.8″ / 707 x 418 x 402 mm |
| Weight | 54 lb / 24.5 kg |
