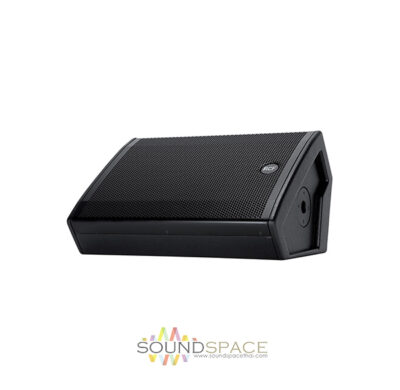

ลำโพงมอนิเตอร์ RCF NX 12-SMA Active Coaxial Stage Monitor
ลำโพงแบบมีกำลังขยายในตัว RCF NX 12-SMA Stage Monitor ขนาดดอกลำโพง 12 นิ้ว Woofer, เสียงแหลมขนาด 1 นิ้ว, 60° x 60° constant directivity horn, มีกำลังขับ 1400 วัตต์ Peak, 700 วัตต์ RMS digital bi-amplification
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿104,380.00
Description
RCF NX 12-SMA Active Stage Monitor Speaker 15″
ลำโพงแบบมีกำลังขยายในตัว RCF NX 12-SMA Stage Monitor ขนาดดอกลำโพง 12 นิ้ว Woofer, เสียงแหลมขนาด 1 นิ้ว, 60° x 60° constant directivity horn, มีกำลังขับ 1400 วัตต์ Peak, 700 วัตต์ RMS digital bi-amplification
The NX 12-SMA Active Coaxial Stage Monitor from RCF is a powered monitor that can be used as either a floor monitor or mounted for use as a stand-alone PA for small venues. It is capable of up to 800-watts peak performance, providing output up to 129 dB SPL.
The monitor has integrated DSP for limiting functions as well as a switchable EQ mode that provides optimized performance for stage monitoring or PA applications.
Features:
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 129 dB max spl
- 60° x 60° constant directivity horn
- 12″ High power neodymium woofer, 2.5″ voice coil
- 1.7″ kapton dome, 1″ exit, neodymium high frequency driver
- DSP processing, floor – fre field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output
Specifications
| Configuration | Active |
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | HF: 400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS |
| HF Driver | 1 x 1.7″ / 43 mm Polyimide Dome Compression Driver with 1″ / 25 mm Throat |
| LF Driver | 1 x 12″ / 305 mm Woofer |
| LF Voice Coil | 2.5″ / 63.5 mm |
| Magnet | HF: Neodymium LF: Neodymium |
| Frequency Response | 50 Hz to 20 kHz -3 dB |
| Maximum SPL | 129 dB |
| Coverage Angle | 60° H x 60° V |
| Audio I/O | 1 x XLR 3-Pin Balanced Input 1 x 1/4″ TRS Balanced/Unbalanced Input 1 x XLR 3-Pin Male Balanced Output |
| Dynamic Processing | Soft Limiter |
| Mounting | 1 x Pole Socket |
| Handles | 1 x Side |
| Construction Material | Metal Grille, Wood |
| Dimensions | 12.7 x 21.6 x 16.4″ / 324 x 550 x 417 mm |
| Weight | 36.3 lb / 16.5 kg |
