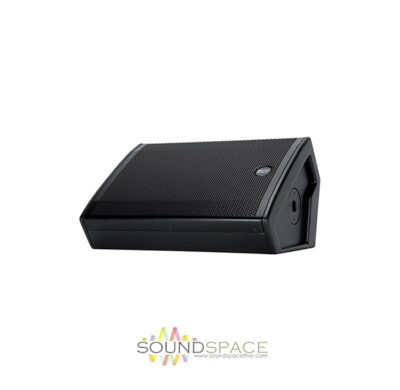

ลำโพงมอนิเตอร์ RCF NX 10-SMA Active Coaxial Stage Monitor
ลำโพงแบบมีกำลังขยายในตัว RCF NX 10-SMA Stage Monitor ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1 นิ้ว, 60° x 60° constant directivity horn, มีกำลังขับ 800 วัตต์ Peak, 400 วัตต์ RMS digital bi-amplification
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿78,610.00
Description
RCF NX 10-SMA Active Stage Monitor Speaker 15″
ลำโพงแบบมีกำลังขยายในตัว RCF NX 10-SMA Stage Monitor ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1 นิ้ว, 60° x 60° constant directivity horn, มีกำลังขับ 800 วัตต์ Peak, 400 วัตต์ RMS digital bi-amplification
The NX 10-SMA Active Coaxial Stage Monitor from RCF is a powered monitor that can be used as either a floor monitor or mounted for use as a stand-alone PA for small venues. It is capable of up to 800-watts peak performance, providing output up to 127dB SPL.
The monitor has integrated DSP for limiting functions as well as a switchable EQ mode that provides optimized performance for stage monitoring or PA applications.
Features:
- 800 Watt Peak, 400 Watt RMS digital bi-amplification
- 127 dB max spl
- 60° x 60° constant directivity horn
- 10″ High power neodymium woofer, 2.5″ voice coil
- 1.7 kapton dome, 1″ exit, neodymium high frequency driver
- DSP processing, floor – free field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output
Specifications
| Configuration | Active |
| Total Power Capacity | 800 W Peak 400 W RMS |
| Amplifier Power Rating | HF: 200 W Peak 100 W RMS LF: 600 W Peak 300 W RMS |
| HF Driver | 1 x 1.7″ / 43 mm Polyimide Dome Compression Driver with 1″ / 25 mm Throat |
| LF Driver | 1 x 10″ / 254 mm Woofer |
| LF Voice Coil | 2.5″ / 63.5 mm |
| Magnet | HF: Neodymium LF: Neodymium |
| Frequency Response | 60 Hz to 20 kHz -3 dB |
| Maximum SPL | 127 dB |
| Coverage Angle | 60° H x 60° V |
| Audio I/O | 1 x XLR 3-Pin Balanced Input 1 x 1/4″ TRS Balanced/Unbalanced Input 1 x XLR 3-Pin Male Balanced Output |
| Dynamic Processing | Soft Limiter |
