ลำโพงซับเบส RCF HDL35-AS Active Flyable Subwoofer Module
ลำโพงซับเบสไลน์อาเรย์ Active มีกำลังขยายในตัว RCF HDL35-AS มีขนาดดอกลำโพง 15 นิ้ว Neodymium Woofer 4.0 นิ้ว voice coil, 2200W peak class-D Amplifier, 40-140 Hz frequency response, RDNet Networked Management, For Use with HDL 26-A Array System
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿216,480.00
Description
RCF HDL35-AS Active Flyable Subwoofer Module 15″
ลำโพงซับเบสไลน์อาเรย์ Active มีกำลังขยายในตัว RCF HDL35-AS มีขนาดดอกลำโพง 15 นิ้ว Neodymium Woofer 4.0 นิ้ว voice coil, 2200W peak class-D Amplifier, 40-140 Hz frequency response, RDNet Networked Management, For Use with HDL 26-A Array System

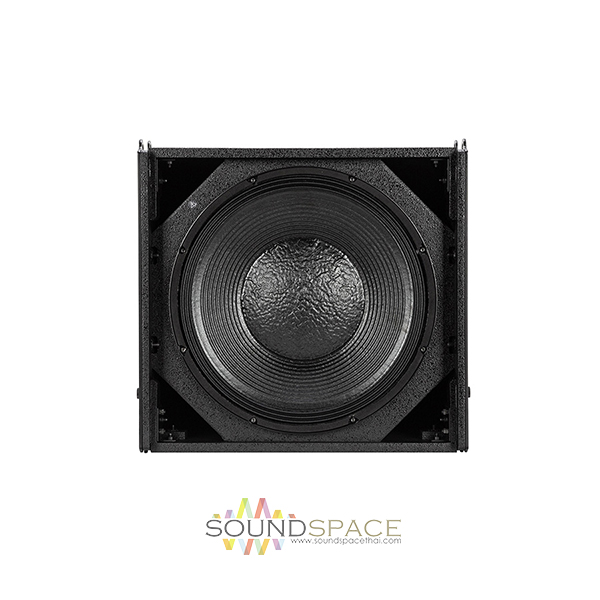

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0” voice coil, 15” Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion.
The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet – remote monitoring and control, the HDL 35-AS is part of the professional HDL System.
Features:
- 134 dB Max SPL
- 2200W Class-D Amplifier
- 40-140 Hz frequency response
- RDNet Networked Management
- 1×15” Neodymium Woofer, 4.0” voice coil
Specifications
| Configuration | Active Subwoofer |
| Enclosure Type | Line Array Subwoofer |
| Total Power Capacity | 2200 W Peak 1100 W RMS |
| Amplifier Power Rating | 2200 W Peak 1100 W RMS |
| Amplifier Class | Class-D |
| MF Driver | None |
| LF Driver | 1 x 15″ / 38.1 cm Woofer |
| LF Voice Coil | 4″ / 10.2 cm |
| Magnet | Neodymium |
| Frequency Response | 40 Hz to 140 Hz |
| Maximum SPL | 134 dB |
| Input Sensitivity | +4 dBu |
| Protections | Output Limiter, Thermal |

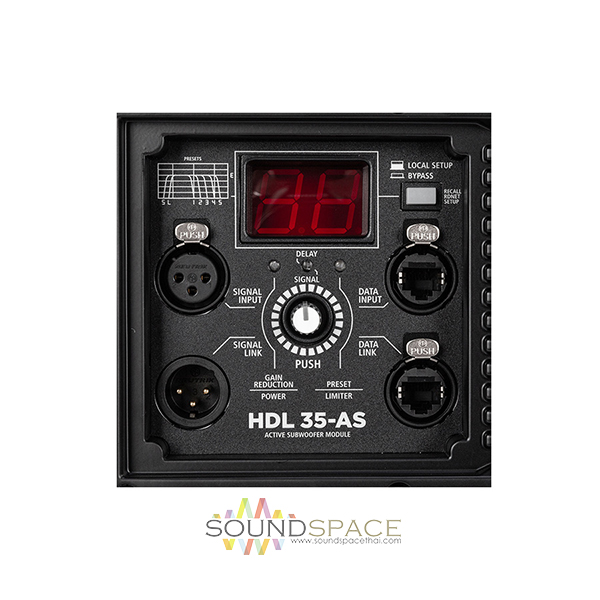

| Audio I/O | 1 x XLR 3-Pin Female Balanced/Unbalanced Line Input (Lockable) 1 x XLR 3-Pin Male Balanced/Unbalanced Line Thru |
| Network I/O | 1 x etherCON (RDNet) Input 1 x etherCON (RDNet) Output |
| USB | None |
| Wireless Connectivity | None |
| EQ | Yes |
| Parametric EQ | Yes |
| Semi-Parametric EQ | None |
| Alignment Delay | Yes |
| Phase Adjustment | Yes |
| Digital Signal Processing | Delay, FIR Filter, User Settings |
| AC Input Power | 115 VAC, 60 Hz 230 VAC, 50 Hz |
| AC Power Connector | 1 x powerCON Input (Locking) 1 x powerCON Output (Locking) |
| Mounting | 1 x Bracket Point (Each Side) 1 x Bracket Point (Rear) |
| Handles | 1 x Each Side |
| Cooling | Convection |
| Construction Material | Metal Grille, Plywood |
| Certifications | CE, as per Manufacturer |
| Dimensions | 17.5 x 17.9 x 20″ / 44.4 x 45.6 x 50.8 cm |
| Weight | 66.1 lb / 30 kg |
