ลำโพงไลน์อาเรย์ RCF HDL20-A Active Line Array Module
ตู้ลำโพงไลน์อาเรย์ Active มีกำลังขยายในตัว RCF HDL 20-A ขนาดดอกลำโพง Woofers 10 นิ้ว 2 ดอก, มีกำลังขับ 700 วัตต์ RMS 1400 วัตต์ Peak, DSP Controlled Input Section With Selectable Presets, Tour grade safe and solid variable mechanics
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…
฿170,100.00
Description

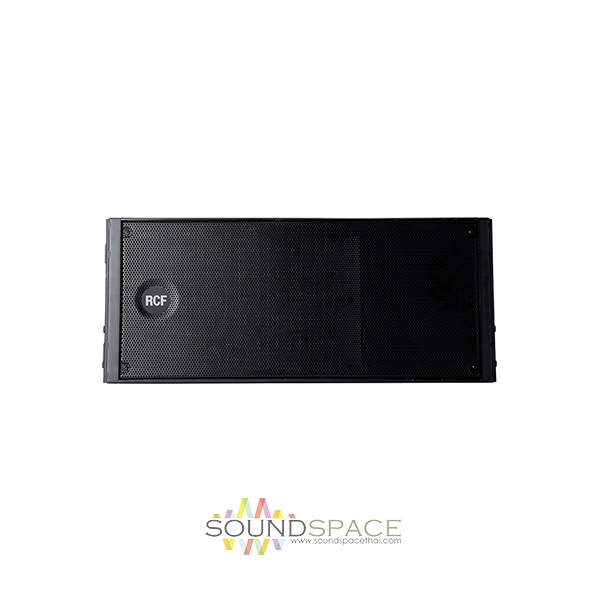

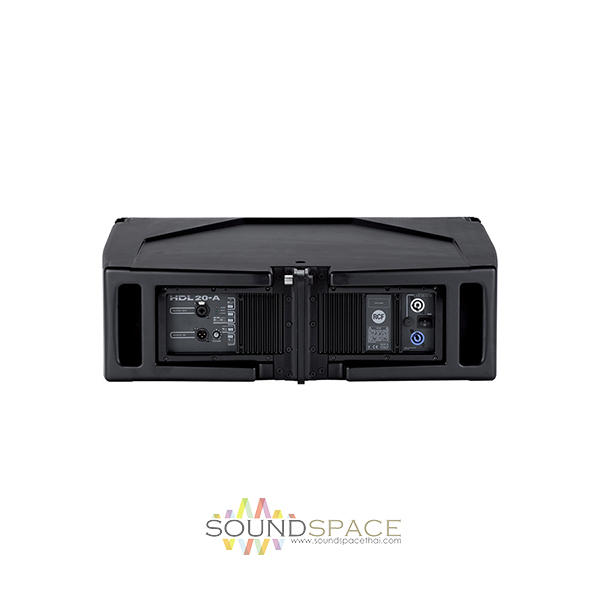

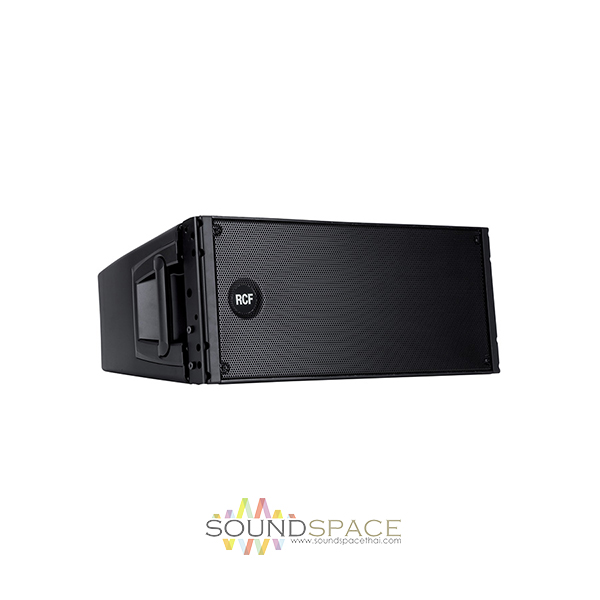

RCF HDL20-A Active 2-Way Line Array Module
ตู้ลำโพงไลน์อาเรย์ Active มีกำลังขยายในตัว RCF HDL 20-A ขนาดดอกลำโพง Woofers 10 นิ้ว 2 ดอก, มีกำลังขับ 700 วัตต์ RMS 1400 วัตต์ Peak, DSP Controlled Input Section With Selectable Presets, Tour grade safe and solid variable mechanics
The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations.
The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.
The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic.
The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.
Features:
- 1400 Watt Peak power – 700 Watt RMS
- 135 dB max SPL
- 55 Hz 20 kHz frequency response
- 2 x 10″ Woofers
- 1 x 3″ Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Specifications
| Frequency Response | 55 Hz – 20 kHz |
| Maximum SPL | 135 dB |
| Horizontal Coverage Angle | 100° |
| Vertical Coverage Angle | 15° |
| Compression Driver | 2.0″ (5.1 cm) with 3.0″ (7.6 cm) voice coil |
| Woofer | 2 x 10.0″ (25.4 cm) with 2.5″ (6.4 cm) voice coil |
| Input Connectors | XLR-Jack combo |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Crossover Frequencies | 800 Hz |
| Protection | Thermal, RMS |
| Limiter | Soft limiter |

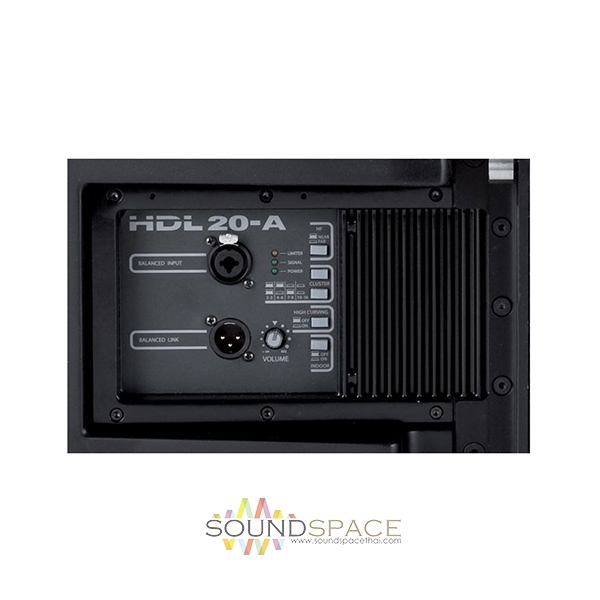

| Controls | Cluster, HF, high curving, indoor |
| Peak Power | Total: 1400 W High Frequencies: 400 W Low Frequencies: 1000 W |
| RMS Power | Total: 700 W High Frequencies: 200 W Low Frequencies: 500 W |
| Cooling | Convection |
| Other Connectors | PowerCON in/out VDE connector input |
| Material | Composite PP, wooden reinforced |
| Hardware | Rigging flyware |
| Handles | 2 side |
| Dimensions | 11.5 x 27.7 x 17.5″ (29.4 x 70.5 x 44.5 cm) |
| Weight | 63.9 lb (29.0 kg) |
